Fuse: Locations

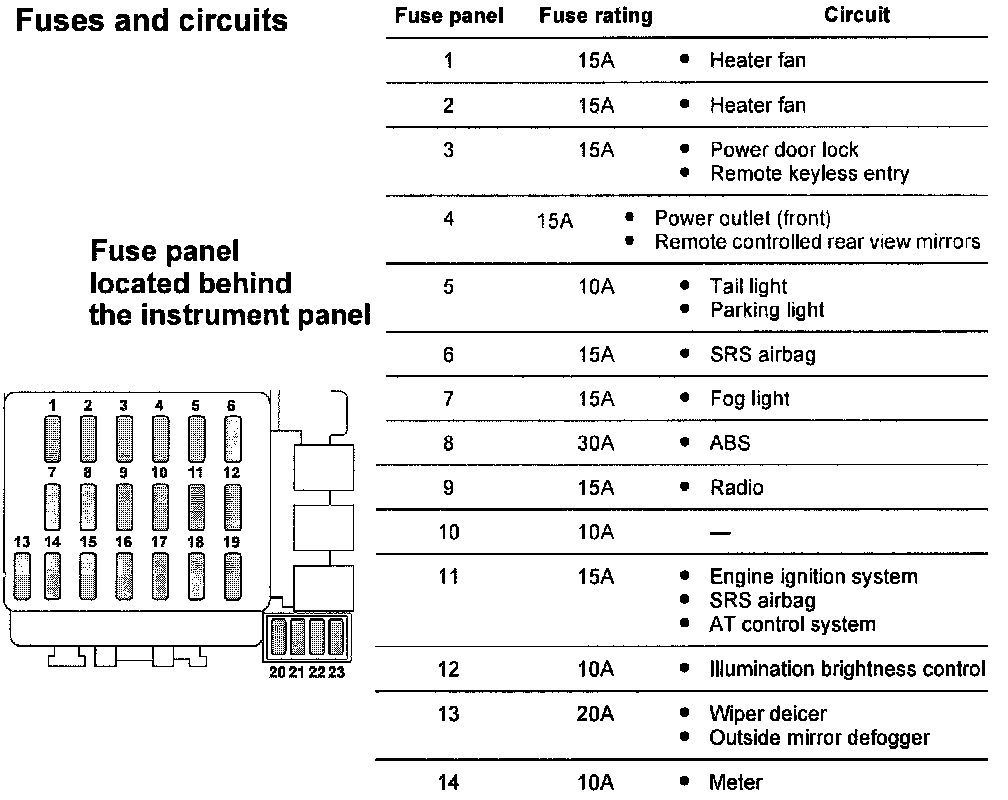

Fuse Panel Located Behind Instrument Panel:



Fuse Circuit Description(continued):



Fuse Pane Located In Engine Compartment:
