Communication for Initializing Impossible

Diagnostic Procedure for Subaru Select Monitor Communication

COMMUNICATION FOR INITIALIZING IMPOSSIBLE
DIAGNOSIS: Defective harness connector
TROUBLE SYMPTOM: Subaru Select Monitor communication failure

WIRING DIAGRAM:




Step 1:

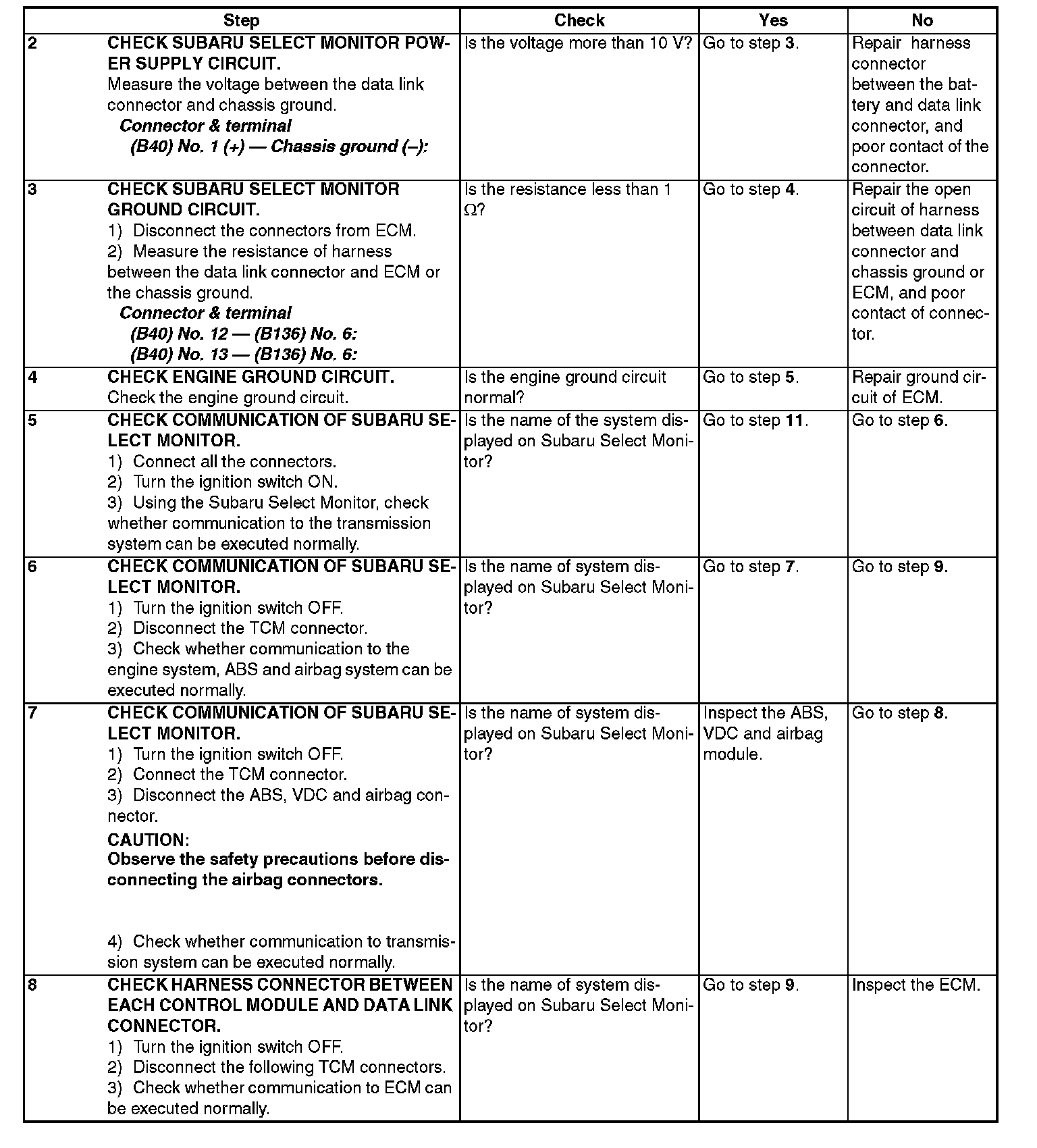

Step 2-Step 8:

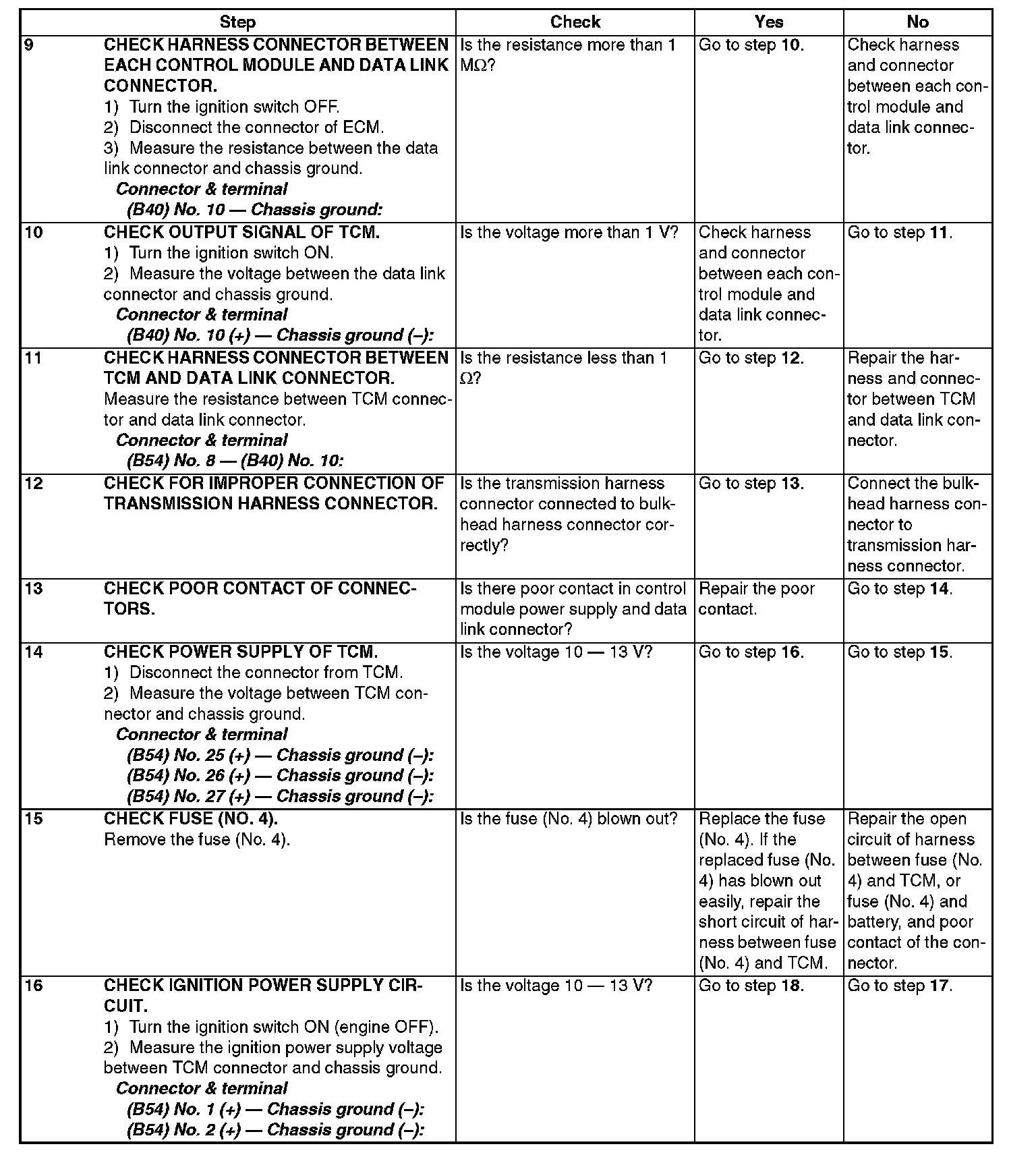

Step 9-Step 16:

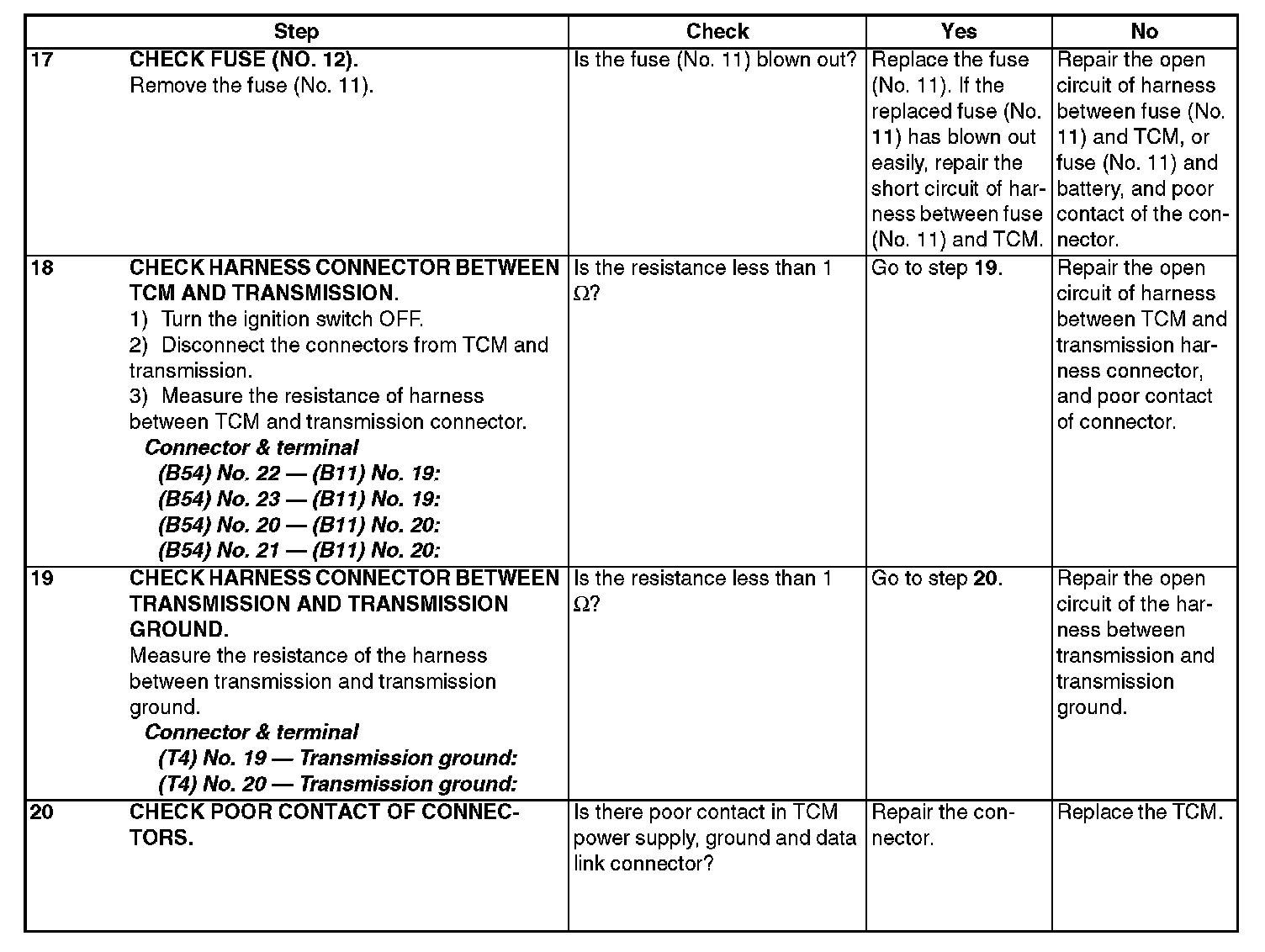

Step 17-Step 20:
