Rear Structure

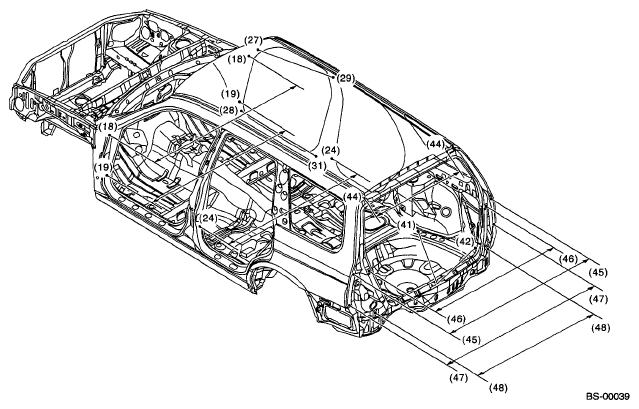

REAR STRUCTURE DIMENSION SPECIFICATION
| Unit: mm (in) | |||
|---|---|---|---|
| Point of measurement | Dimension | Point of measurement | Dimension |
| (18) RH to (18) LH | 1,449 (57.05) | (41) RH to (43) RH | 794 (31.26) |
| (19) RH to (19) LH | 1,459 (57.44) | (41) LH to (43) LH | 805 (31.69) |
| (27) RH to (29) RH | 1,007 (39.65) | (42) RH to (42) LH | 1,110 (43.70) |
| (27) LH to (29) LH | 1,007 (39.65) | (44) RH to (44) LH | 878 (34.57) |
| (28) RH to (31) RH | 813 (32.01) | (45) RH to (45) LH | 1,474 (58.03) |
| (28) LH to (31) LH | 813 (32.01) | (46) RH to (46) LH | 1,252 (49.29) |
| (24) RH to (24) LH | 1,438 (56.61) | (47) RH to (47) LH | 1,552 (61.10) |
| (41) RH to (41) LH | 950 (37.40) | (48) RH to (48) LH | 1,210 (47.64) |
