Control Valve And Harness Routing

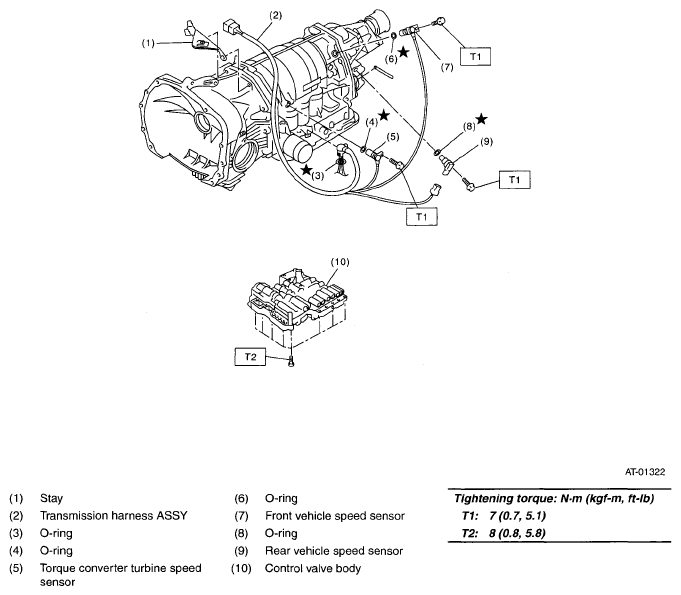

Fig 1: Control Valve And Harness Routing Replacement Components With Torque Specifications
G05326482Courtesy of SUBARU OF AMERICA, INC.
