Front Structure

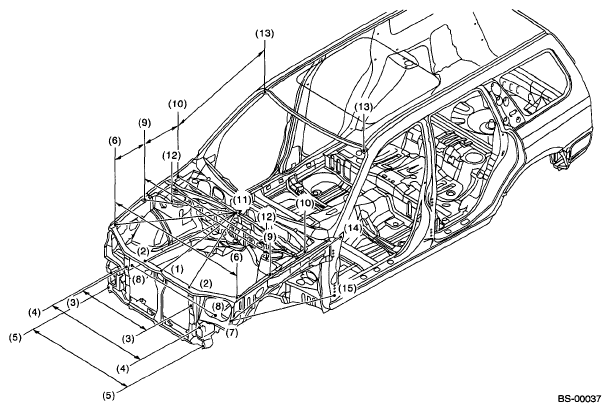

Fig 1: Identifying Front Structure Dimension (1 Of 2)
G04995418Courtesy of SUBARU OF AMERICA, INC.
FRONT STRUCTURE DIMENSION SPECIFICATION

Unit: mm (in)
Point of measurement Dimension Point of measurement Dimension
(1) to (11) 822 (32.36) (7)LH to (15) LH 1,092 (42.99)
(2) RH to (11) 842 (33.15) (8) RH to (8) LH 921 (36.26)
(2) LH to (11) 875 (34.45) (9) RH to (9) LH 1,396 (54.96)
(3) RH to (3) LH 716 (28.19) (9) RH to (10) RH 398 (15.67)
(4) RH to (4) LH 978 (38.50) (9) LH to (10) LH 398 (15.67)
(5) RH to (5) LH 1,049 (41.30) (9) RH to (11) 767 (30.20)
(6) RH to (6) LH 1,341 (52.80) (9) LH to (11) 767 (30.20)
(6) RH to (9) RH 349 (13.74) (10) RH to (11) 722 (28.43)
(6) LH to (9) LH 349 (13.74) (10) LH to (11) 722 (28.43)
(6) RH to (11) 944 (37.17) (10) RH to (13) RH 907 (35.71)
(6) LH to (11) 944 (37.17) (10) LH to (13) LH 907 (35.71)
(7) RH to (14) RH 1,184 (46.61) (11) to (12) RH 565 (22.24)
(7) LH to (14) LH 1,184 (46.61) (11) to (12) LH 565 (22.24)
(7) RH to (15) RH 1,092 (42.99) (12) RH to (12) LH 1,065 (41.93)

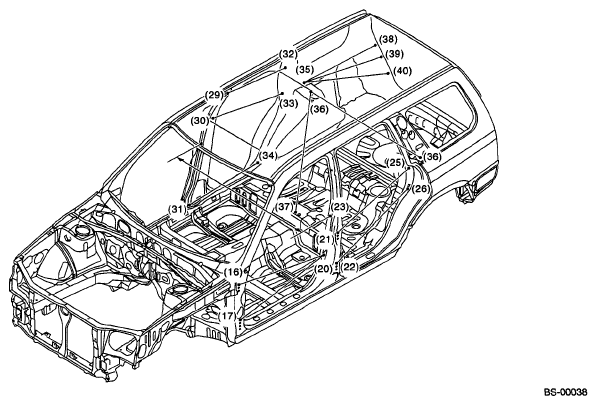

Fig 2: Identifying Front Structure Dimension (2 Of 2)
G04995419Courtesy of SUBARU OF AMERICA, INC.
FRONT STRUCTURE DIMENSION SPECIFICATION

Unit: mm (in)
Point of measurement Dimension Point of measurement Dimension
(16) RH to (20) RH 980 (38.58) (30) LH to (33) LH 796 (31.34)
(16) LH to (20) LH 980 (38.58) (31) RH to (34) RH 759 (29.88)
(17) RH to (20) RH 982 (38.66) (31) LH to (34) LH 759 (29.88)
(17) LH to (20) LH 982 (38.66) (35) RH to (38) RH 665 (26.18)
(21) RH to (25) RH 853 (33.58) (35) LH to (38) LH 665 (26.18)
(21) LH to (25) LH 853 (33.58) (35) RH to (39) RH 711 (27.99)
(22) RH to (26) RH 895 (35.24) (35) LH to (39) LH 711 (27.99)
(22) LH to (26) LH 895 (35.24) (35) RH to (40) RH 784 (30.87)
(23) LH to (23) RH 1,429 (56.26) (35) LH to (40) LH 784 (30.87)
(29) RH to (32) RH 674 (26.54) (36) LH to (36) RH 1,221 (48.07)
(29) LH to (32) LH 674 (26.54) (36) RH to (37) RH 1,067(42.01)
(30) RH to (33) RH 796 (31.34) (36) LH to (37) LH 1,067(42.01)
