Components With Torque Specifications

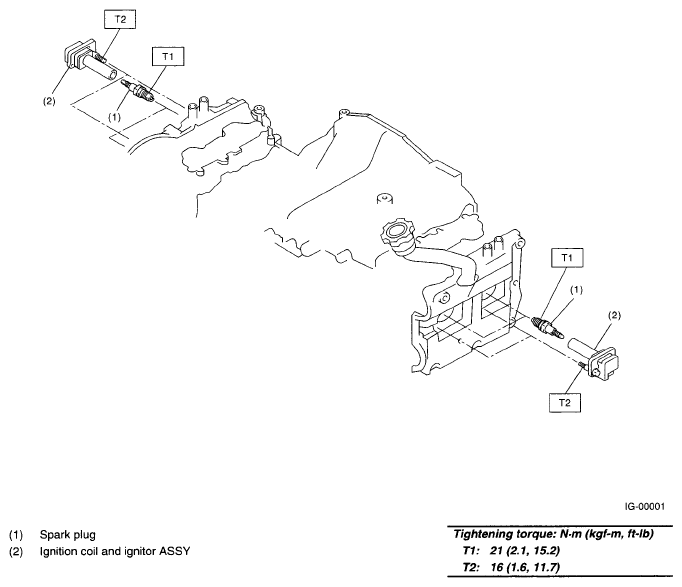

Fig 1: Spark Plug, Ignition Coil And Ignitor ASSY With Torque Specification
G04993886Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)
