Accelerator Pedal: Removal

  1. Disconnect the ground cable from battery.
  2. Disconnect the connector (A).
  3. Remove the bolt (B) securing accelerator pedal assembly.

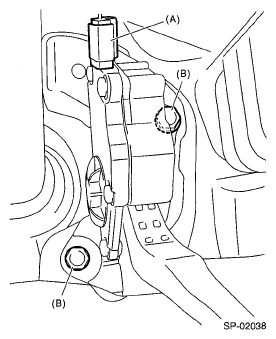

    Fig 1: Identifying Accelerator Pedal Assembly Bolt
    G04997918
