• STI model

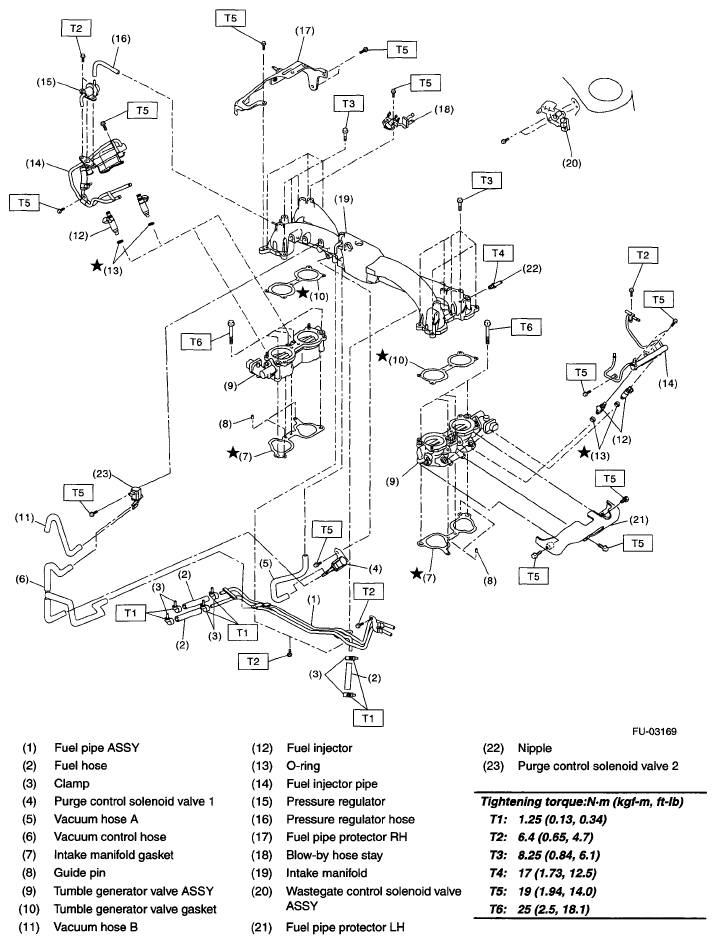

Fig 1: Intake Manifold Replacement Components (STI Model) With Torque Specifications
G05333442Courtesy of SUBARU OF AMERICA, INC.
