Starter Motor: Testing and Inspection

STARTER MOTOR CIRCUIT

CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode and Inspection Mode.

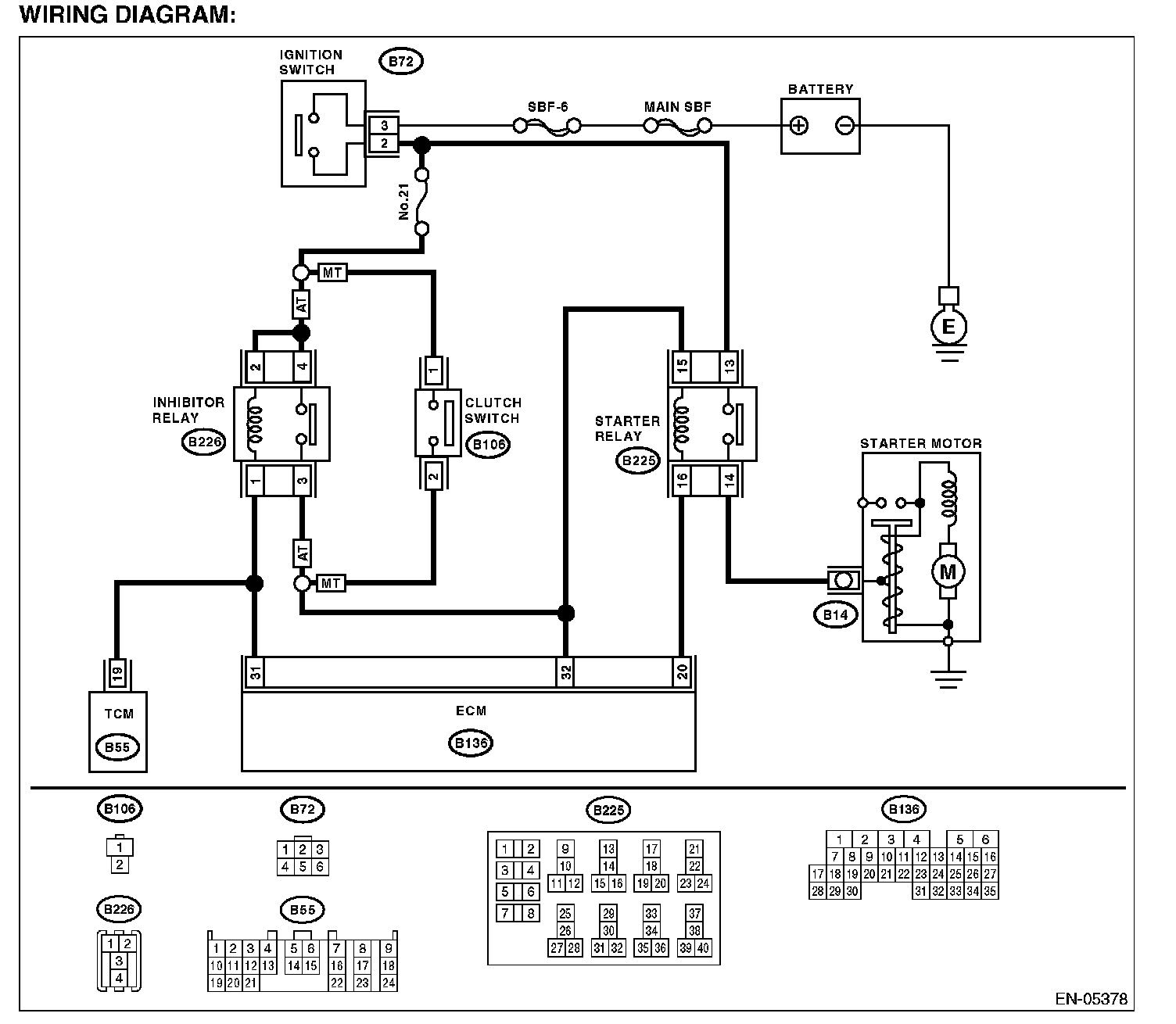

Wiring Diagram:

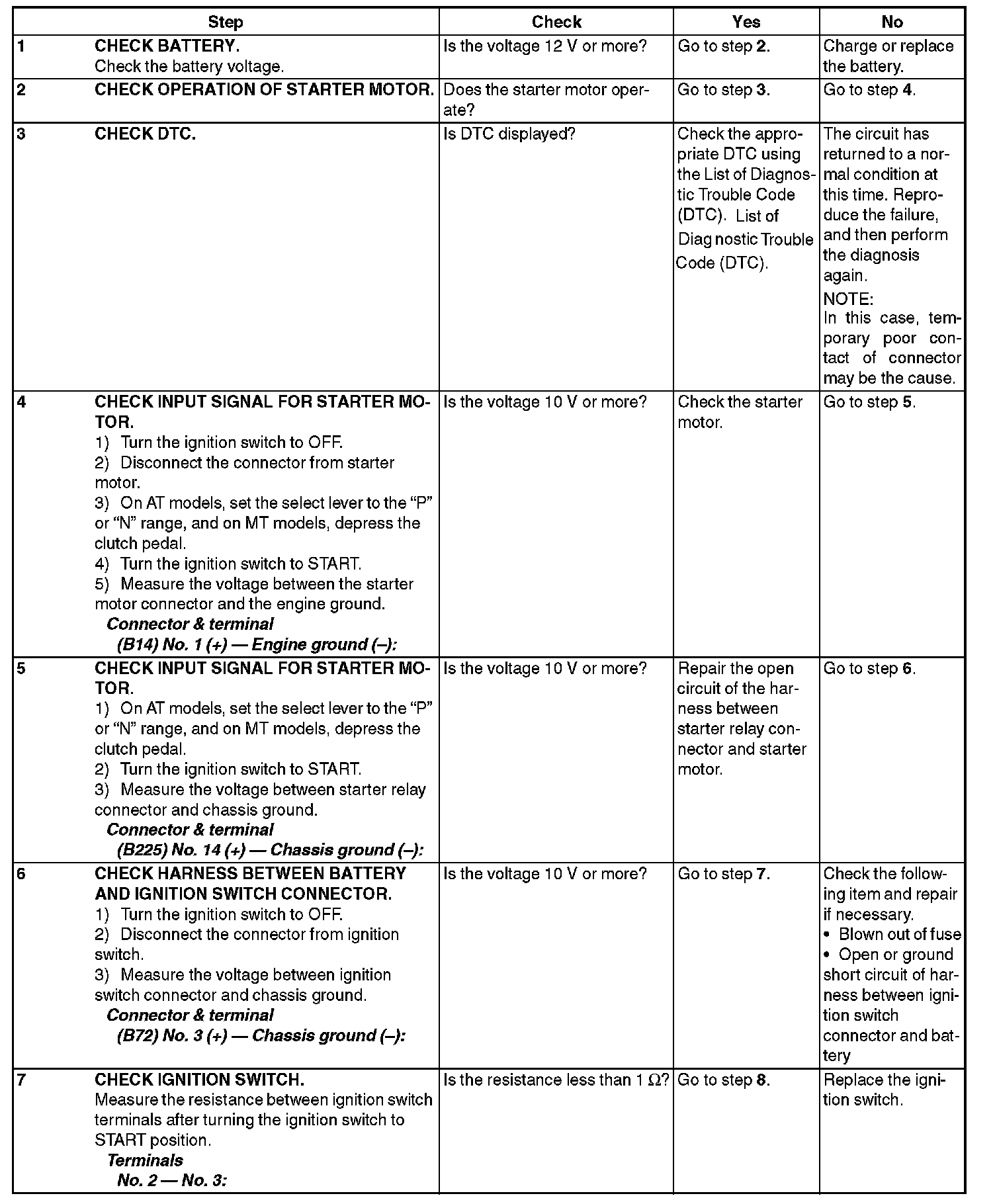

Step 1-7:

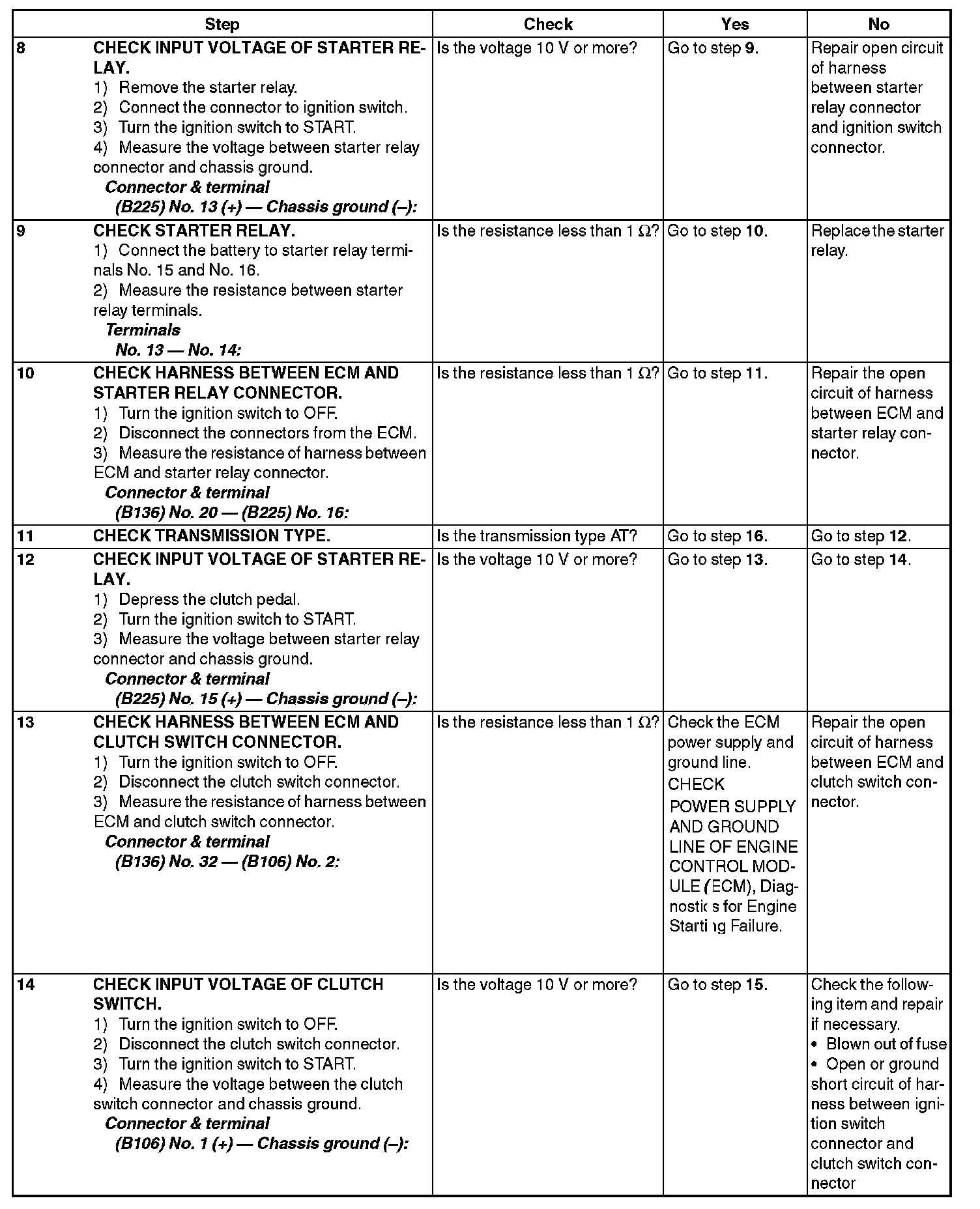

Step 8-14:

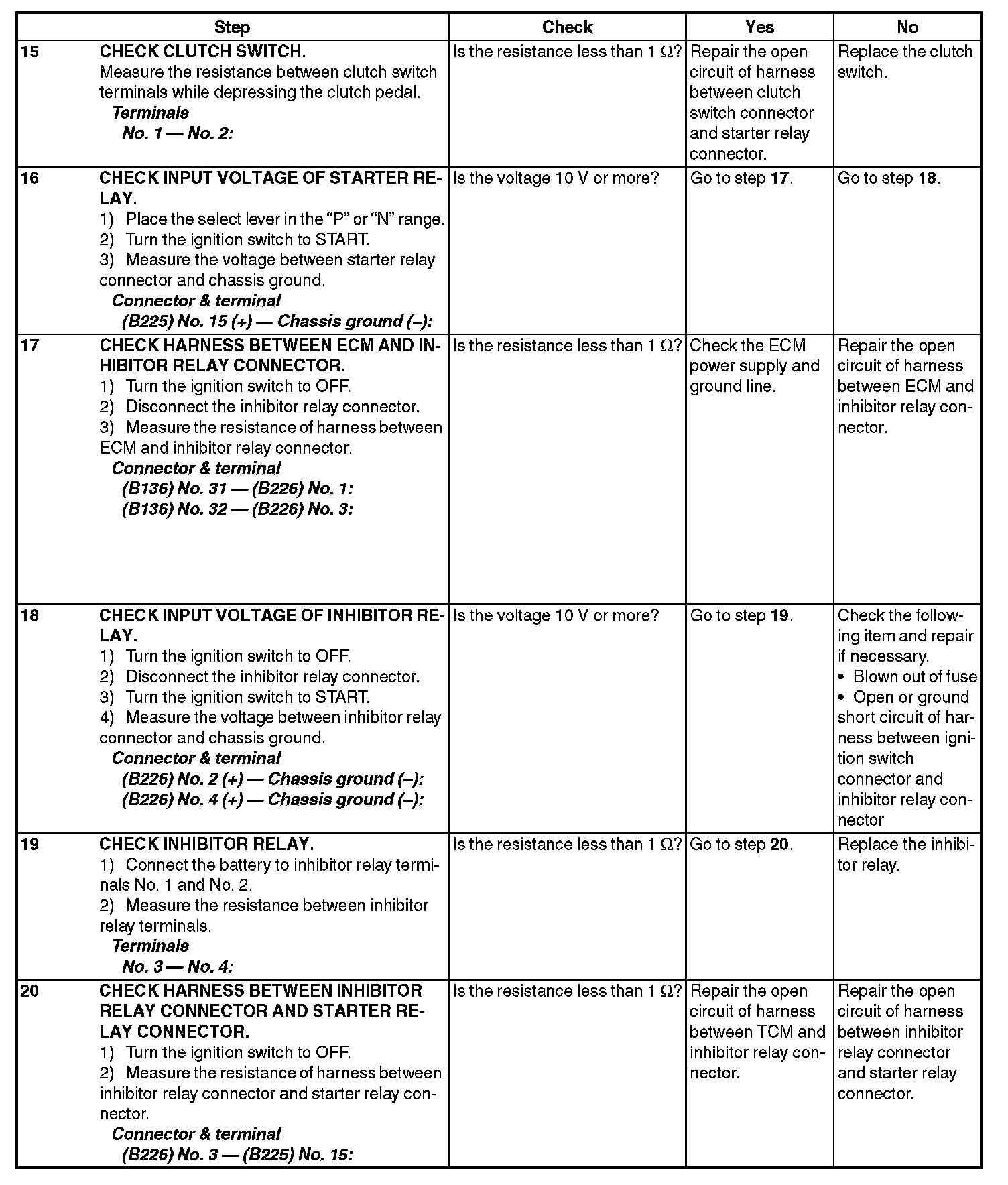

Step 15-20:
