Pinout Values and Diagnostic Parameters

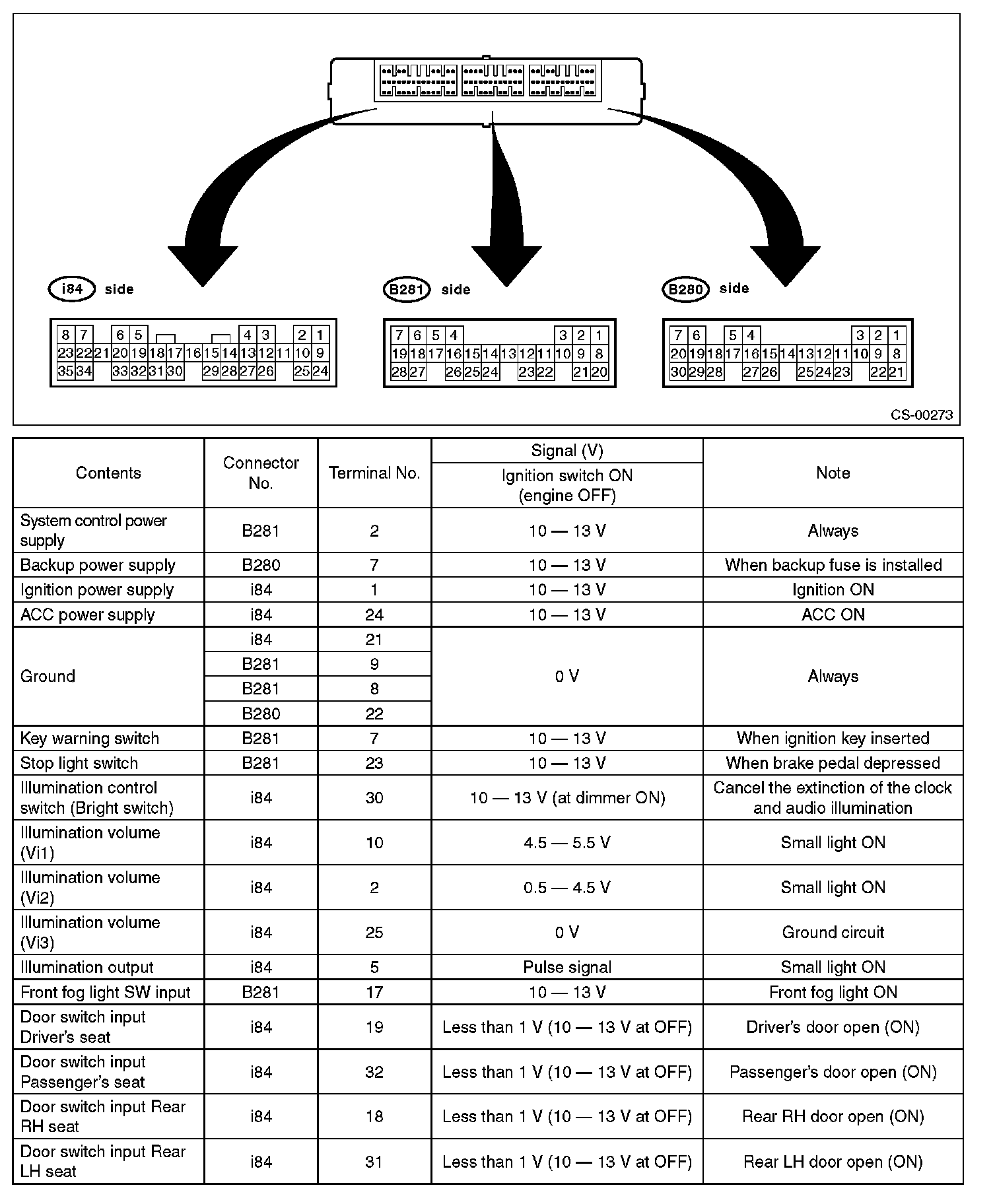

Electrical Specification (Part 1):

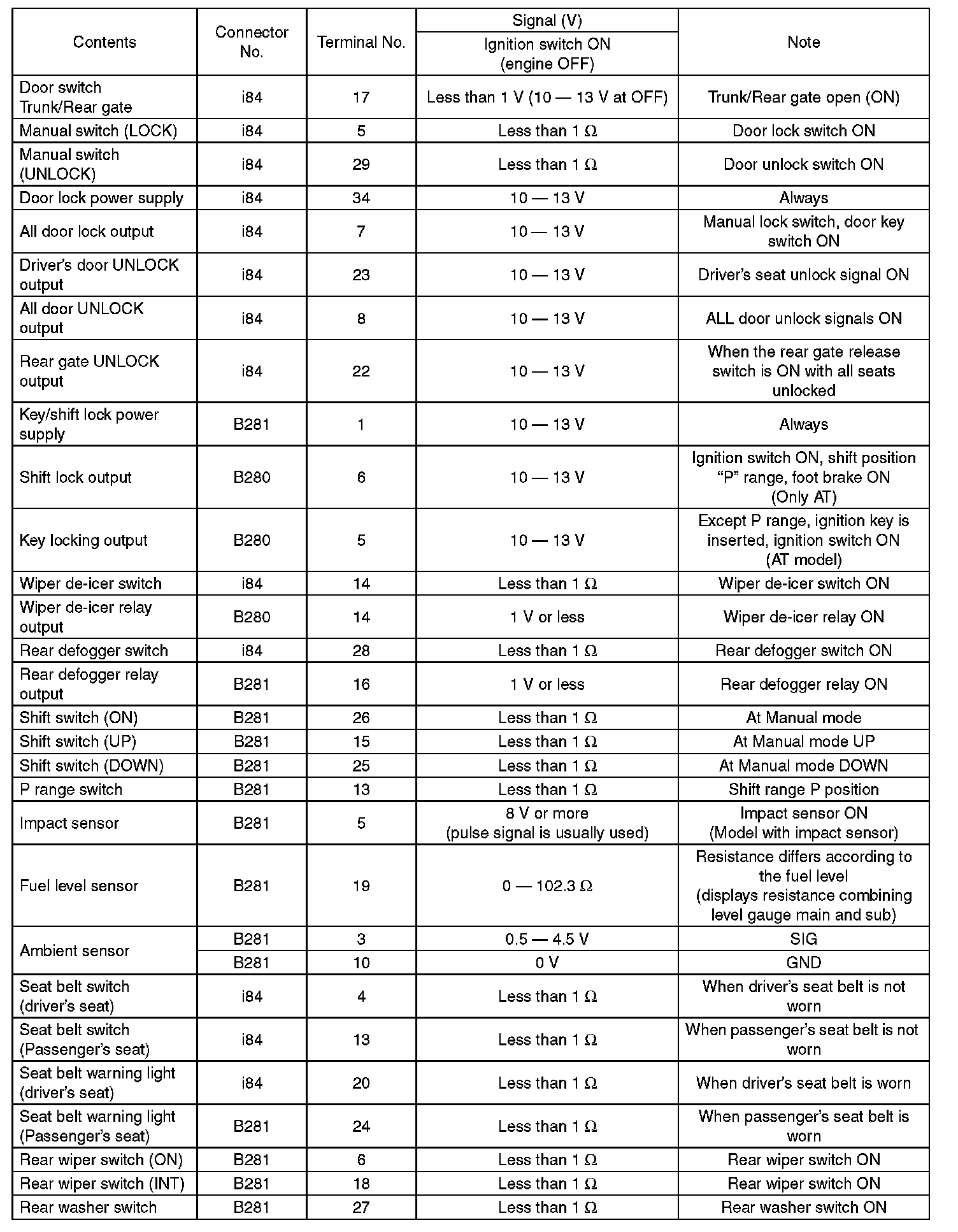

Electrical Specification (Part 2):

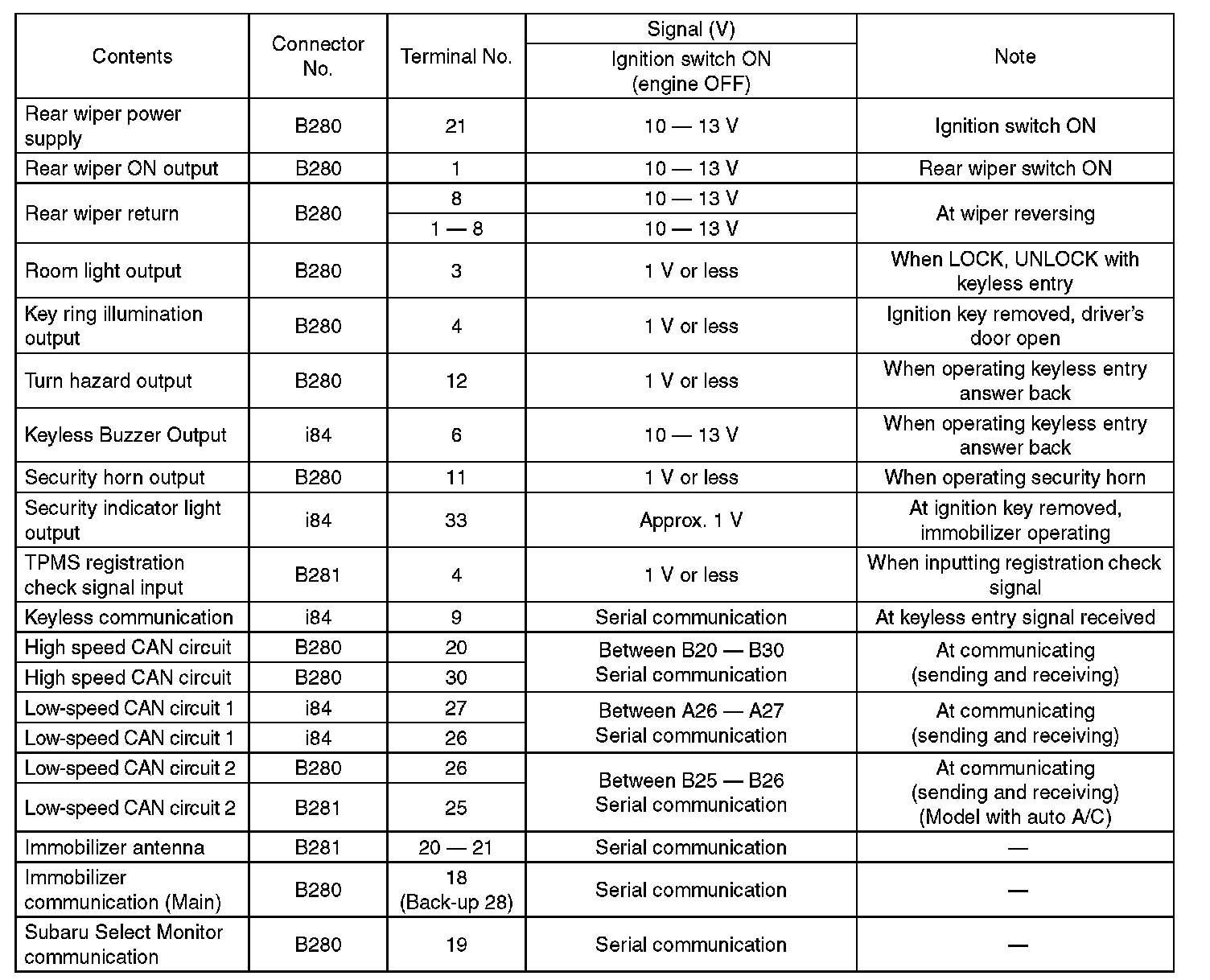

Electrical Specification (Part 3):
