Console Box

CONSOLE BOX

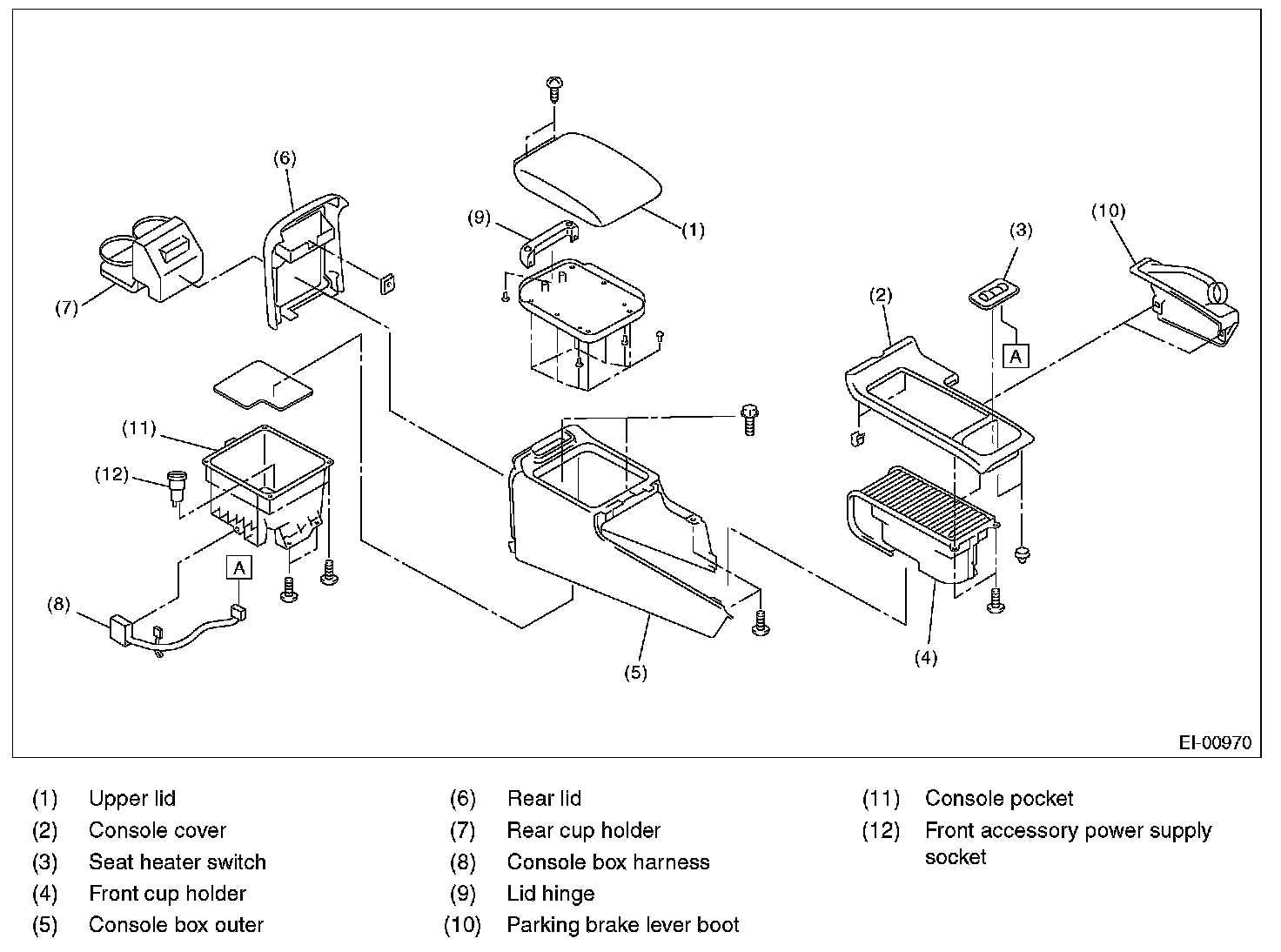

Console Box:

REMOVAL

1. Disconnect the ground cable from battery.
2. Remove the parking brake lever cover.






3. Remove the bolts and clips.






4. Disconnect the connector, and remove the console box.

INSTALLATION

Install in the reverse order of removal.
