Ambient Sensor (Auto A/C Model)

Ambient Sensor (Auto A/C Model)

INSPECTION

TROUBLE SYMPTOM:
Fan speed is not switched when the fan speed control dial is in AUTO position.

WIRING DIAGRAM:

Wiring Diagram:

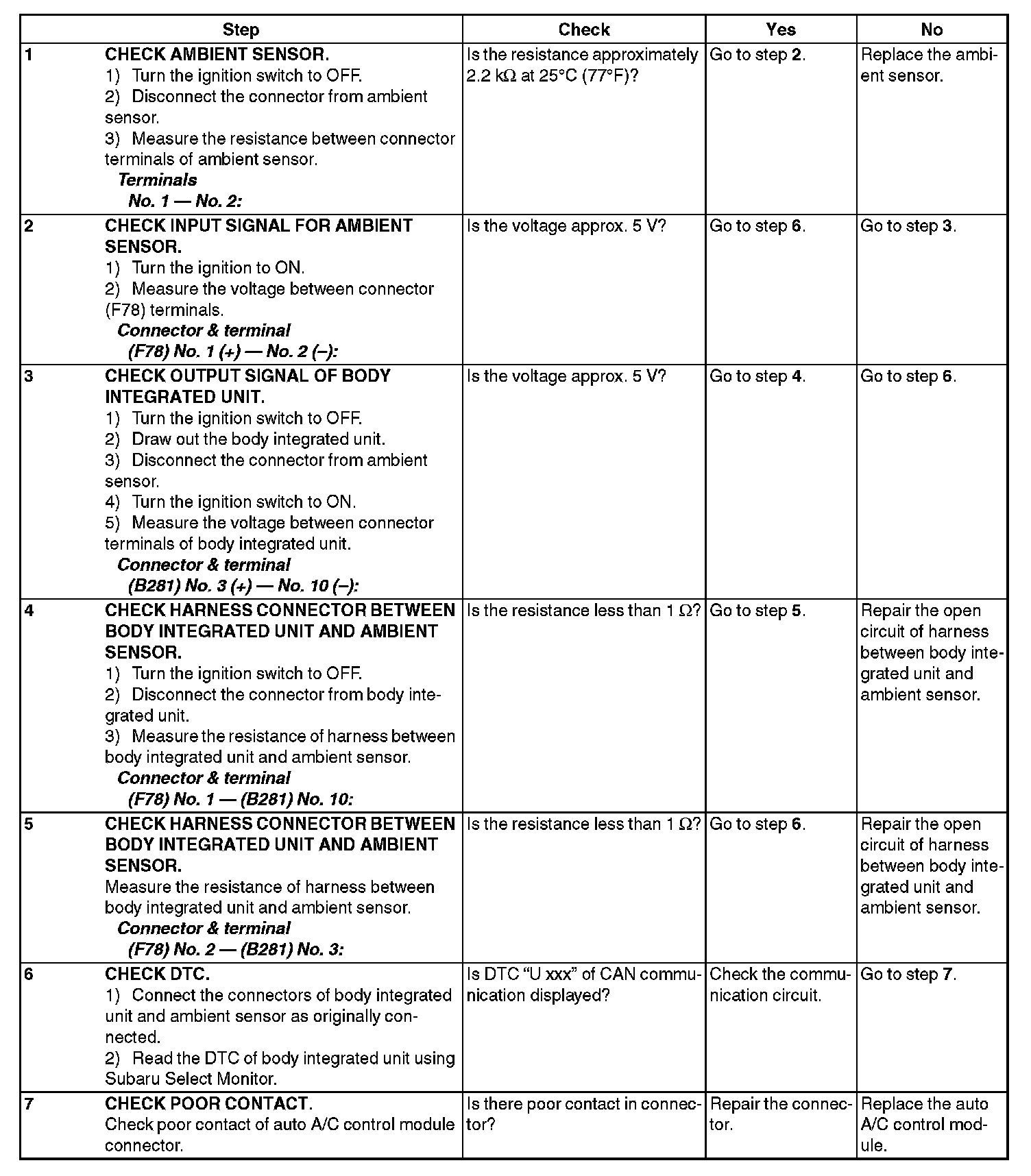

Step 1-7:
