Home >> Subaru >> 2007 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> Locations >> Connector Locations >> D2-D125
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

D2-D125

Door Cord

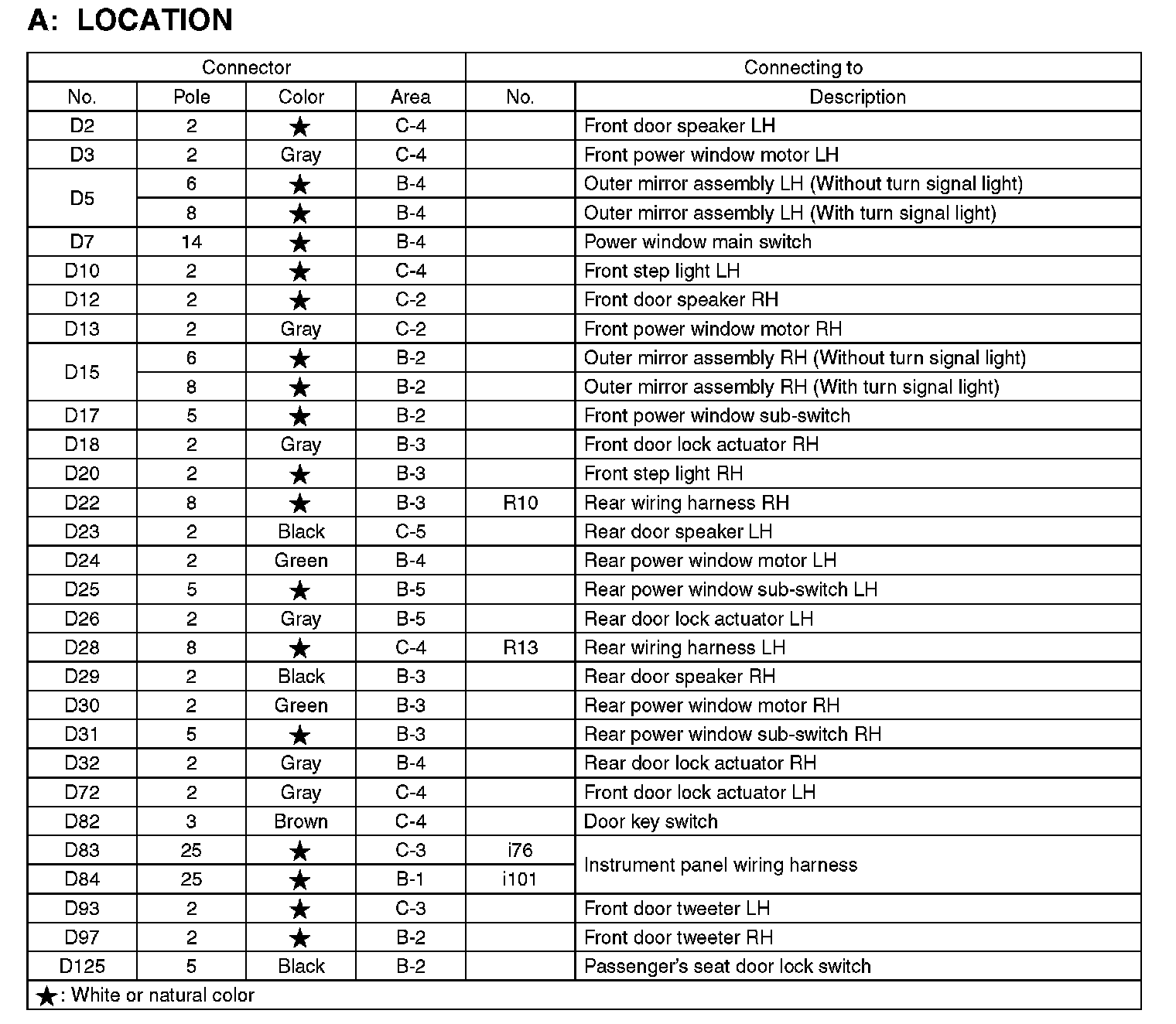

D2-D125:

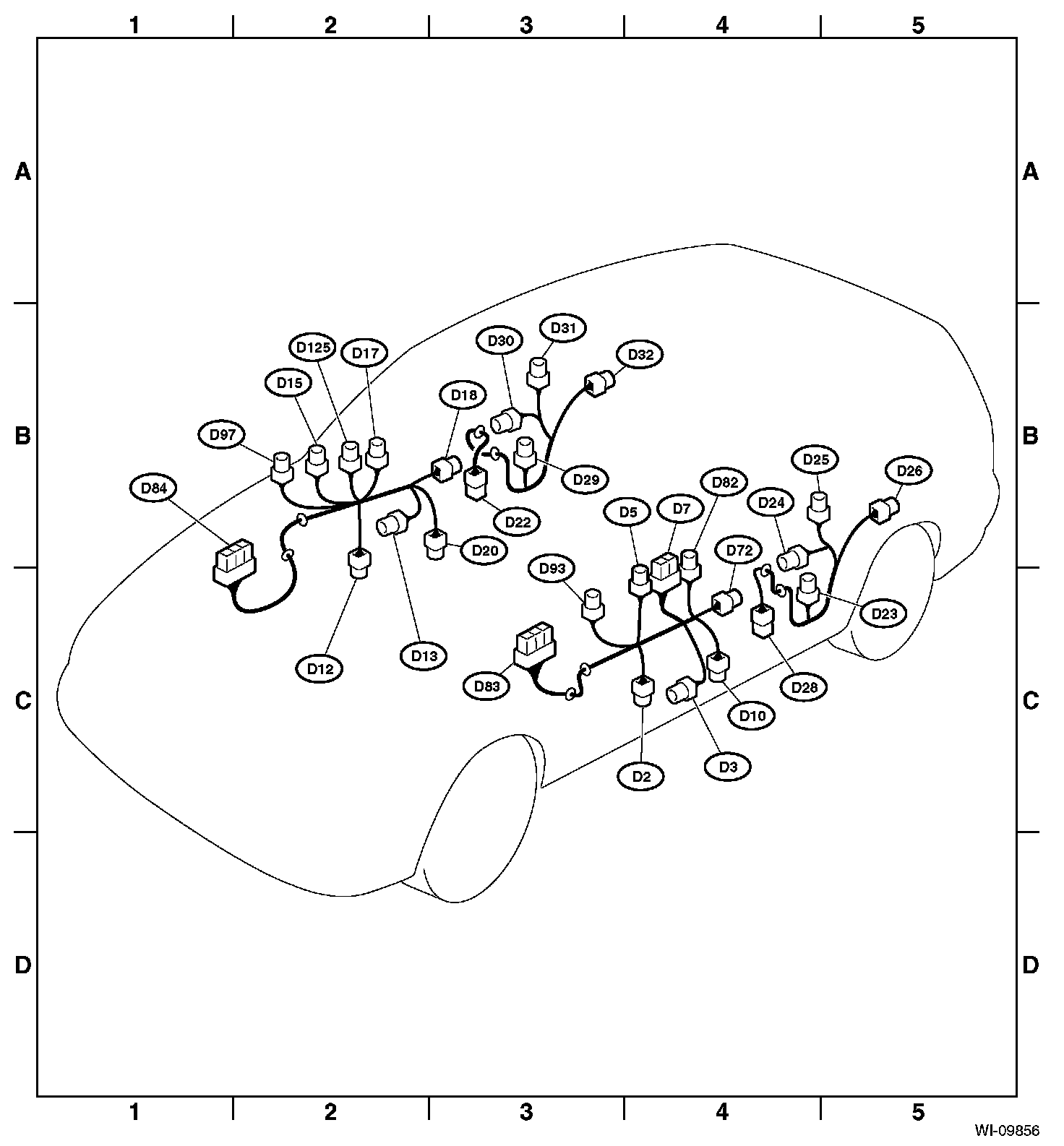

Area View:
