Fuel Injector Circuit

FUEL INJECTOR CIRCUIT

CAUTION:
- Check or repair only faulty parts.
- After repairing or replacing the defective part, perform the Clear Memory Mode and Inspection Mode.

Wiring Diagram:






Step 1:

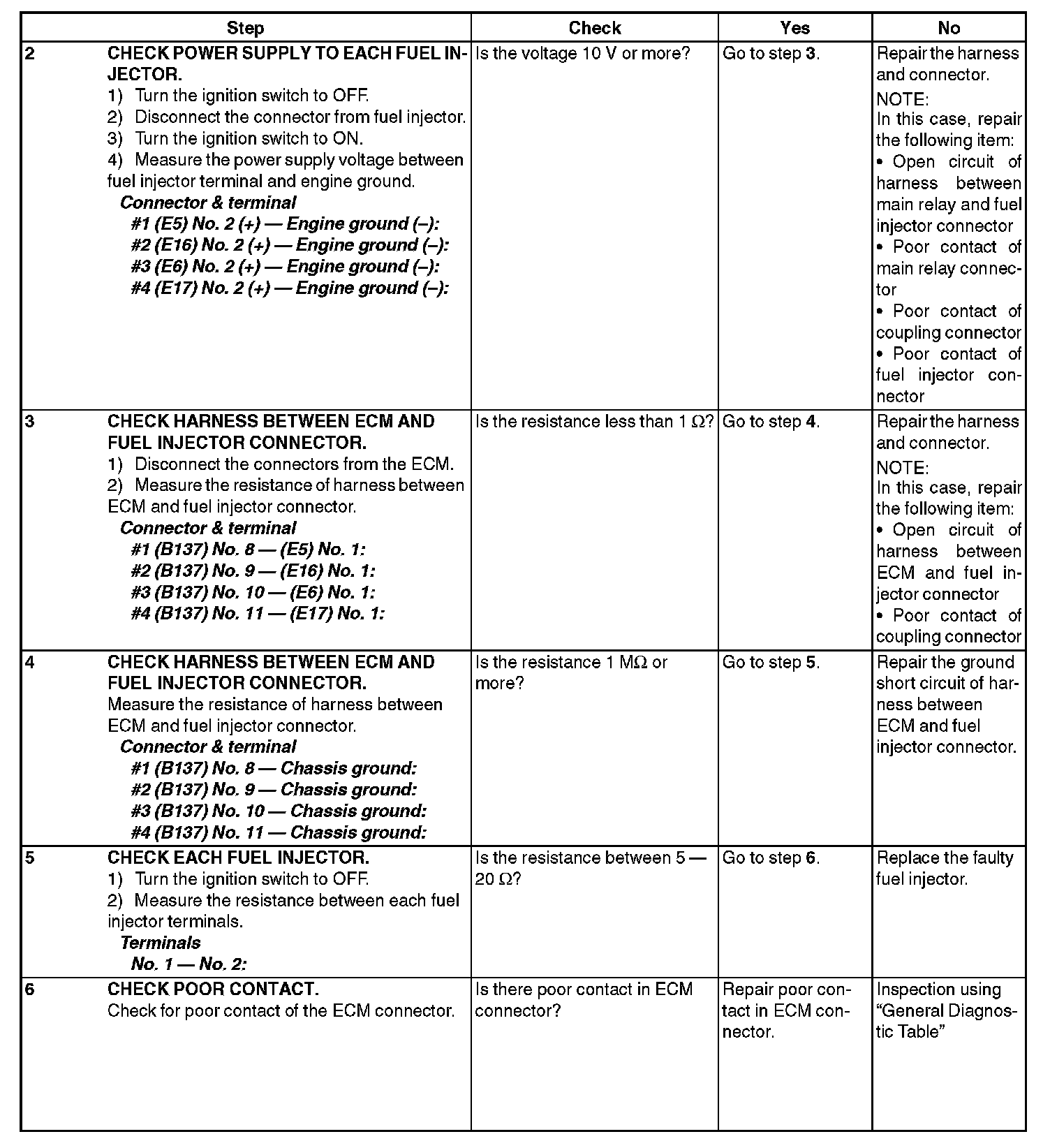

Step 2-6:
