Transmission Control Module (TCM) I/O Signal

Transmission Control Module (TCM) I/O Signal

ELECTRICAL SPECIFICATION

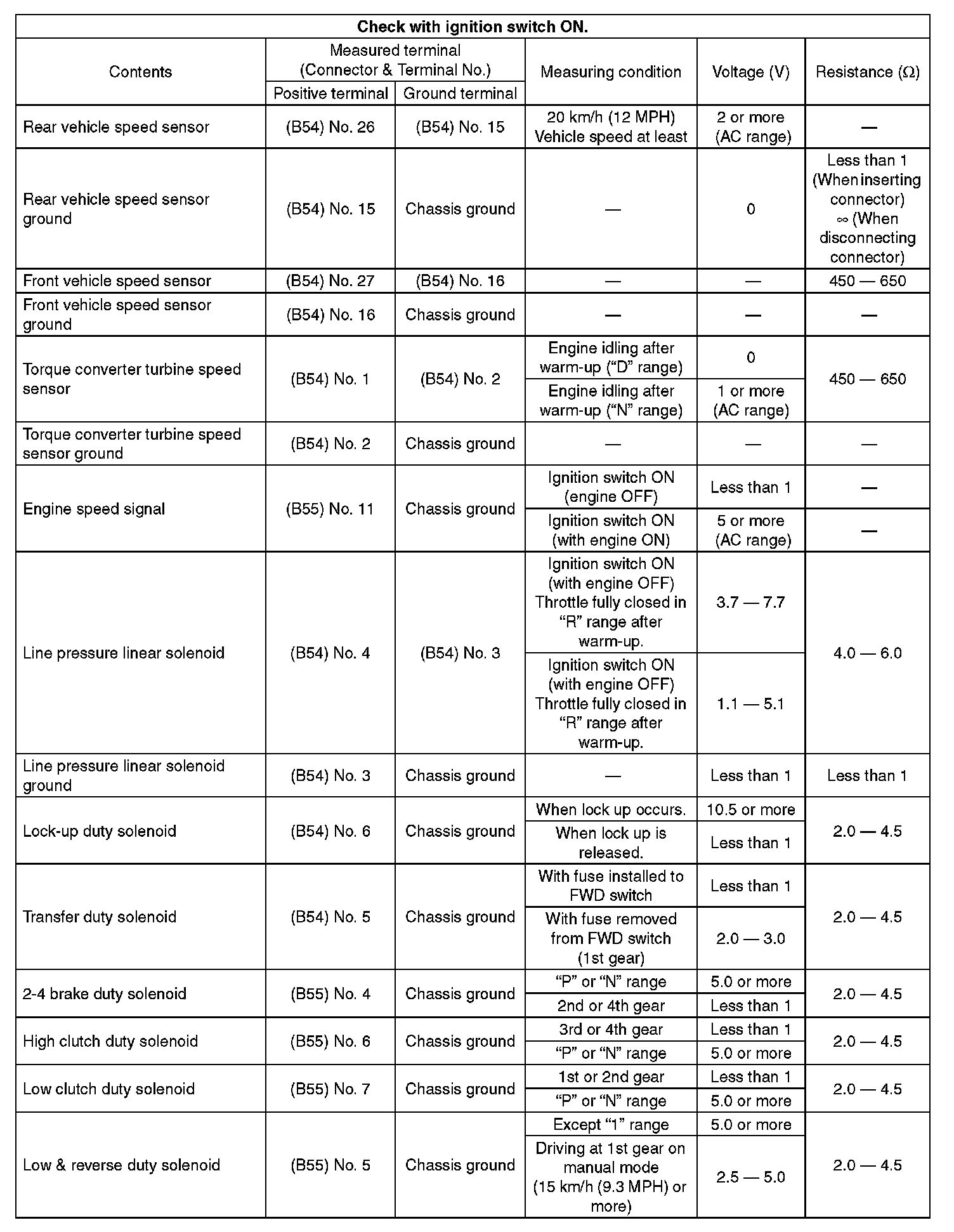

ELECTRICAL SPECIFICATION (Part 1):

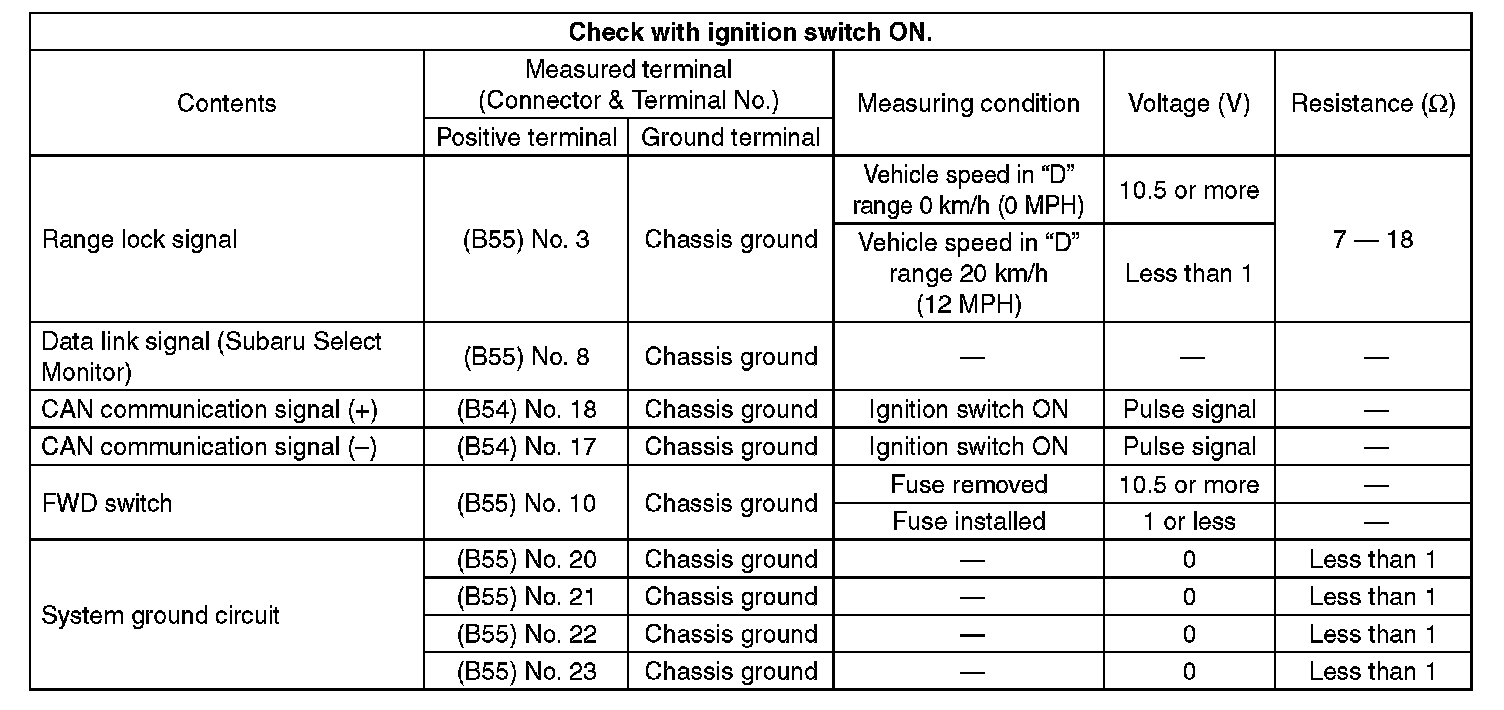

ELECTRICAL SPECIFICATION (Part 2):

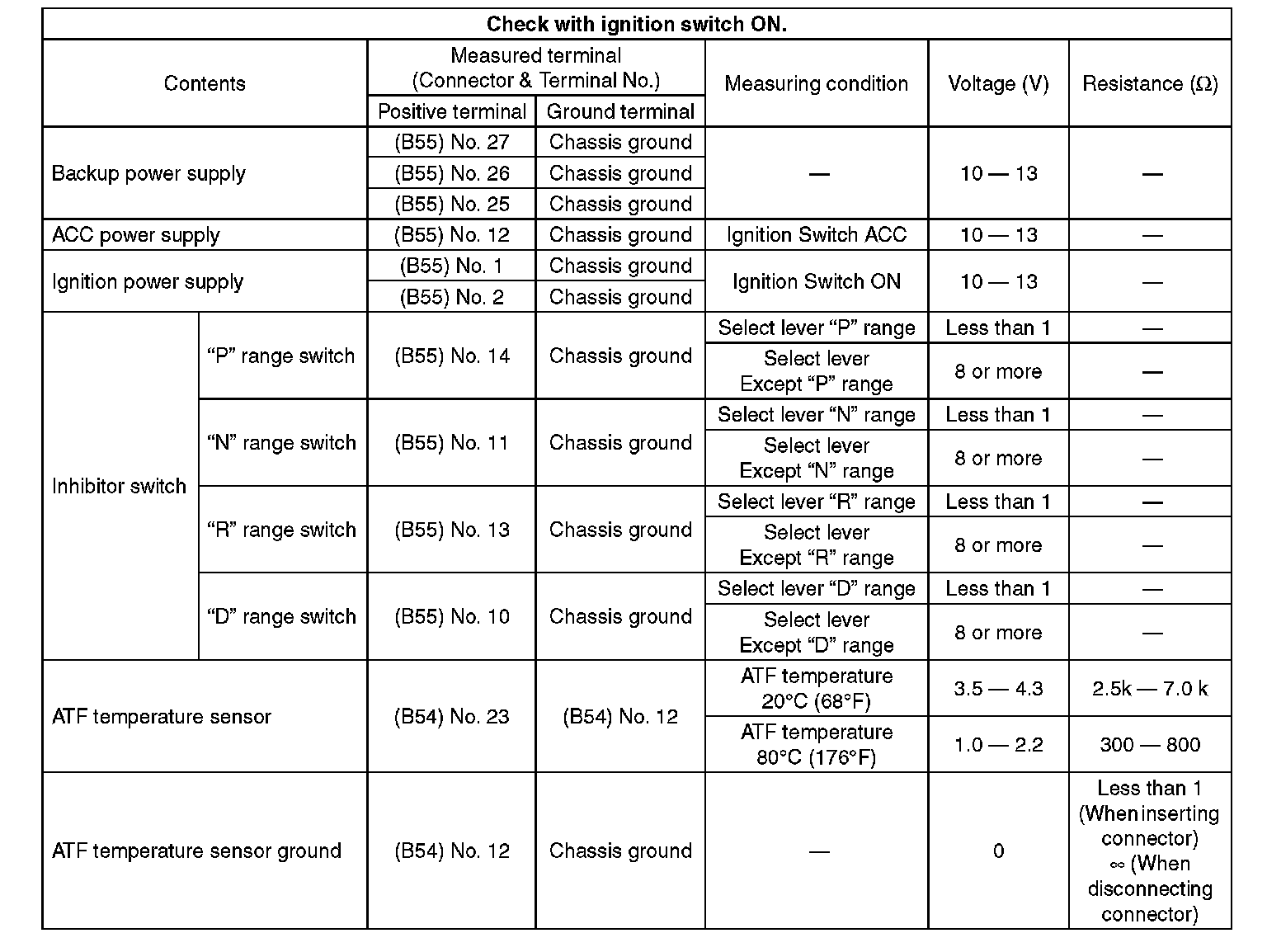

ELECTRICAL SPECIFICATION (Part 3):




ELECTRICAL SPECIFICATION (Part 4):
