Starter Motor: Testing and Inspection

STARTER MOTOR CIRCUIT

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode and Inspection Mode.

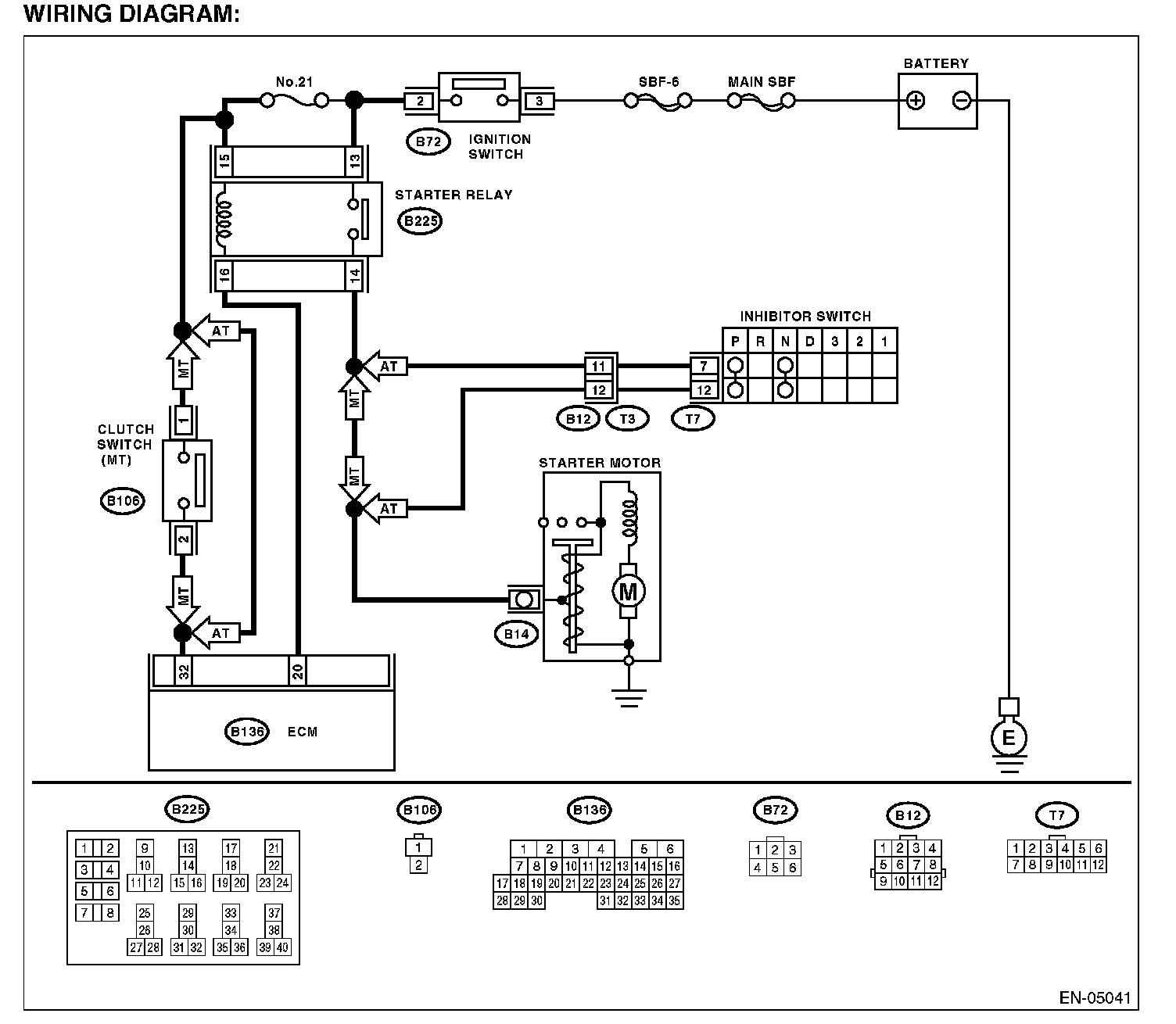

Wiring Diagram:






Step 1-2:

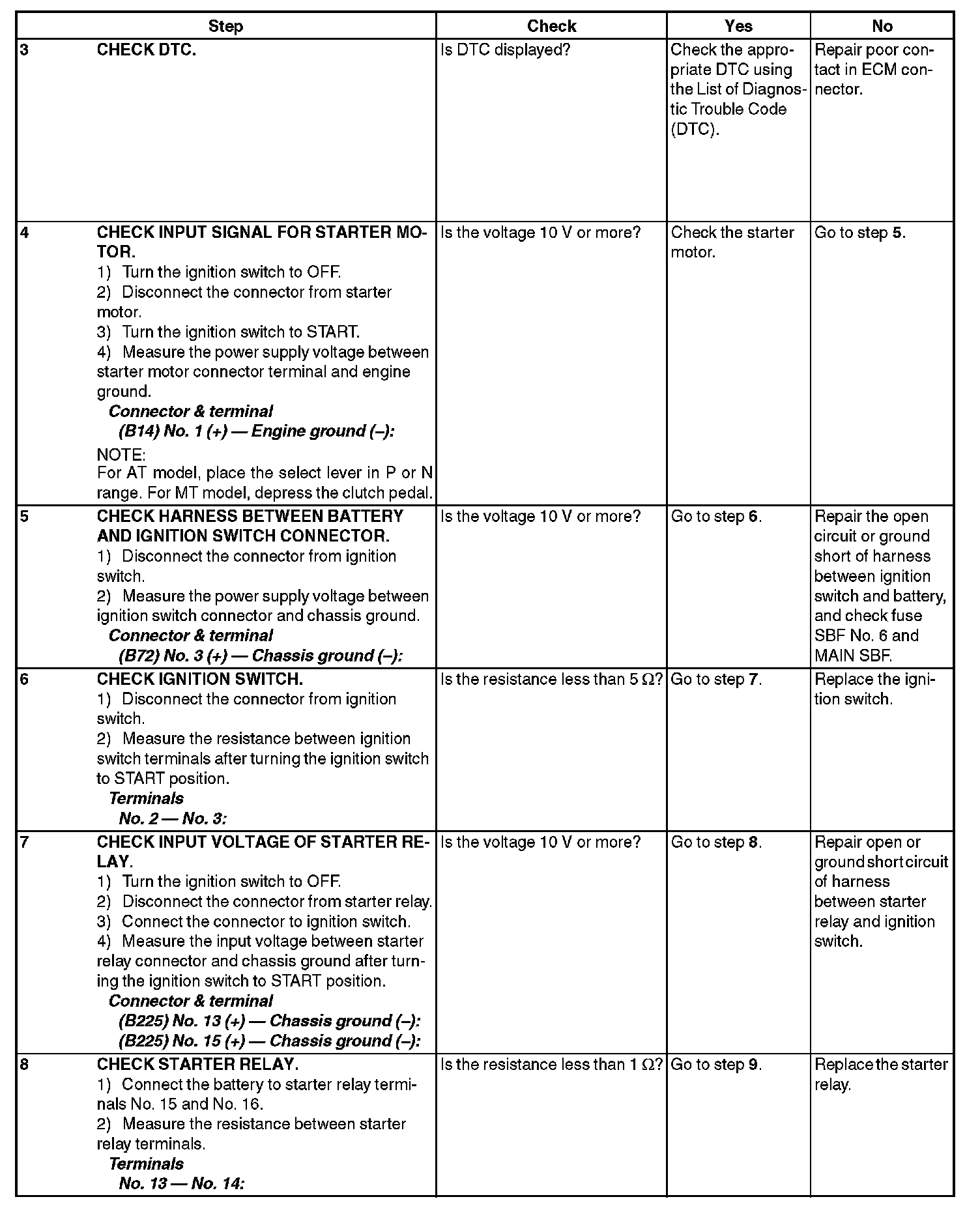

Step 3-8:

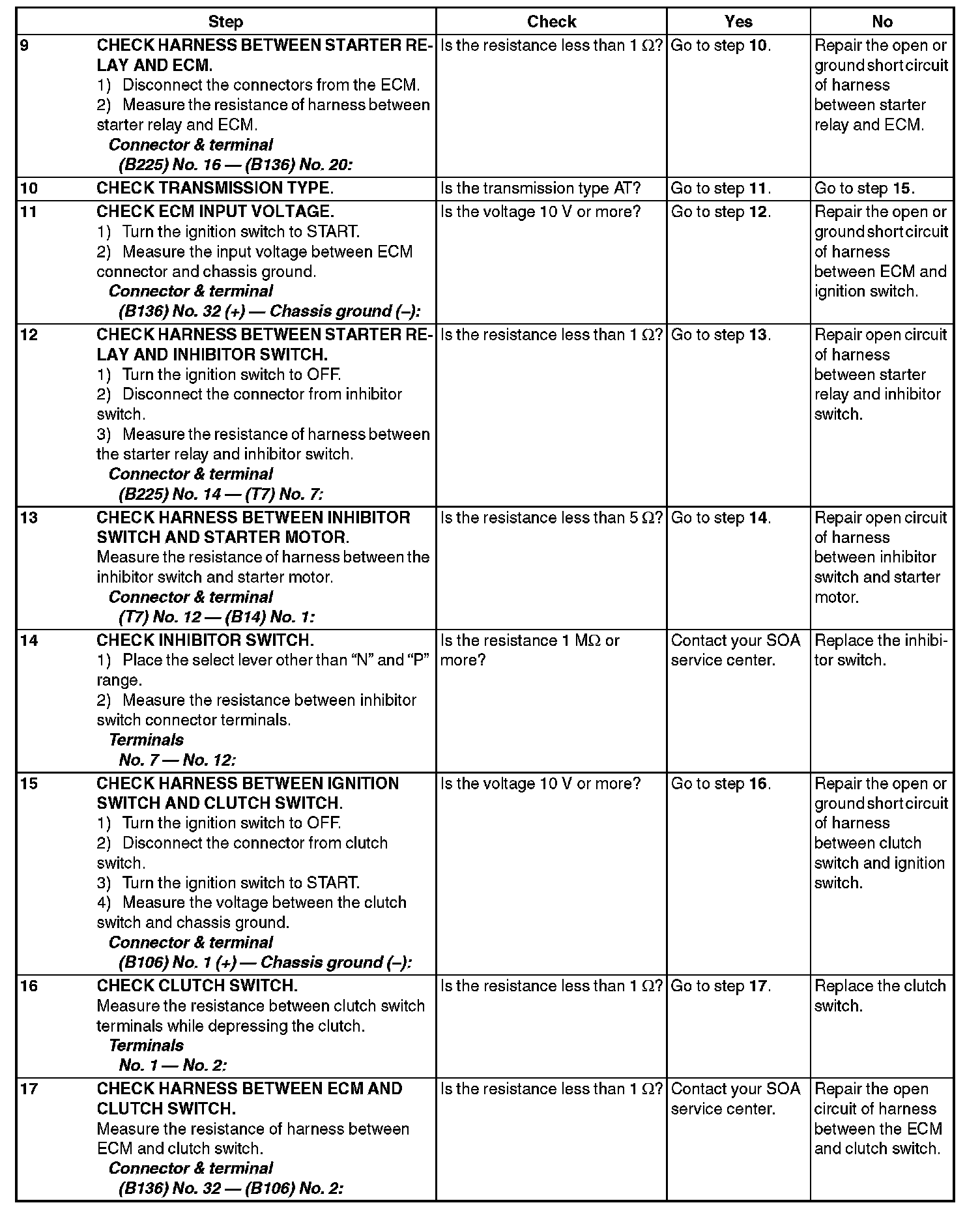

Step 9-17:
