Skid Plate: Service and Repair

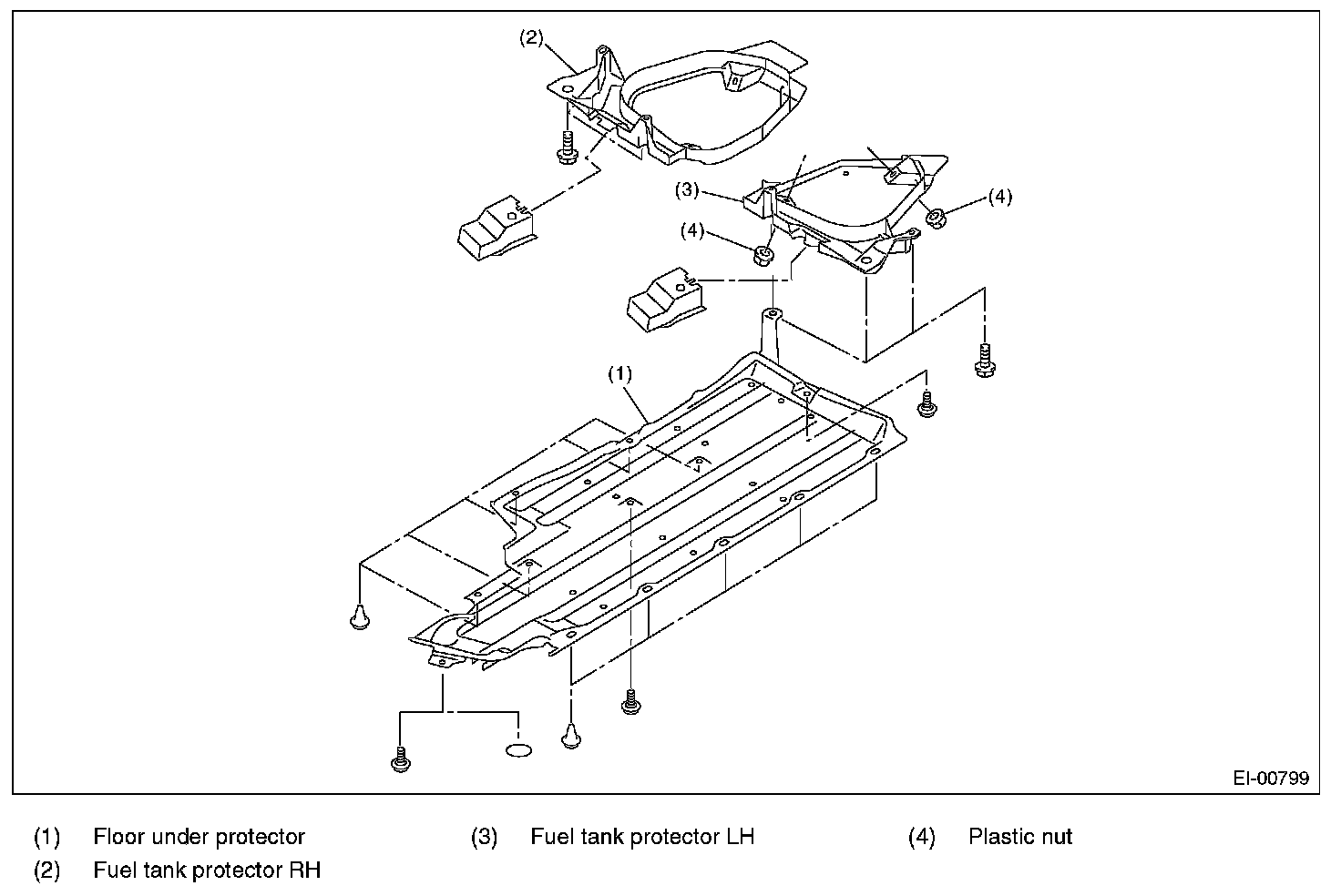

FLOOR UNDER PROTECTOR

Under Protector:

REMOVAL

1. Lift-up the vehicle.

NOTE: Plate type lift can not be used.

2. Remove the push turn clips (A) and bolts (B), and remove the floor under protector.






INSTALLATION

Install in the reverse order of removal.
