Drive Belt: Service and Repair

V-BELT

V-BELT:

REMOVAL

NOTE: Perform the work with the engine installed to body when replacing a single part.

1) Remove the collector cover.
2) Install the tool to belt tension adjuster assembly installation bolt.
3) Rotate the tool clockwise and loosen the V-belt to remove.





INSTALLATION
Install in the reverse order of removal.





INSPECTION
1) Replace the V-belt, if cracks, fraying or wear is found.

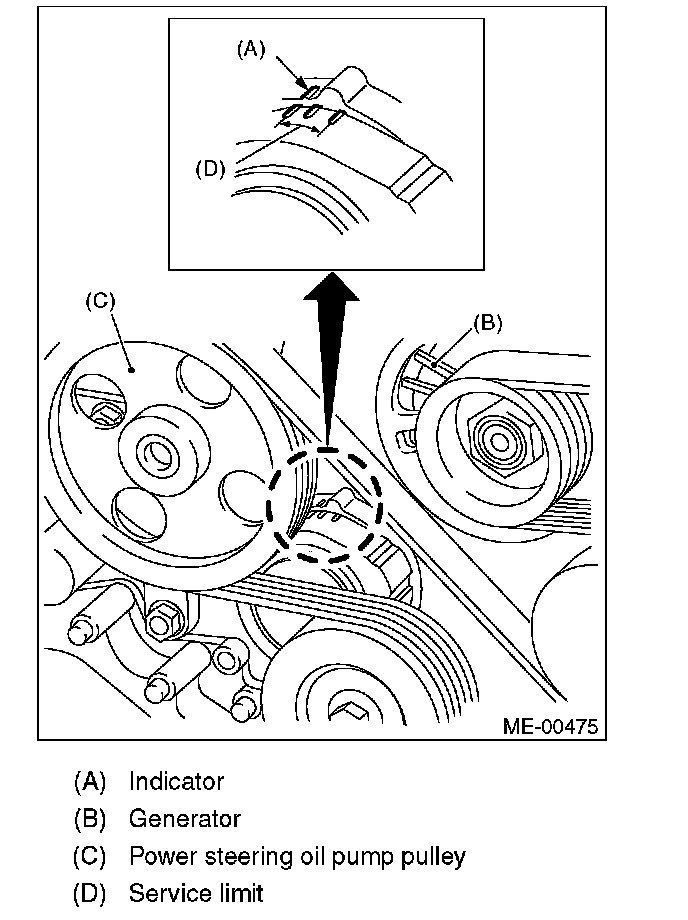

2) Make sure that the V-belt automatic belt tension indicator (A) is within the range (D).
