System Diagram

Component

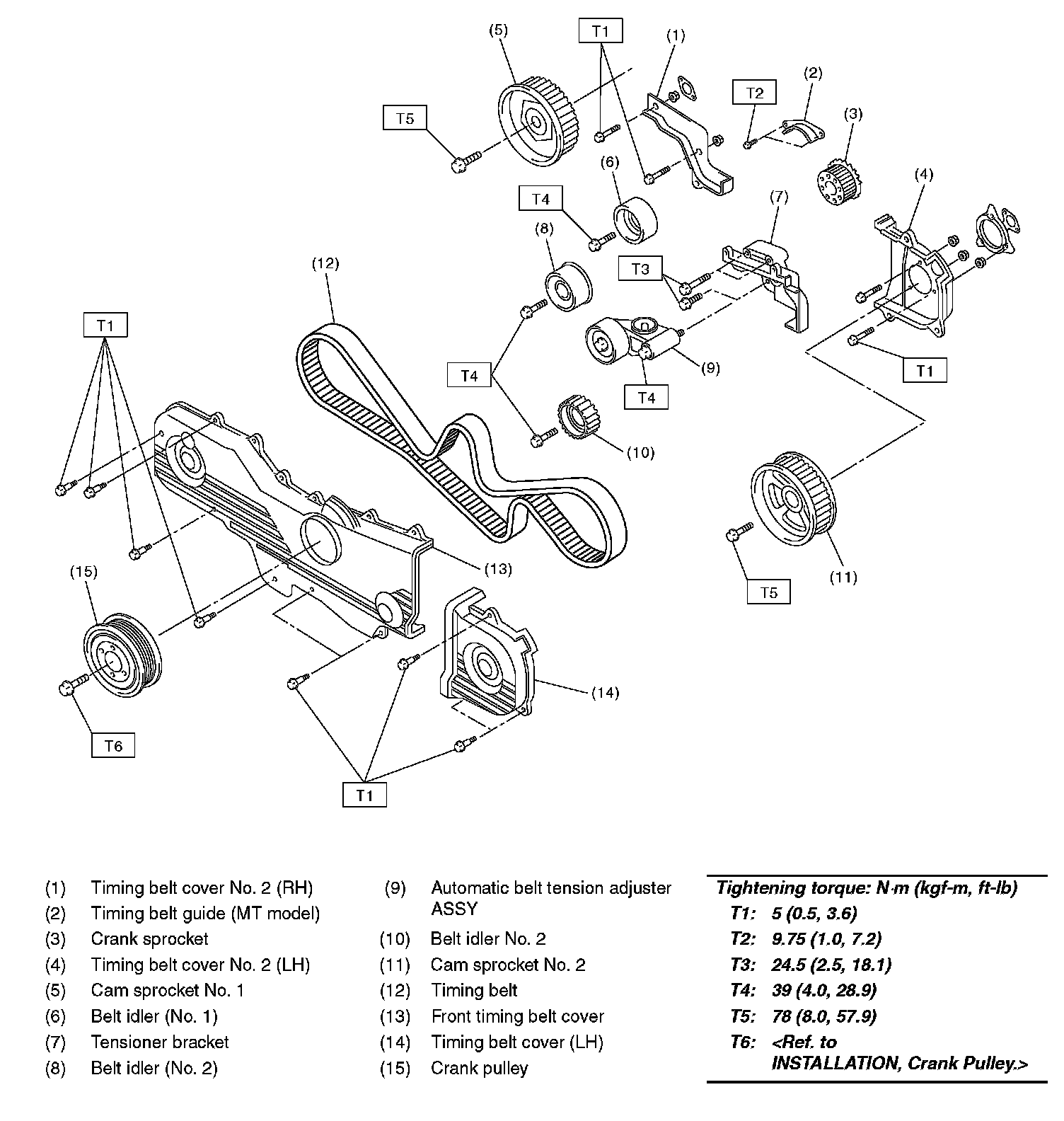

TIMING BELT:

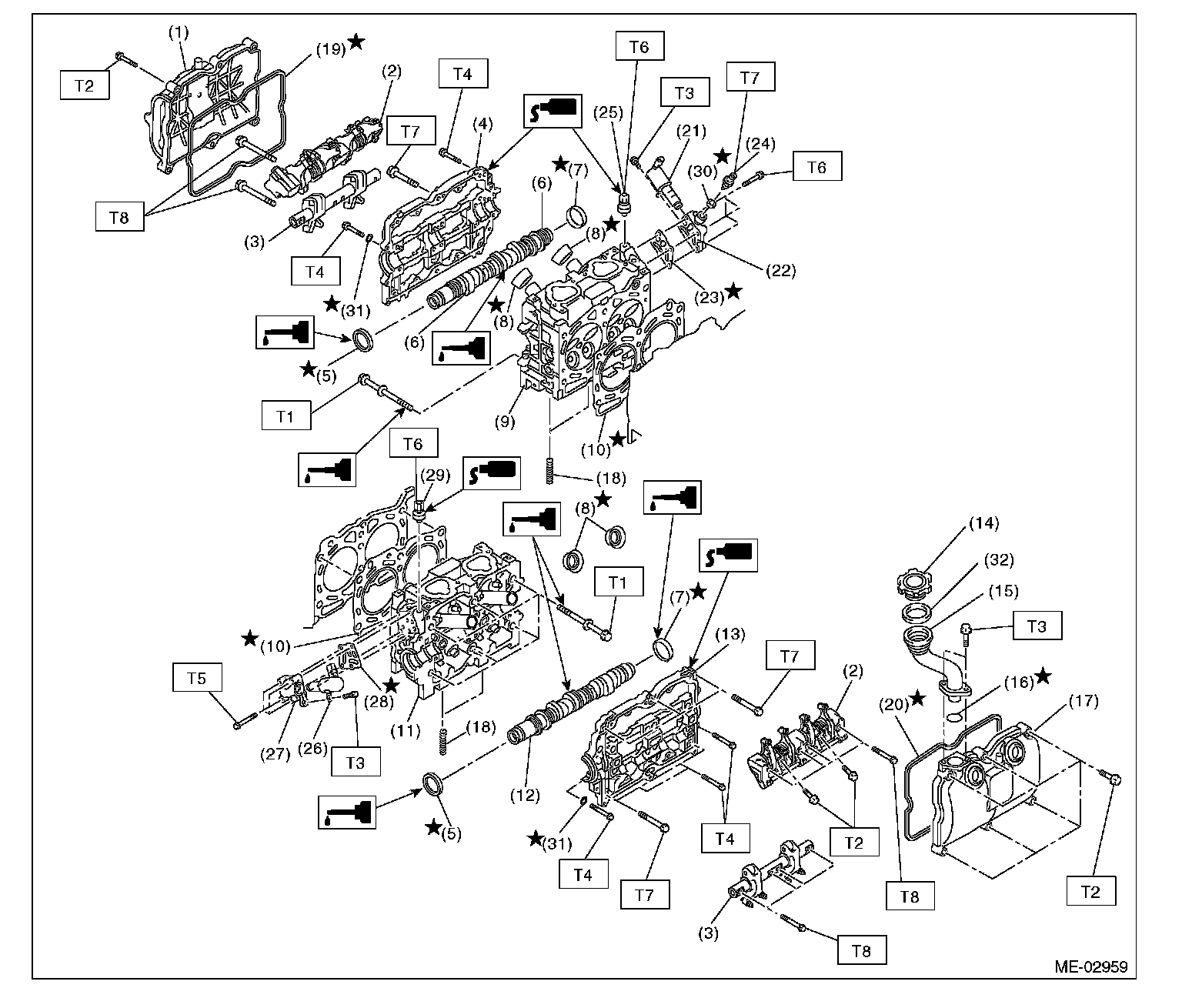

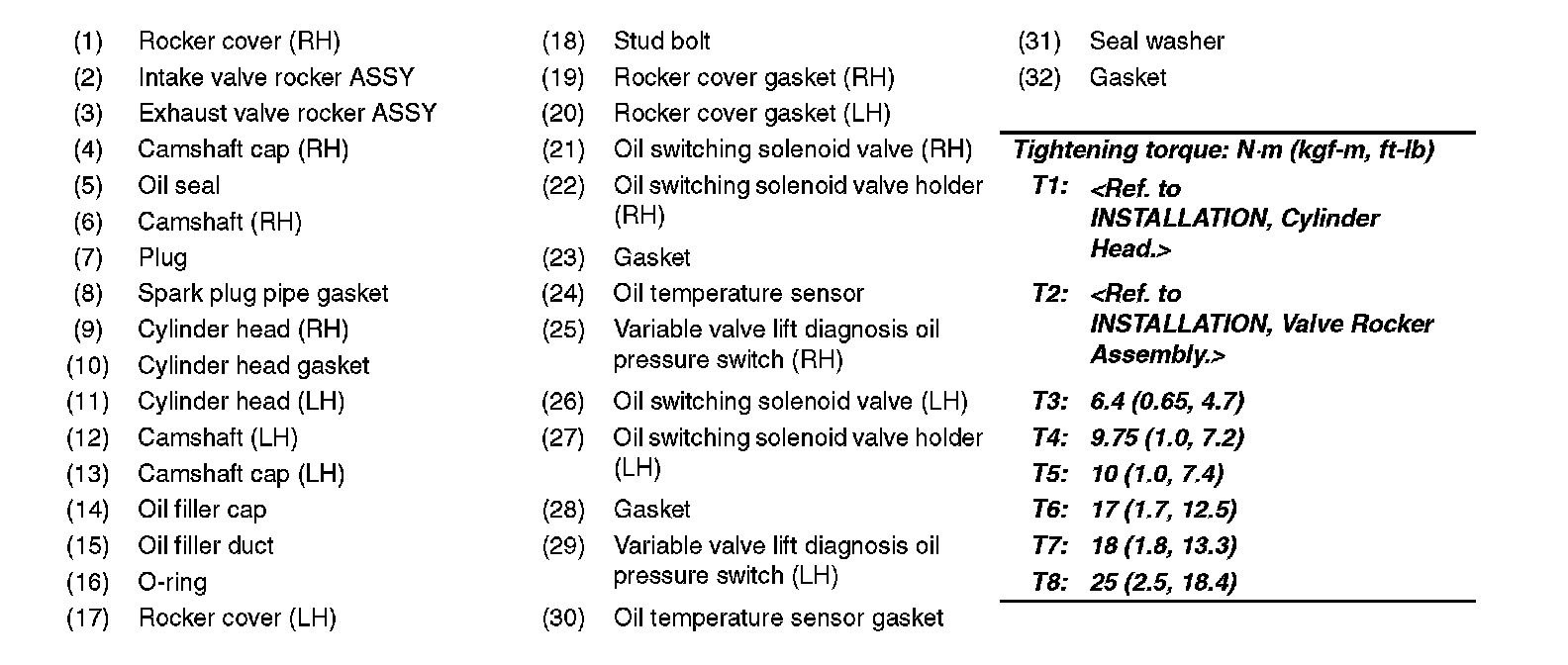

CYLINDER HEAD AND CAMSHAFT:




CYLINDER HEAD AND CAMSHAFT:

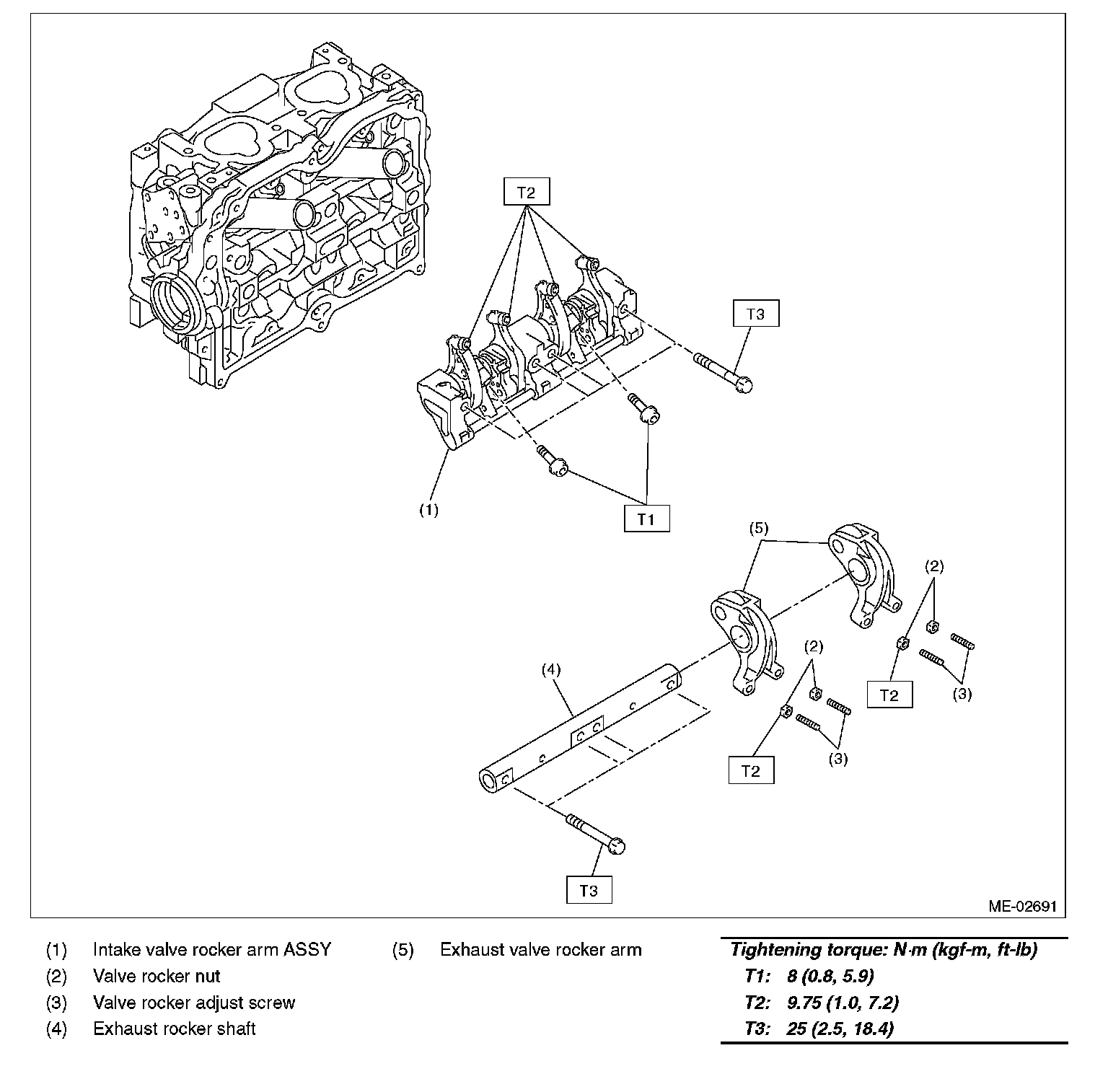

VALVE ROCKER ASSEMBLY:

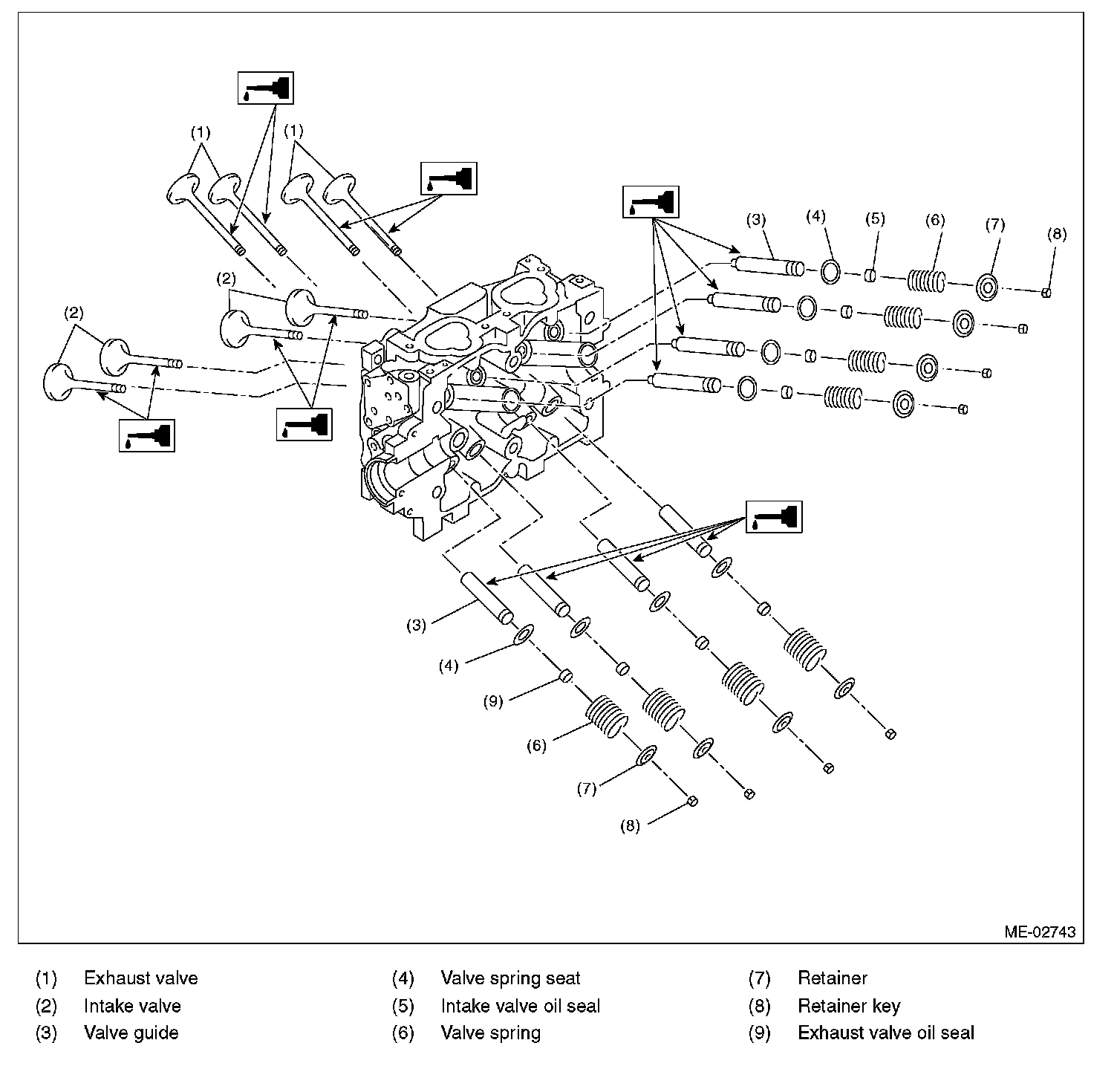

CYLINDER HEAD AND VALVE ASSEMBLY:

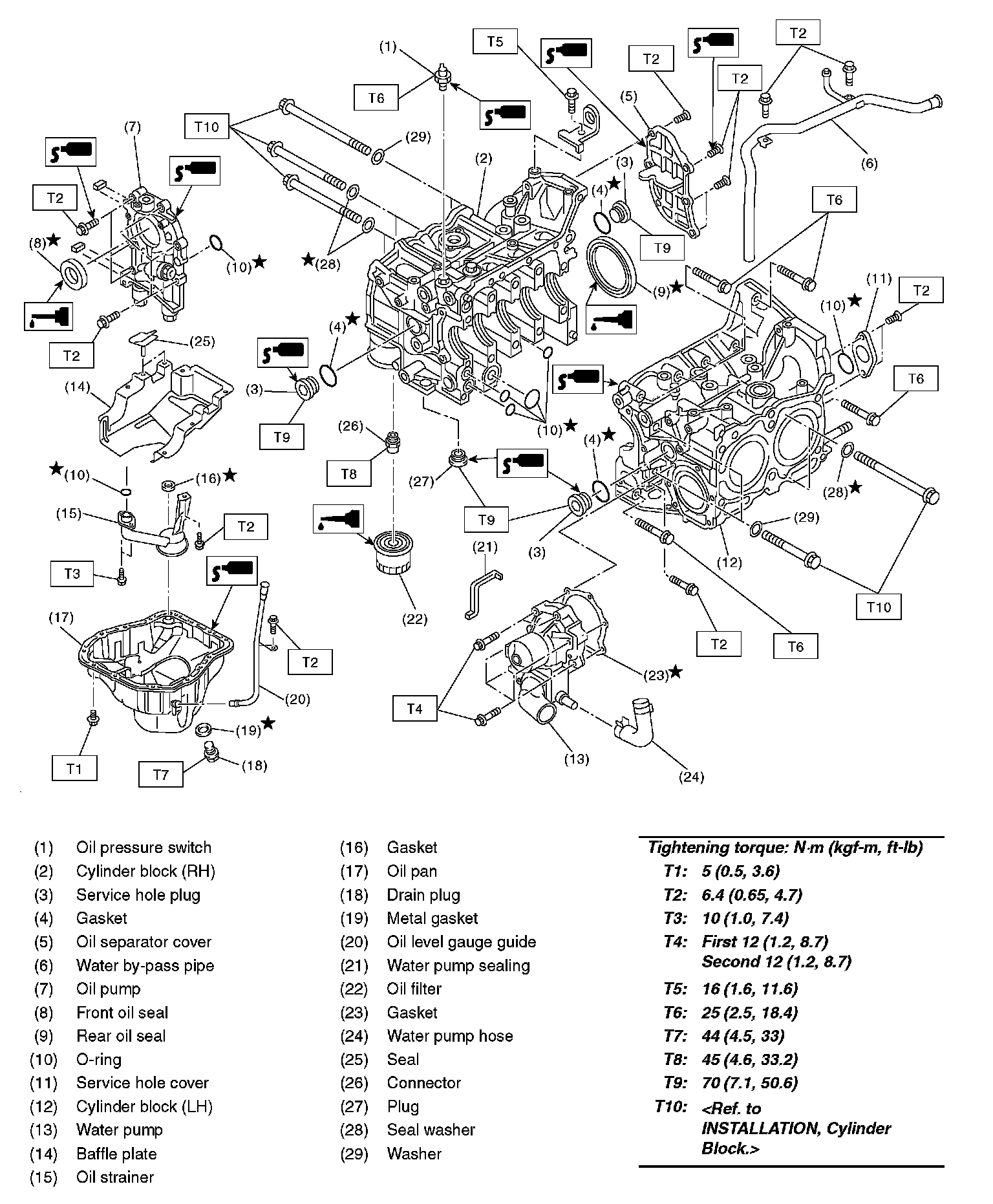

CYLINDER BLOCK:

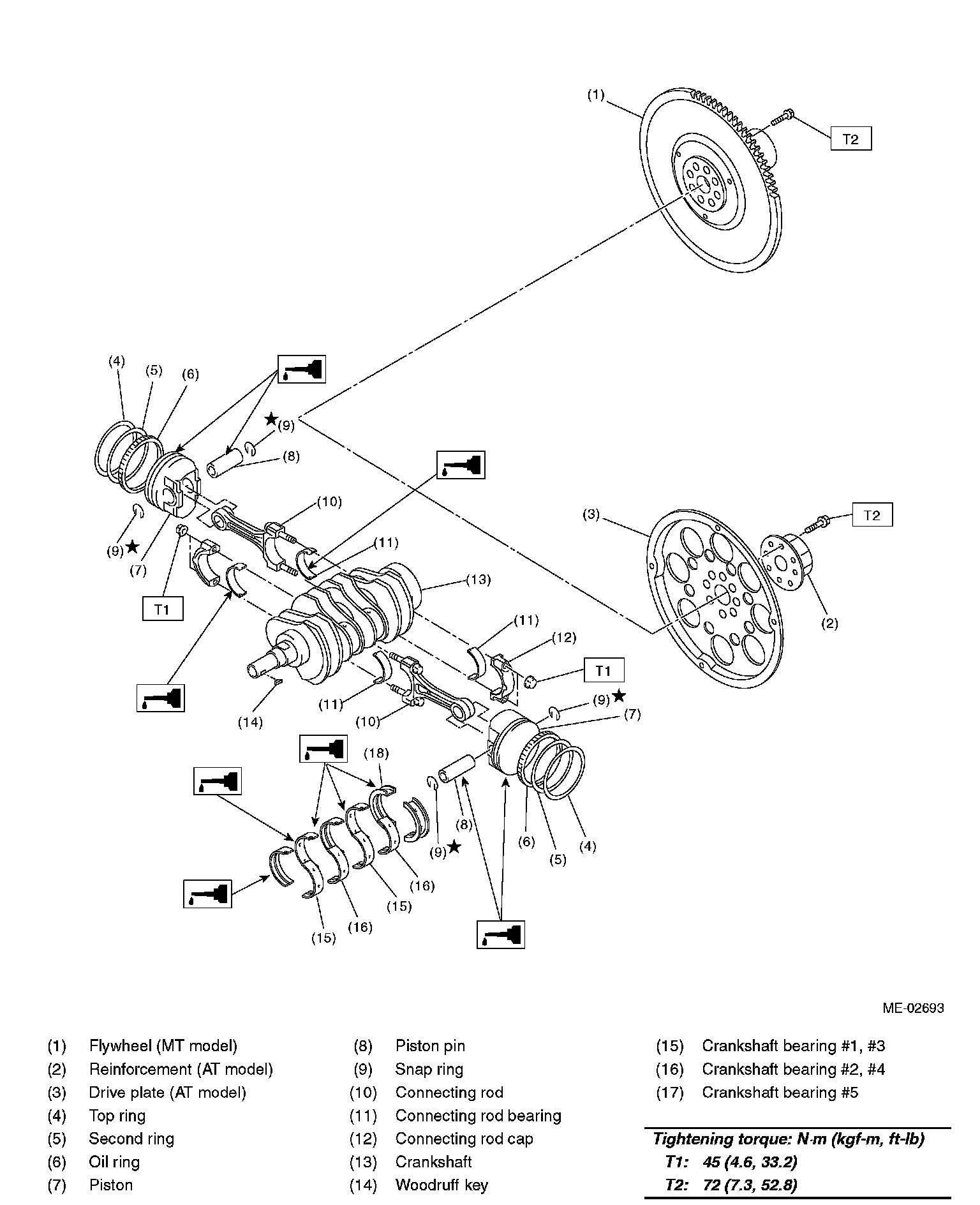

CRANKSHAFT AND PISTON:

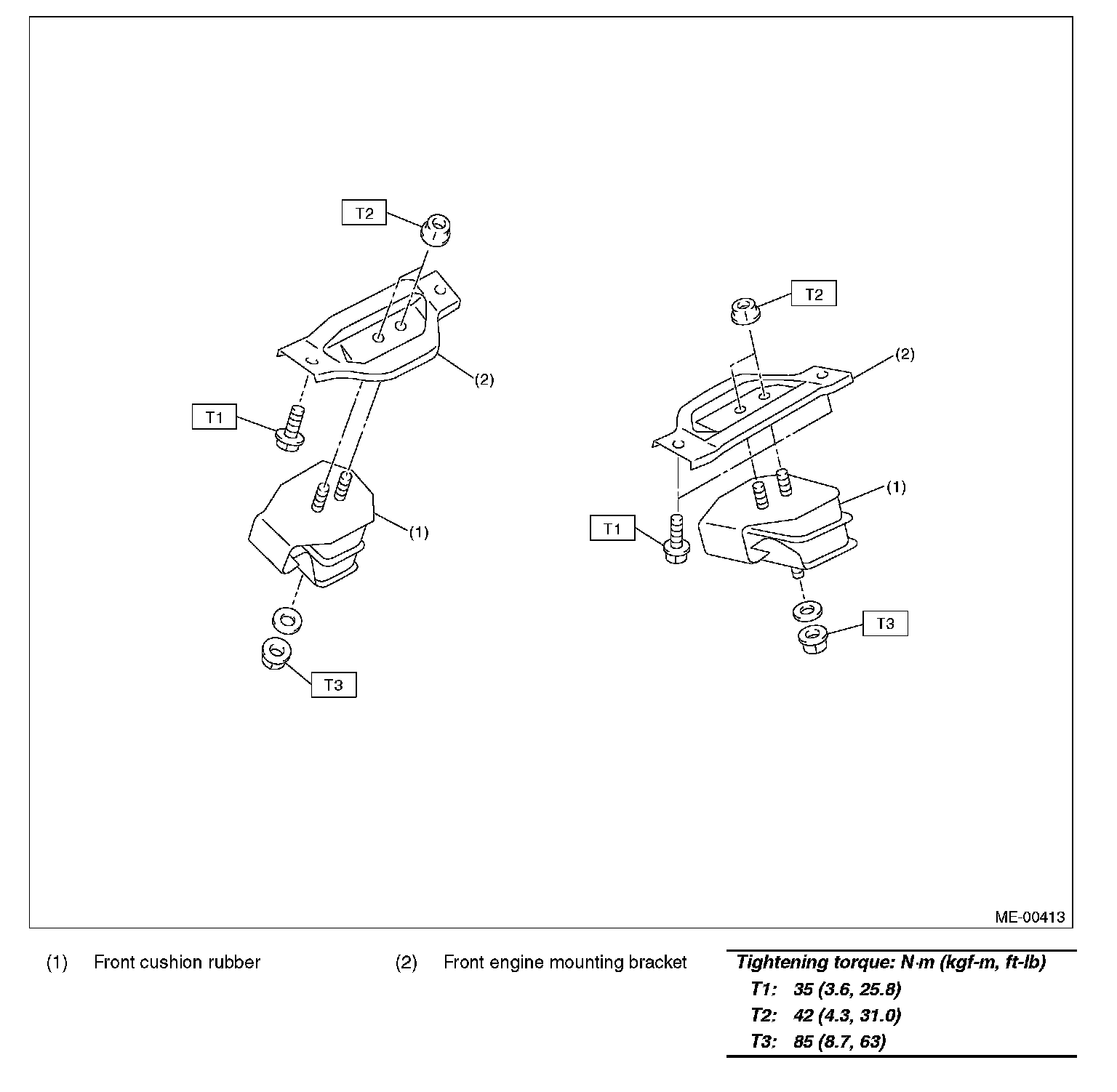

ENGINE MOUNTING:
