Ignition System: Testing and Inspection

IGNITION CONTROL SYSTEM

CAUTION: After repairing or replacing the defective parts, perform the Clear Memory Mode and Inspection Mode.

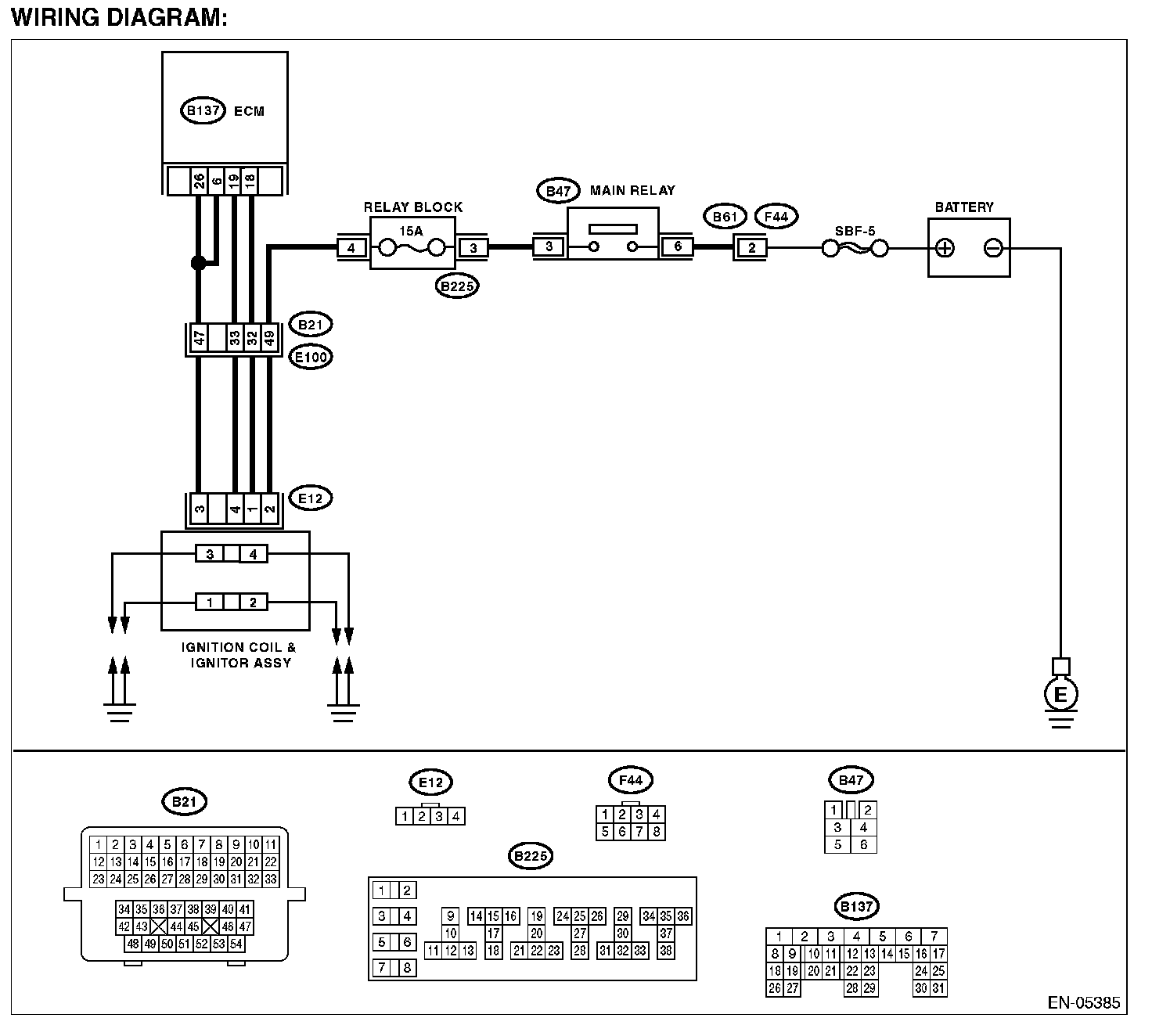

Wiring Diagram:




WIRING DIAGRAM

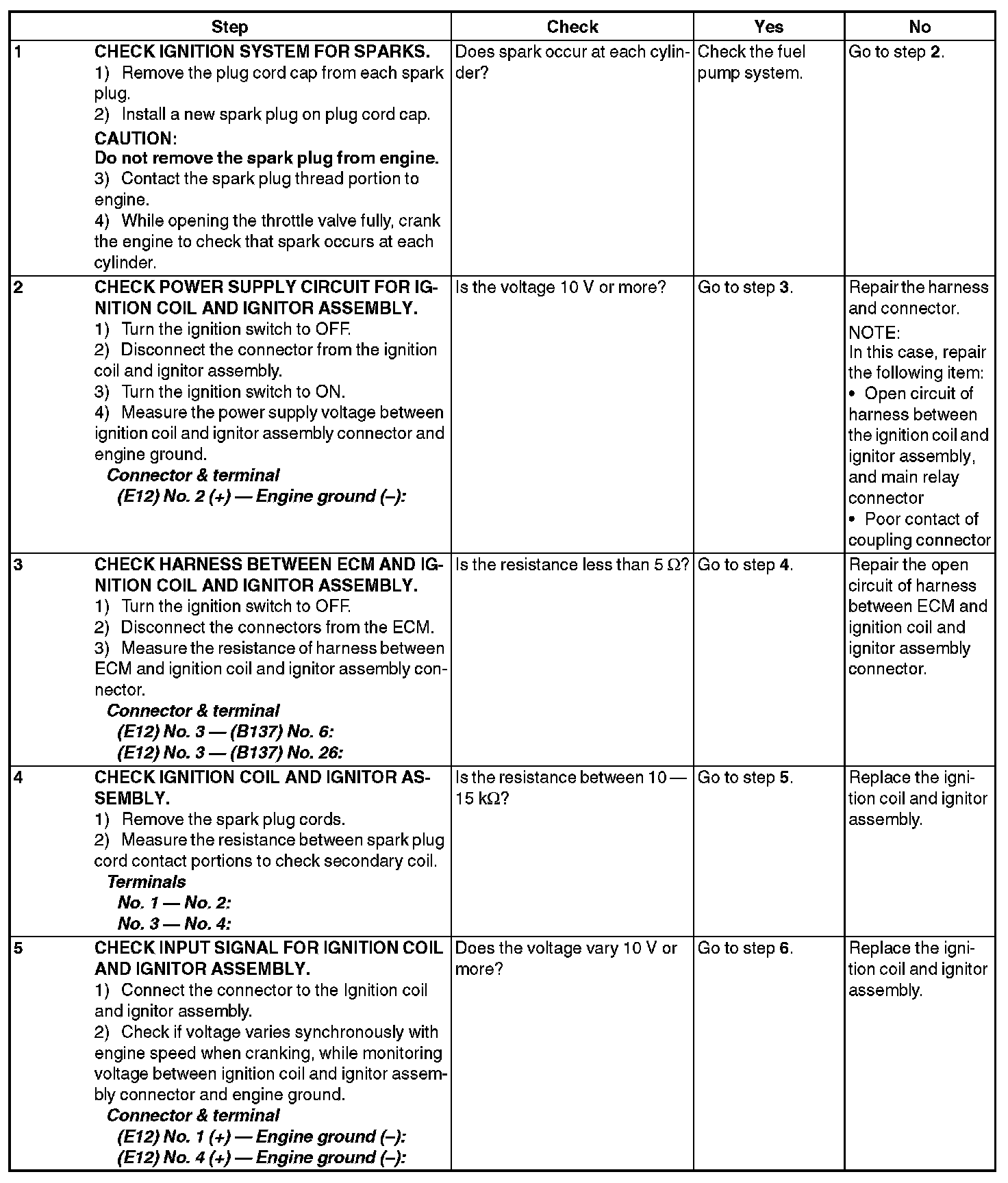

Step 1-5:

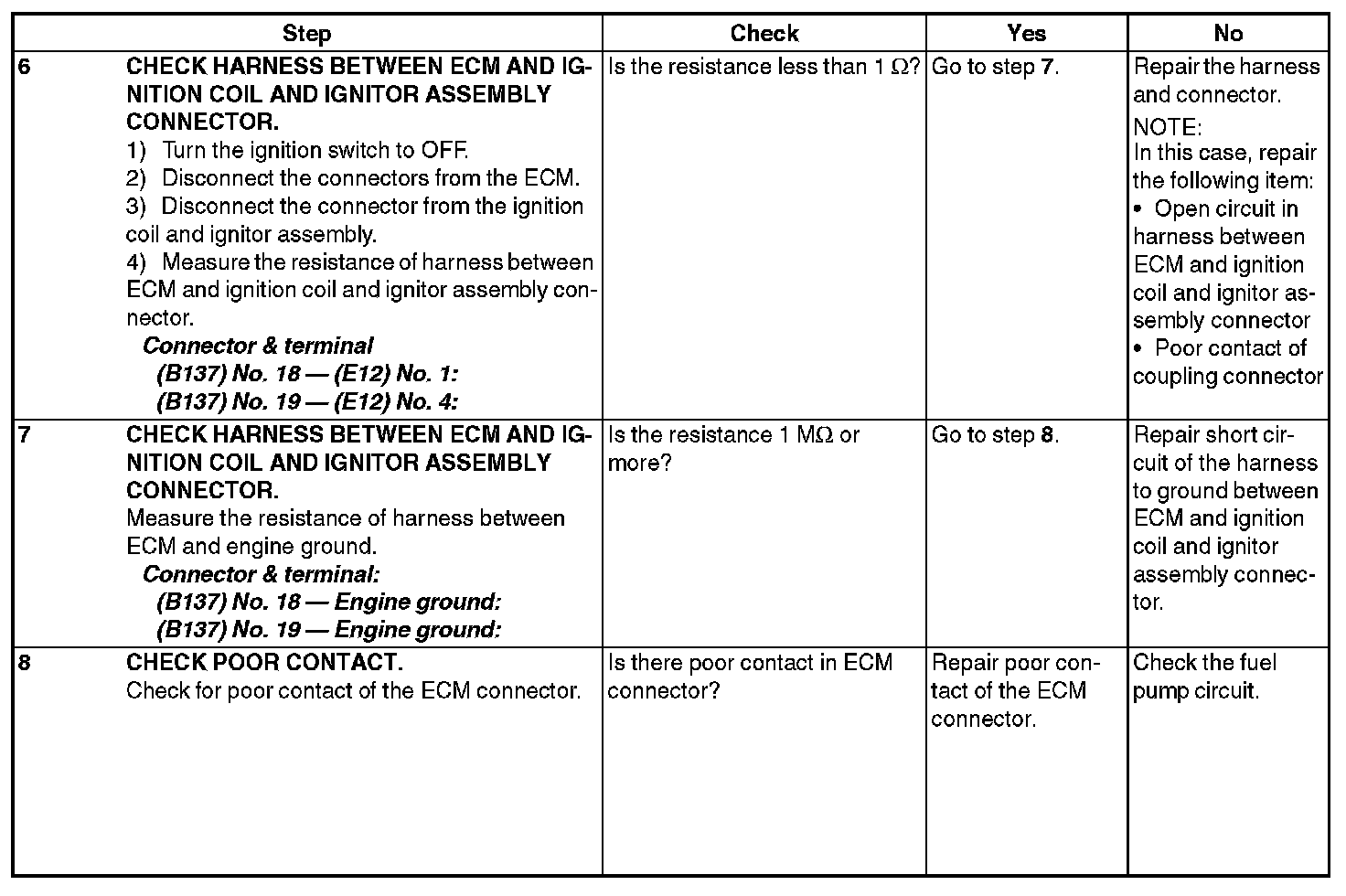

Step 6-8:
