AT Control System

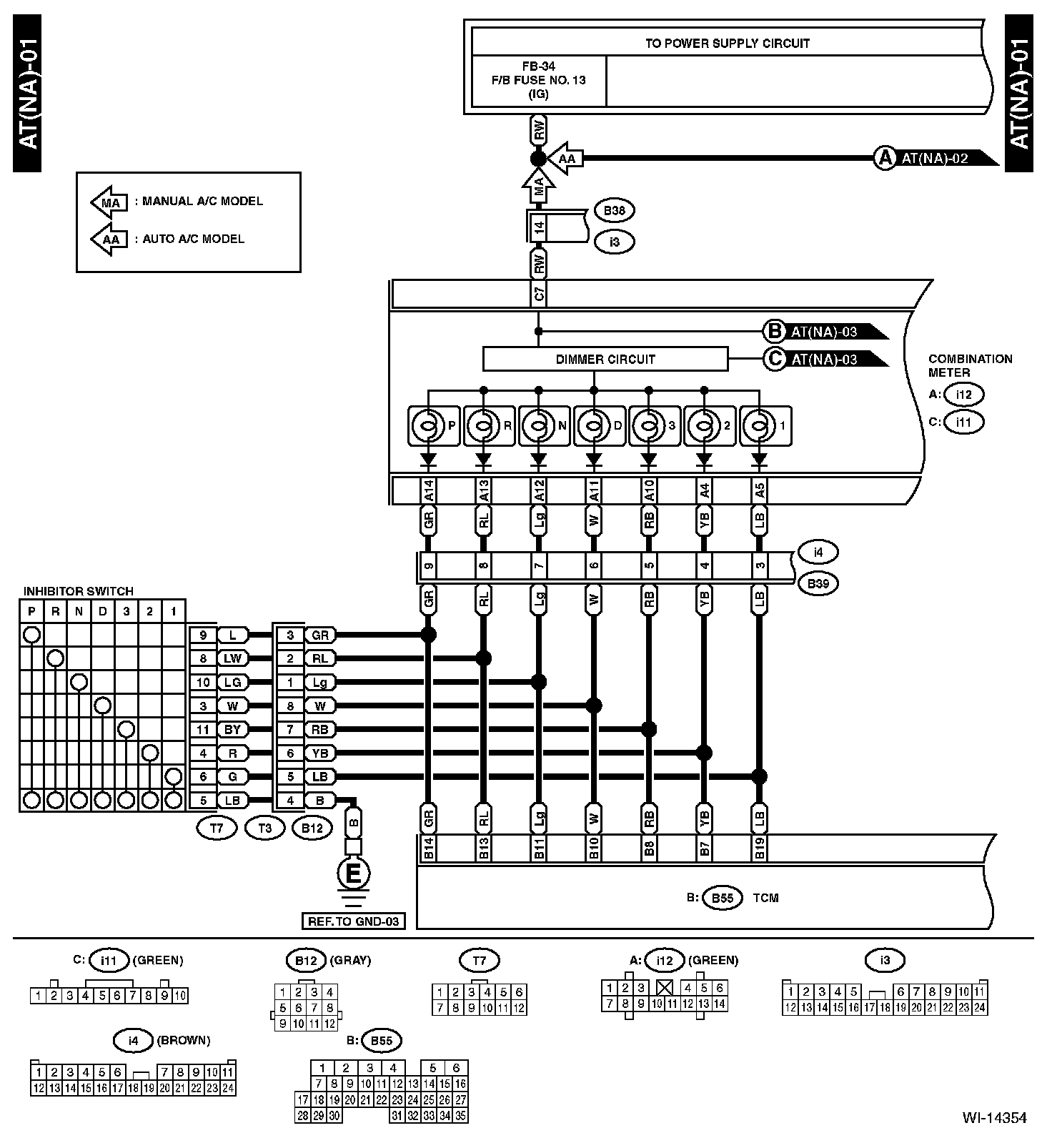

AT(NA)-01:

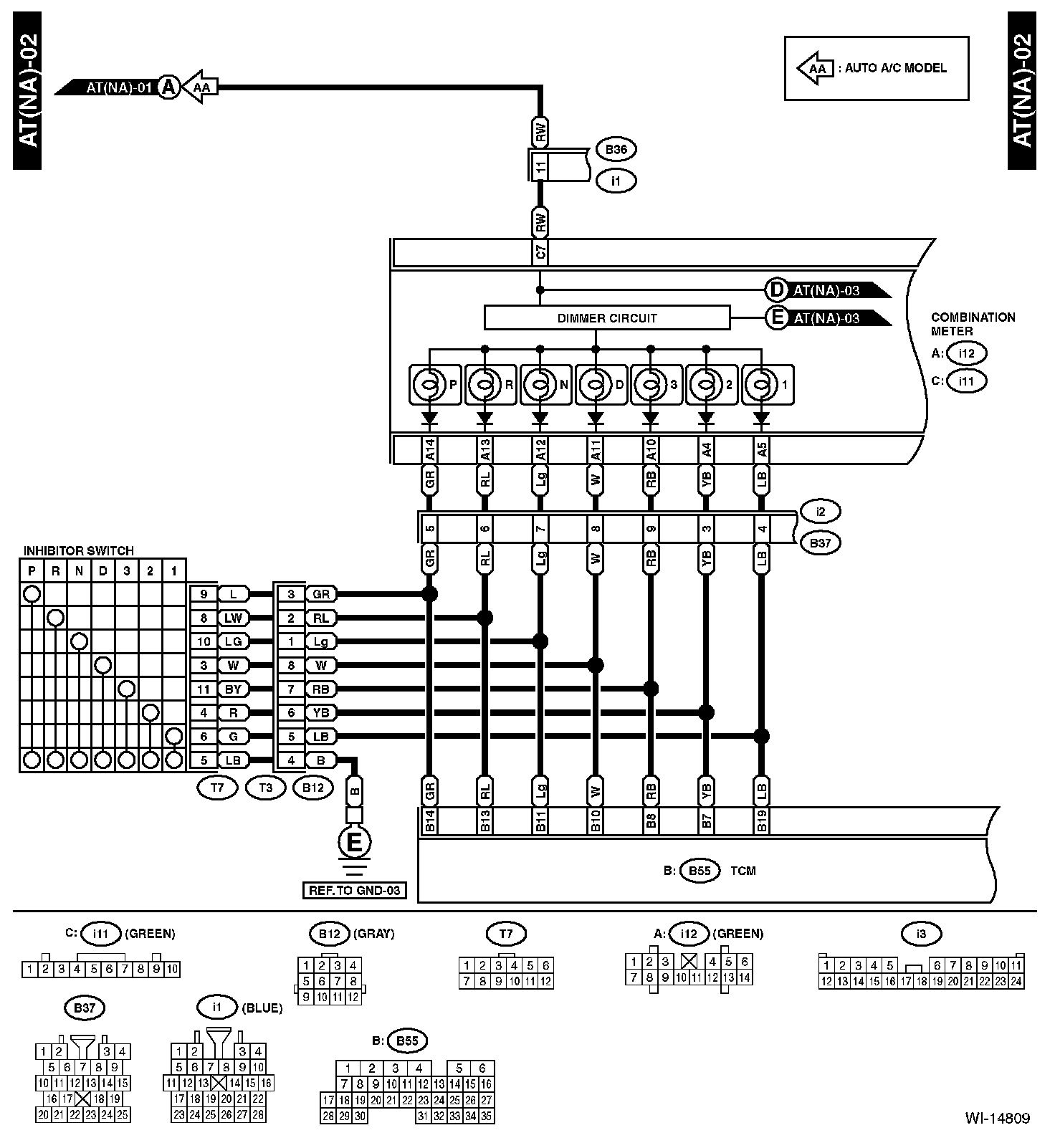

AT(NA)-02:

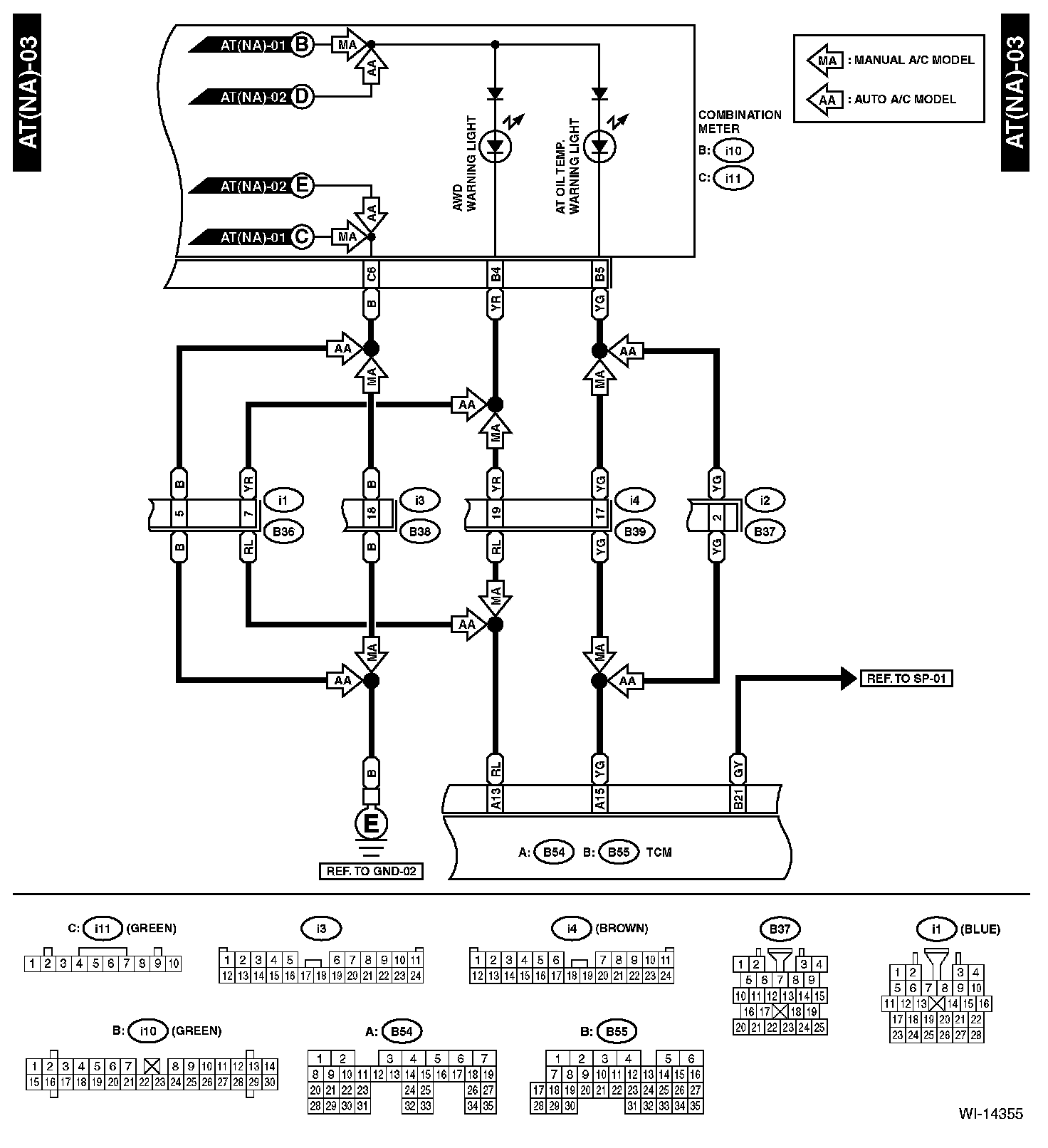

AT(NA)-03:

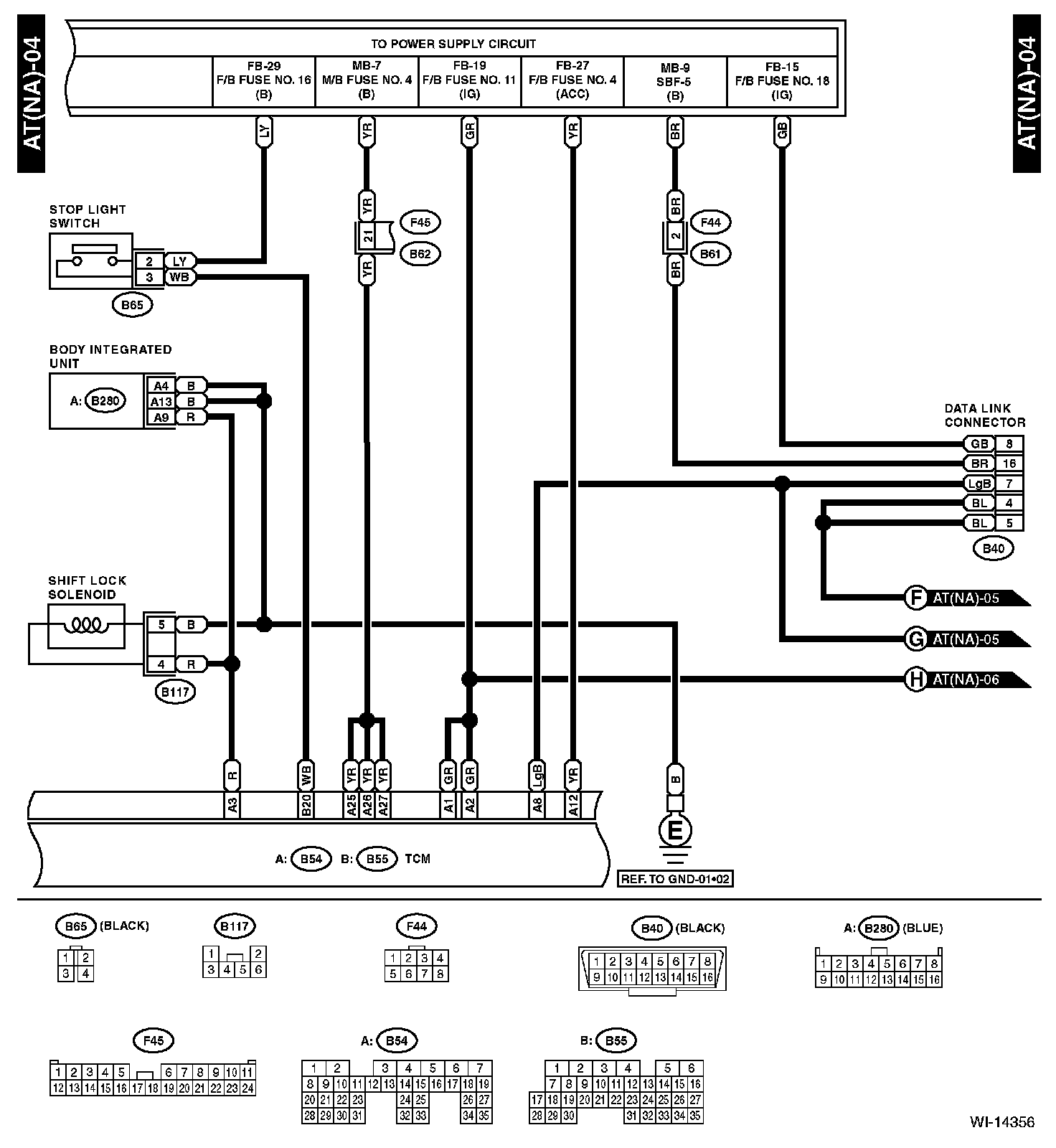

AT(NA)-04:

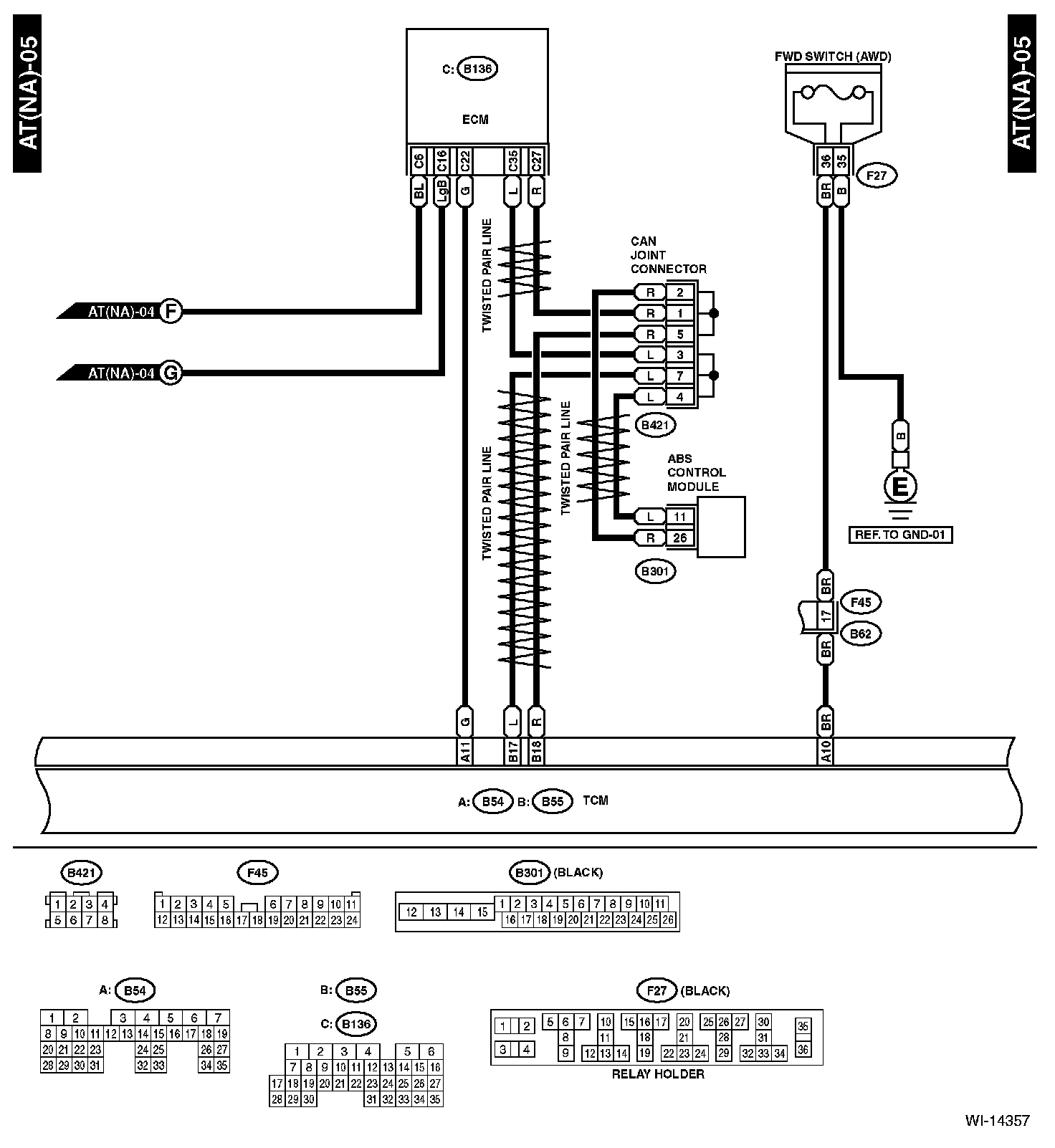

AT(NA)-05:

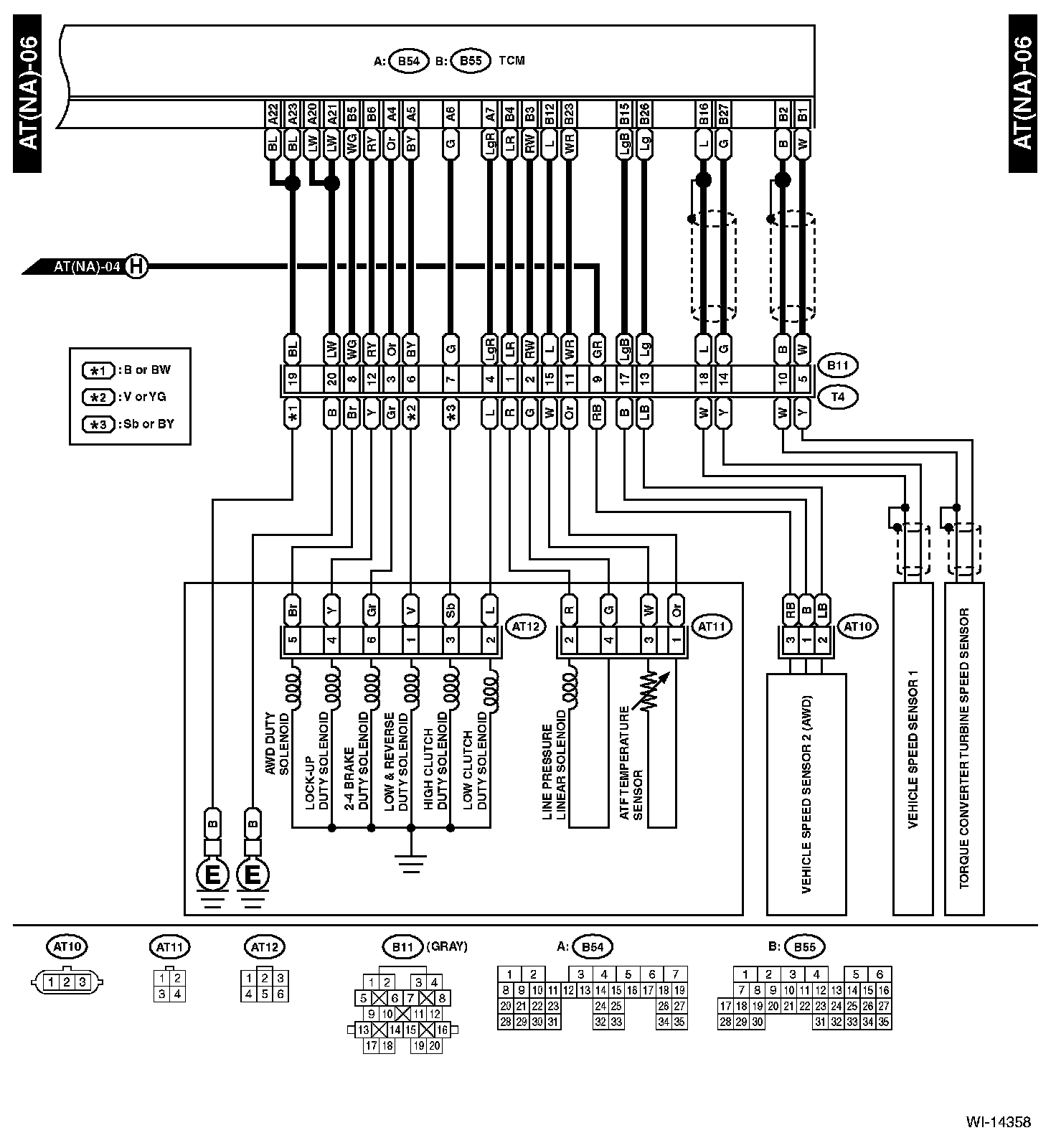

AT(NA)-06:

Diagrams: Other diagrams referred to by name within these diagrams (i.e. "REF. TO GND-01", etc) can be found at Diagrams by Diagram Name. Diagrams By Diagram Name

Connector and Ground Locations: The locations of the Connectors or Grounds shown within these diagrams can be found via the connector or ground number at Vehicle Locations. Locations
