Pinout Values and Diagnostic Parameters

Transmission Control Module (TCM) I/O Signal

ELECTRICAL SPECIFICATION

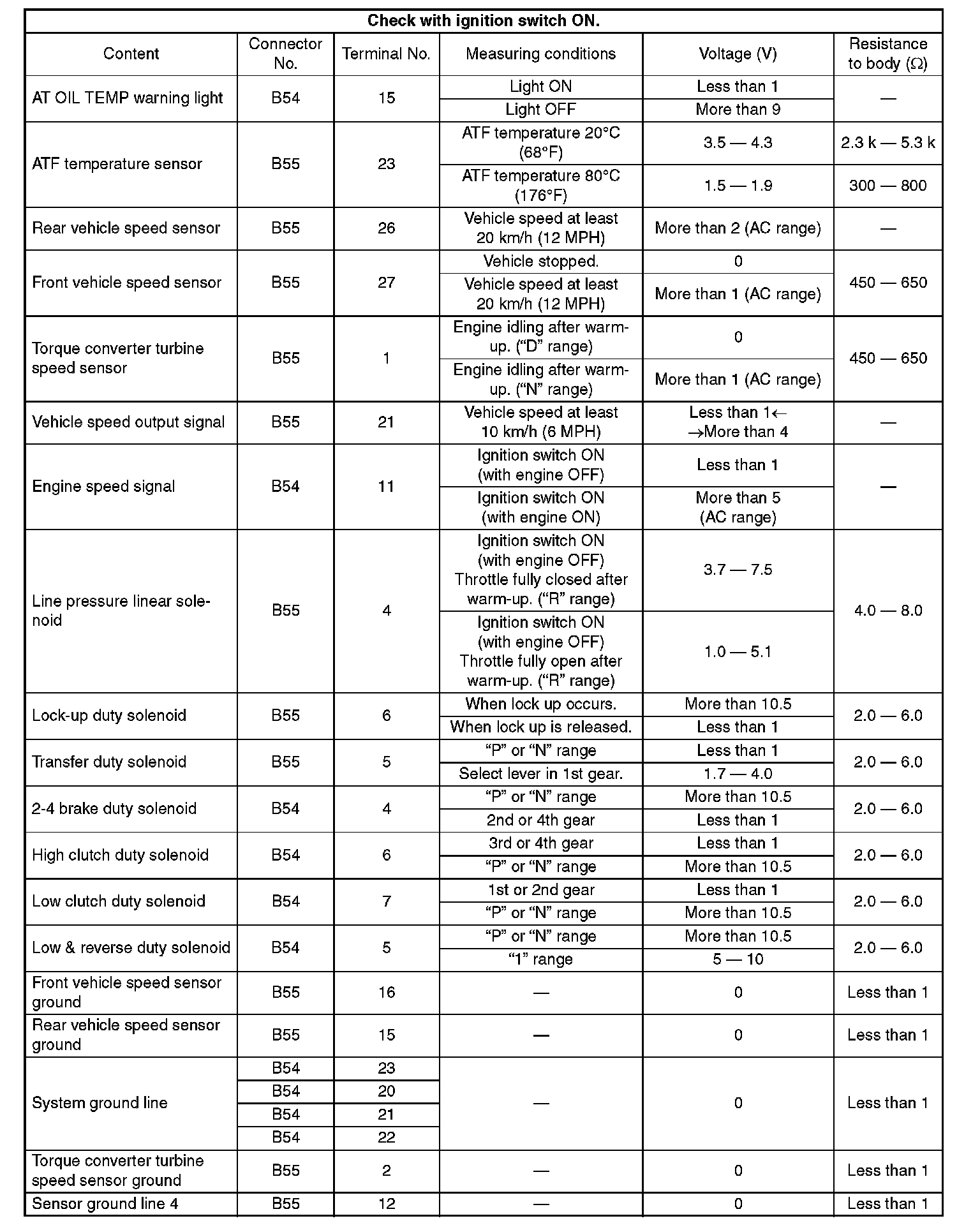

Transmission Control Module (TCM) I/O Signal 1:

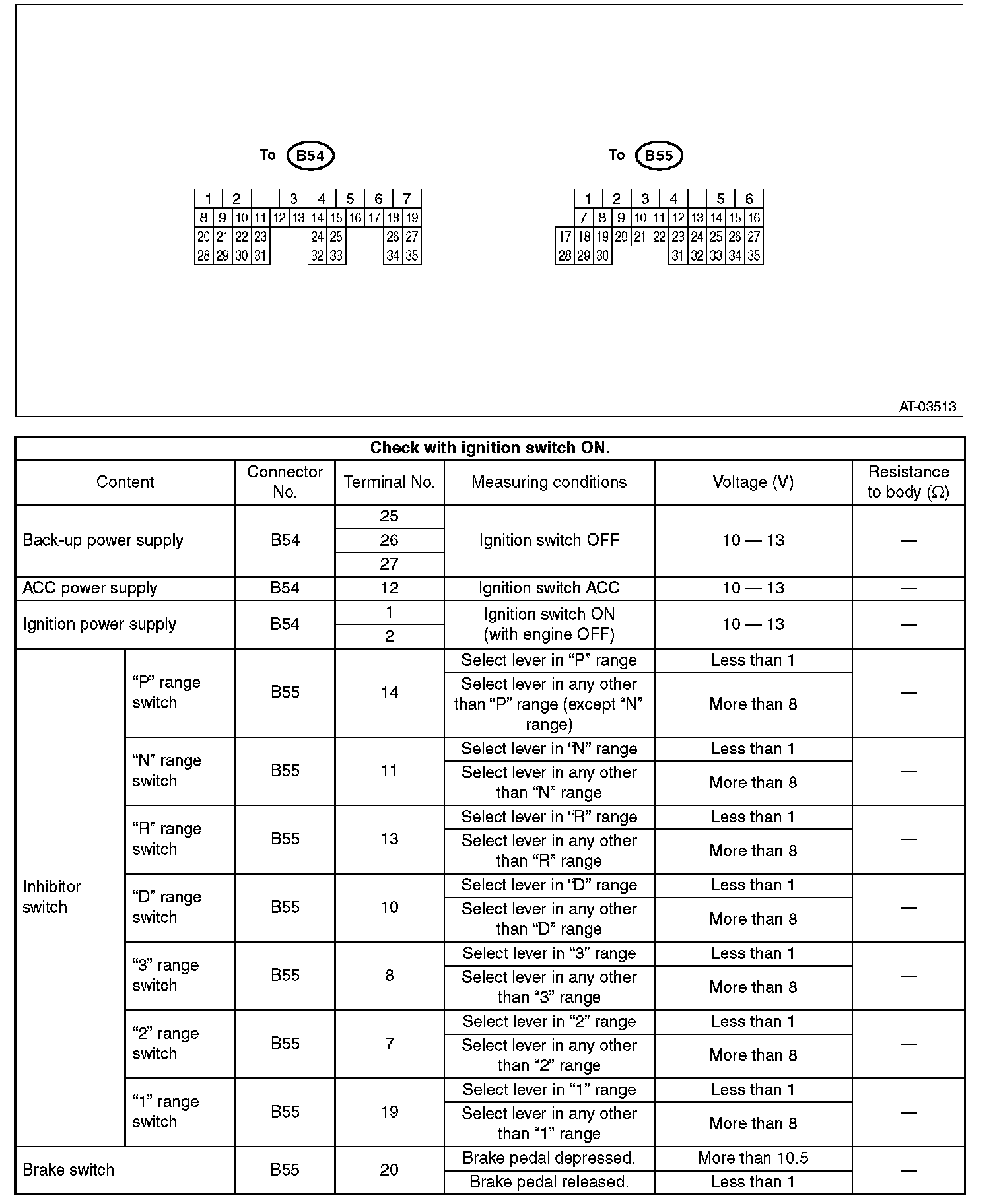

Transmission Control Module (TCM) I/O Signal 2:




Transmission Control Module (TCM) I/O Signal 3:
