Subaru
>>
2007
>>
Outback i, Automatic
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System (Abs) (Diagnostics)
>>
Control Module I/O Signal
>>
Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Control Module I/O Signal: Wiring Diagram

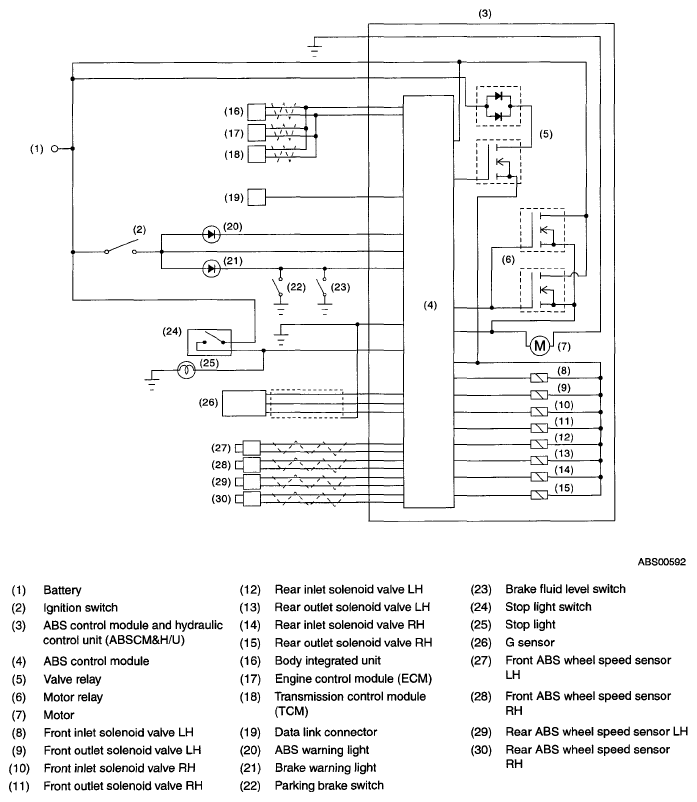

Fig 1: ABS Control Module - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
