Air Intake System

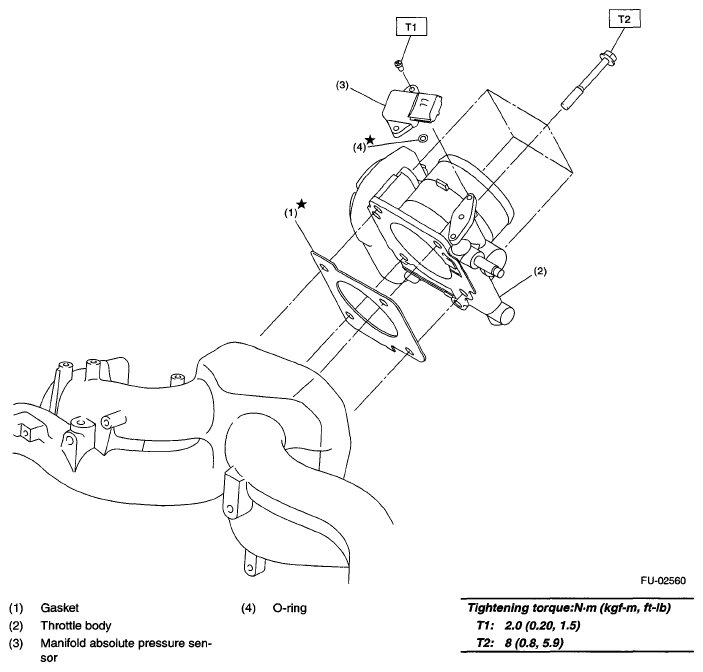

Fig 1: Air Intake System Replacement Components With Torque Specifications
G05339119Courtesy of SUBARU OF AMERICA, INC.
