Fuel Tank

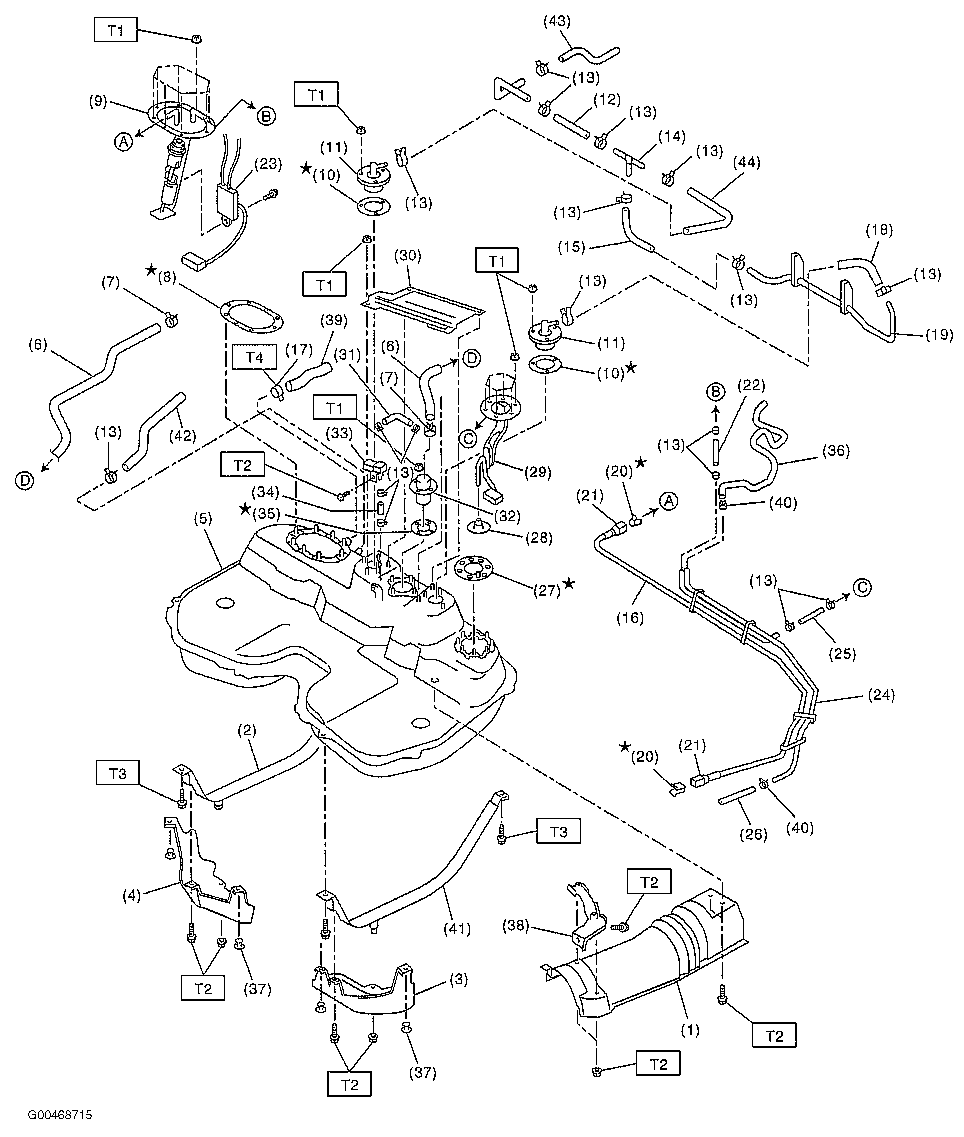

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Fuel Tank Replacement Components With Torque Specifications (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
