Front Bushing

Assemble in the reverse order of disassembly.

CAUTION: Install the front bushing in correct direction, as shown in the figure.

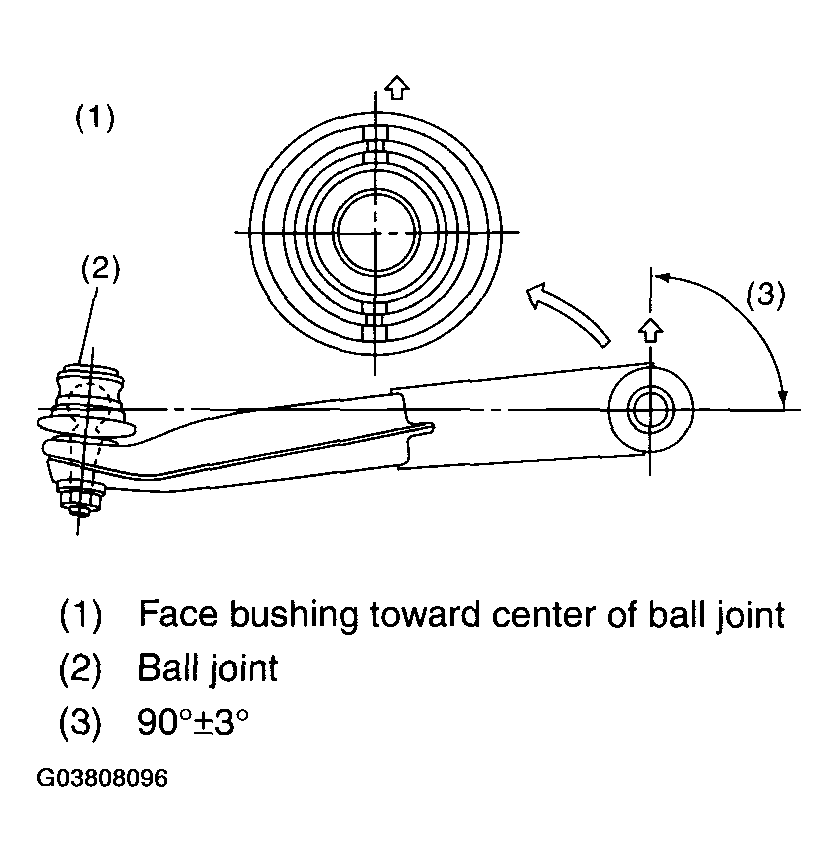

Fig 1: Identifying Correct Front Bushing Installation Direction
G03808096Courtesy of SUBARU OF AMERICA, INC.
