VTD Model

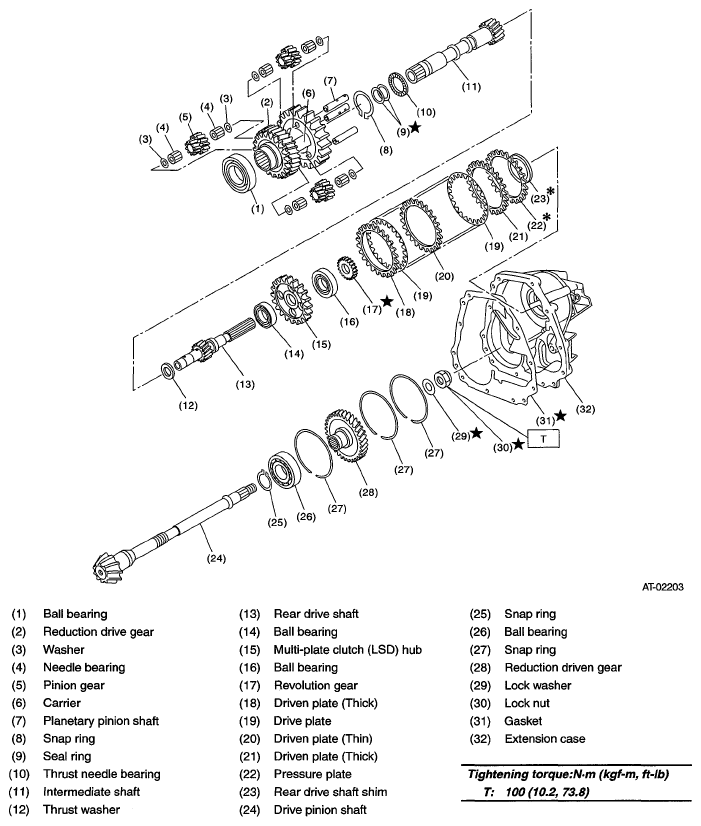

Fig 1: Identifying Reduction Gear Components With Torque Specifications (VTD MODEL)
G05657500Courtesy of SUBARU OF AMERICA, INC.
