Mp-T Model

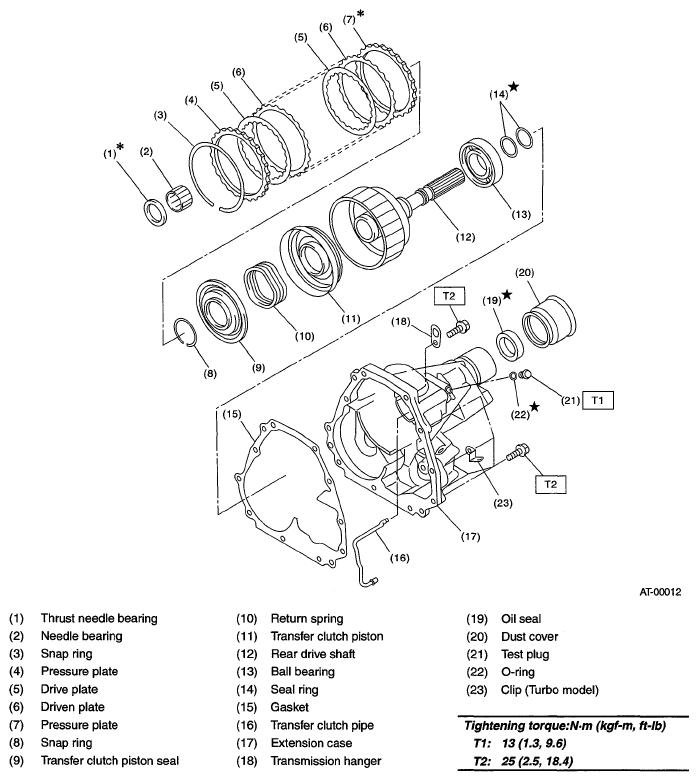

Fig 1: Identifying Transfer And Extension Case Components With Torque Specifications (MP-T MODEL)
G05657502Courtesy of SUBARU OF AMERICA, INC.
