Fuel Pipe

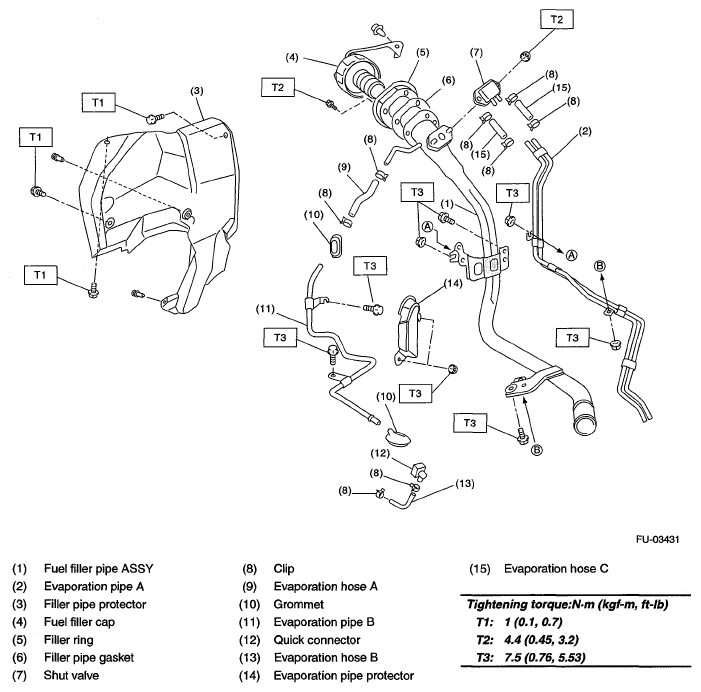

Fig 1: Fuel Pipe With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
