Fuse Index Information

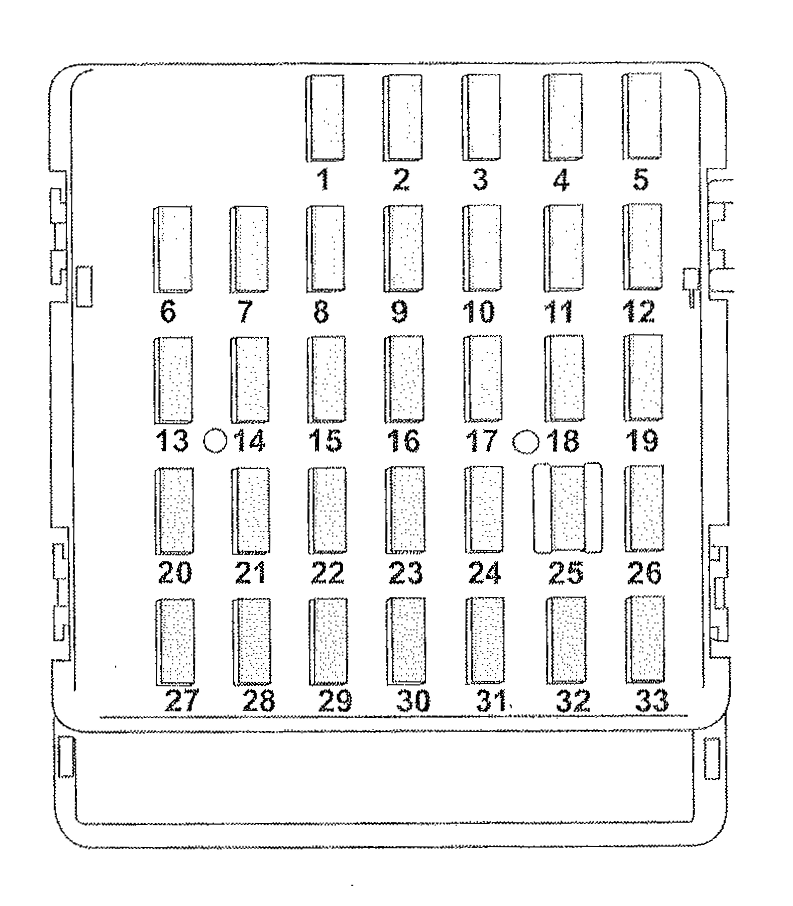

UNDER-DASH FUSE/RELAY BOX INDEX
| Fuse No. | Fuse Rating | Circuit |
|---|---|---|
| 1 | 20A | Cargo fan Trailer hitch connector |
| 2 | - | Empty |
| 3 | 15A | Door Locking |
| 4 | 15A | Front Wiper Deicer Relay Moonroof |
| 5 | 15A | Combination meter |
| 6 | 7.5A | Remote control rear view mirrors Seat heater relay Vanity mirror light |
| 7 | 15A | Combination meter Integrated unit |
| 8 | 20A | Stop lights |
| 9 | 20A | Front wiper deicer Mirror heater |
| 10 | 7.5A | Power supply (battery) |
| 11 | 7.5A | Clock Turn signal unit |
| 12 | 15A | Automatic transmission unit Engine control unit Integrated unit |
| 13 | 20A | Accessory power outlet (cargo socket) |
| 14 | 15A | Position lights Tail lights Rear combination lights |
| 15 | - | Empty |
| 16 | 10A | Illumination |
| 17 | 15A | Seat heaters |
| 18 | 10A | Back-up lights |
| 19 | 7.5A | Headlight right side relay |
| 20A | 10A | Cigarette lighter socket |
| 21 | 7.5A | Starter relay |
| 22 | 15A | Air conditioner Rear window defogger relay coil |
| 23 | 15A | Rear wiper Rear window washer |
| 24 | 15A | Audio unit Clock |
| 25 | 15A | SRS airbag system |
| 26 | 15A | Power window relay |
| 27 | 15A | Blower fan |
| 28 | 15A | Blower fan |
| 29 | 15A | Fog lights |
| 30 | 30A | Front wiper Front wiper washer |
| 31 | 7.5A | Auto air conditioner unit Integrated unit |
| 32 | 7.5A | Headlight left side relay |
