Headlight Assembly: Removal

WARNING: This page is about a different car, the 2007 Subaru Outback and 2007 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from the battery.
  2. Remove the air intake duct. (When removing the headlight RH).
    Fig 1: Locating Air Intake Duct
    G05022462Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the front grille. <Ref. to REMOVAL , REMOVAL, Front Grille .>
  4. Remove the front bumper. <Ref. to REMOVAL , REMOVAL, Front Bumper .>
  5. Disconnect harness connectors.
  6. Remove the 5 bolts, disengage 1 clip, then detach the headlight assembly.

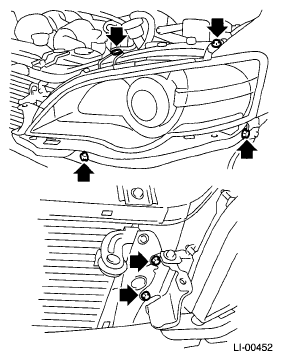

    Fig 2: Locating Headlight Assembly With Bolts And Clip
    G05022463Courtesy of SUBARU OF AMERICA, INC.
