At Model

WARNING: This page is about a different car, the 2007 Subaru Outback and 2007 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering shaft.
  2. Disconnect the connectors (stop light switch) from pedal bracket.
  3. Remove the clevis pin which secures lever to push rod.
  4. Remove the bolts and nuts which secure pedal bracket.

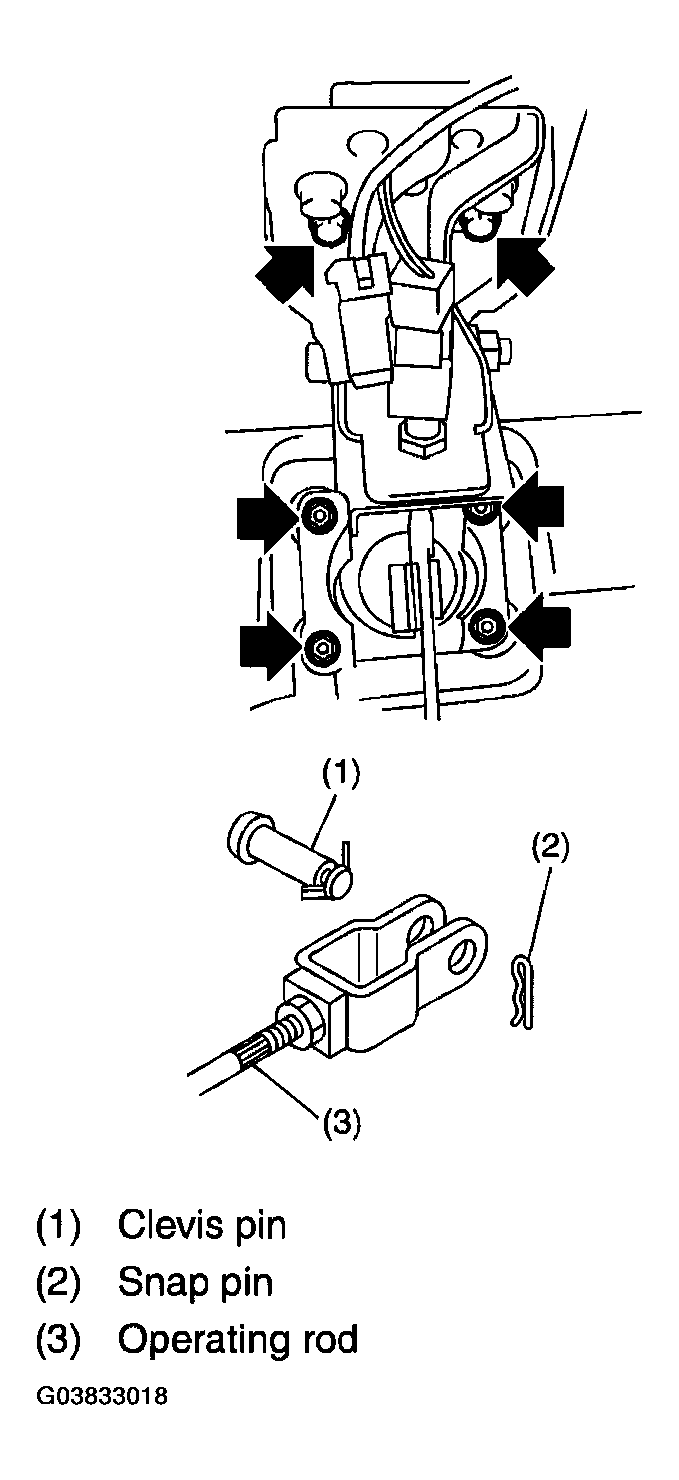

Fig 1: Removing Bolts And Nuts Securing Pedal Bracket (A/T)
G03833018Courtesy of SUBARU OF AMERICA, INC.
