With 15" Wheel

WARNING: This page is about a different car, the 2007 Subaru Outback and 2007 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean mud and foreign particles from the caliper body assembly and the support.
    CAUTION: Be careful not to allow foreign particles to enter the brake hose connector.
  2. Place a wooden block in caliper body as shown in Fig 1 to prevent piston from jumping out and avoid being damaged.
  3. Gradually supply compressed air via installation hole of brake hose to force the piston out.
    Fig 1: Supplying Compressed Air Via Brake Hose Installation Hole
    G03832965Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the piston boot.
    Fig 2: Removing Piston Boot
    G03832966Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the piston seal from caliper body cylinder.
    CAUTION: Do not damage the cylinder and piston seal groove.

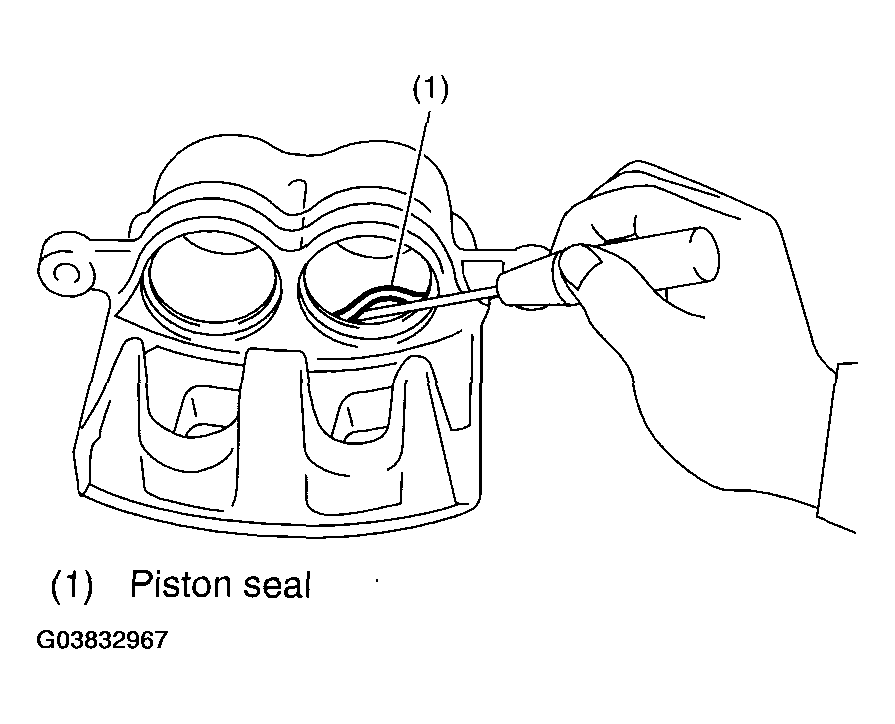

    Fig 3: Precaution For Removing Piston Seal
    G03832967Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the guide pin and boot from caliper body.
