With 17" Wheel

WARNING: This page is about a different car, the 2007 Subaru Outback and 2007 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Install the support on housing.
Tightening torque:

80 N.m (8.2kgf-m, 59 ft-lb)
Apply a thin coat of Molykote M7439 to pad clip.

Fig 1: Locating Molykote M7439 Applying Point (With 17" Wheel)
Courtesy of SUBARU OF AMERICA, INC.
Apply a thin coat of Molykote AS880N (Part No. K0777YA010) to the frictional portion between pad and inner shim.

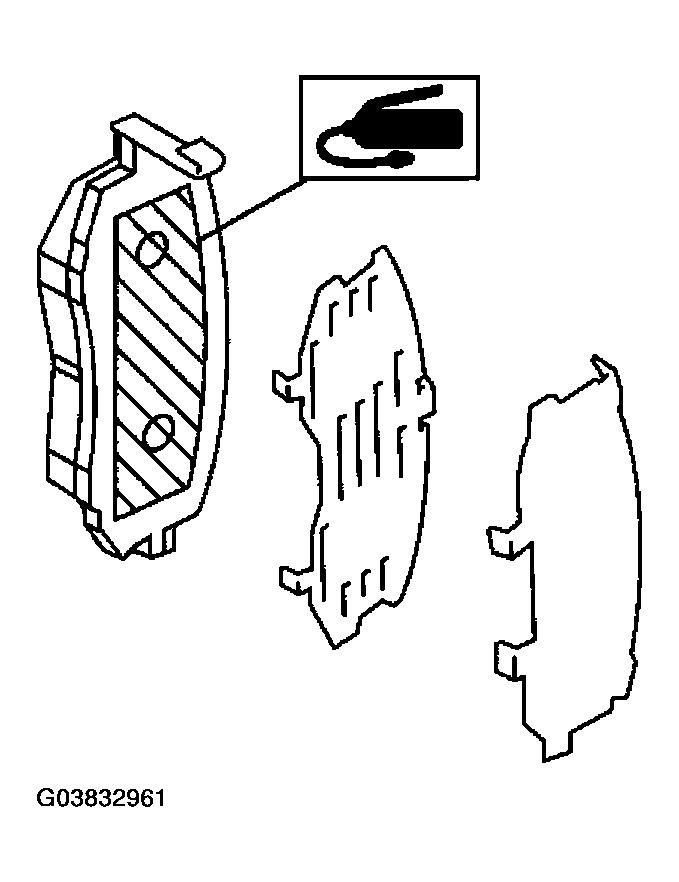

Fig 2: Locating Molykote AS880N Applying Point (1 Of 2) (With 17" Wheel)
Courtesy of SUBARU OF AMERICA, INC.
Apply a thin coat of Molykote AS880N (Part No. K0779YA010) to the three frictional portions between inner shim and outer shim of outer pads.

Fig 3: Locating Molykote AS880N Applying Point (2 Of 2) (With 17" Wheel)
Courtesy of SUBARU OF AMERICA, INC.
Install the pad on support.
NOTE: Install the pad indicator in proper direction.

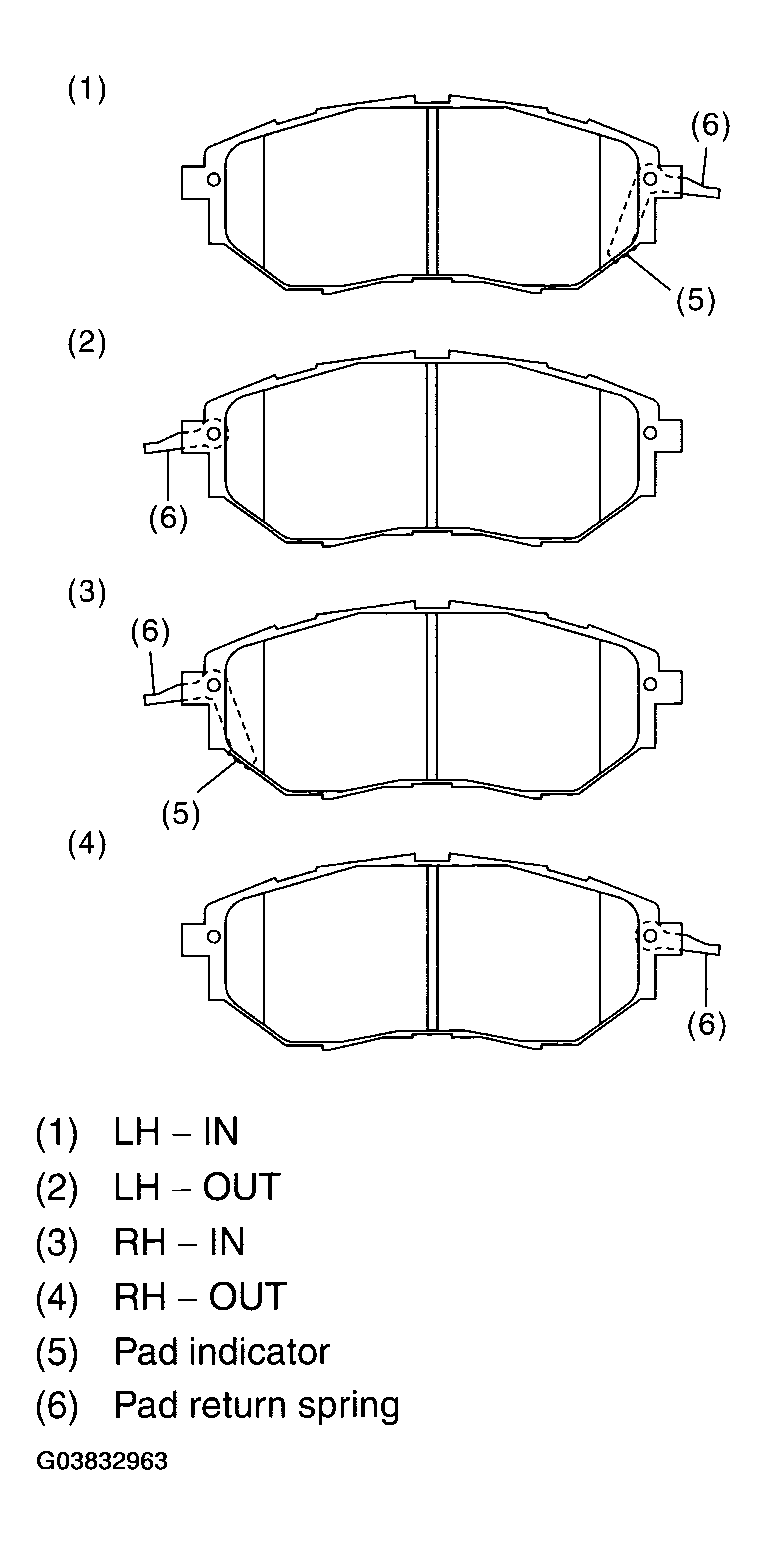

Fig 4: Identifying Brake Pad Indicator Installation Proper Direction
Courtesy of SUBARU OF AMERICA, INC.
CAUTION:
- Correctly install the pad return spring to supporting surface of pad clip as shown in Fig 5 .
- When the pad return spring is deformed or damaged, replace the brake pad with new one.

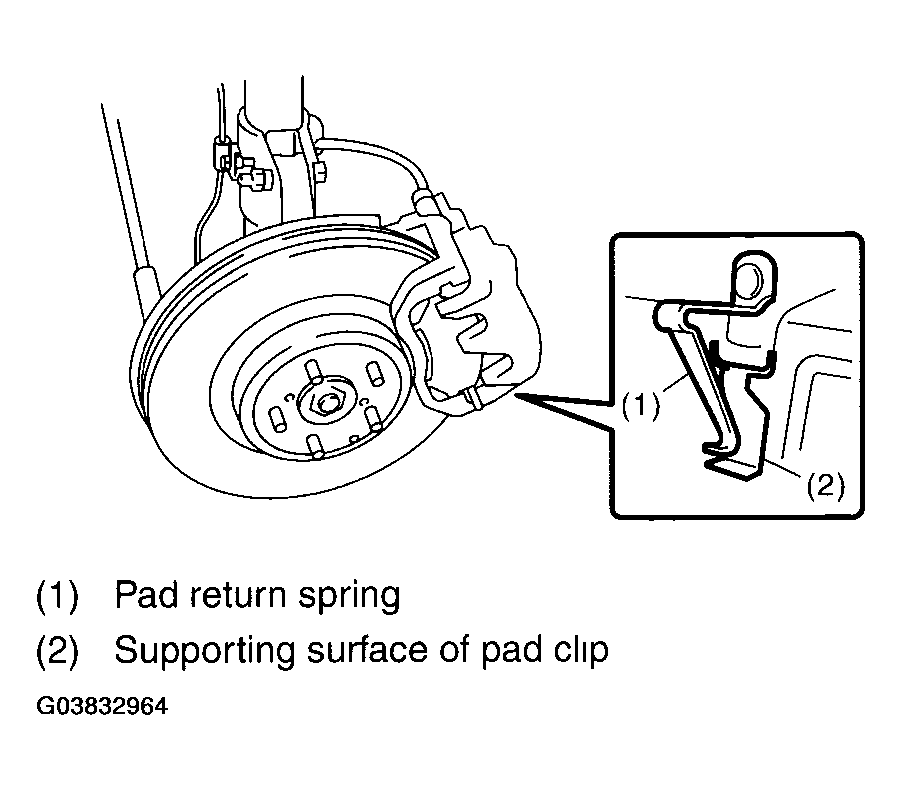

Fig 5: Installing Pad Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Install the caliper body on support.
Using new brake hose gaskets, connect the brake hose.
Tightening torque:

18 N.m (1.8 kgf-m, 13.0 ft-lb)
Bleed air from brake system.
