Combination Meter: Removal

WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Set the tilt steering at the lowest position.
  3. Remove the instrument panel lower cover. < Ref. to REMOVAL , Instrument Panel Lower Cover. >
  4. Remove the screws of the combination meter (one on the upper side, two on lower side) and pull while tilting the meter towards yourself.

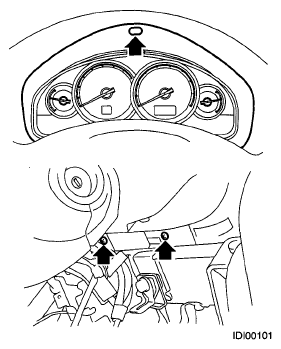

    Fig 1: Locating Combination Meter Screws
    G05022712
  5. Disconnect the connector in the rear side of combination meter to remove meter.
    CAUTION:
    • Be careful not to damage the meter or instrument panel.
    • Pay particular attention to avoid damaging the meter glass.
