Operating Cylinder

WARNING: This page is about a different car, the 2007 Subaru Outback and 2007 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

5MT non-turbo model

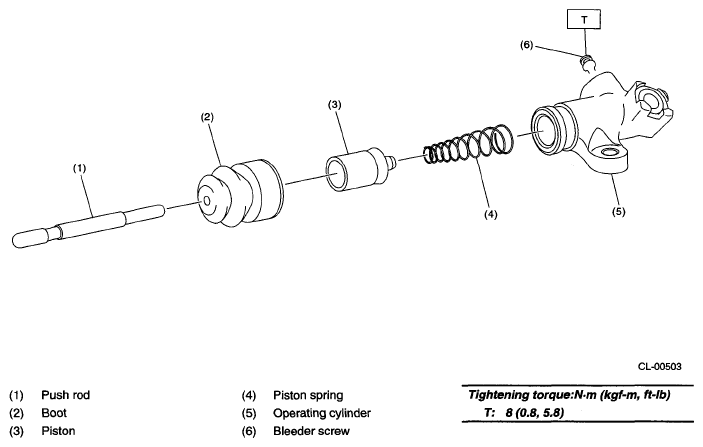

Fig 1: Operating Cylinder Replacement Components With Torque Specifications (5MT Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
5MT turbo model

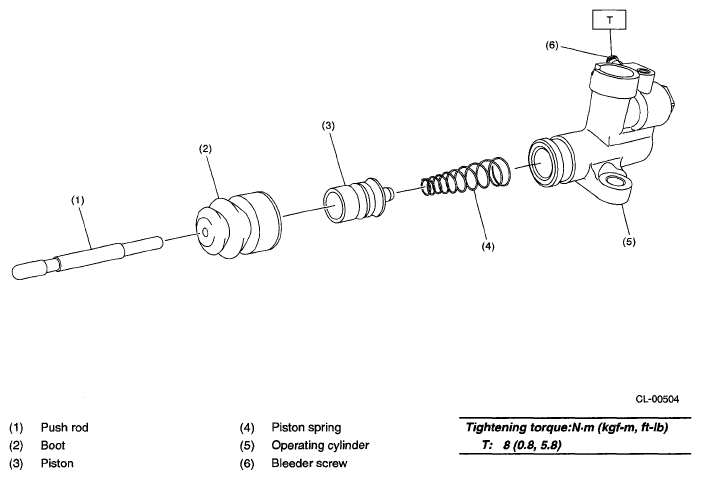

Fig 2: Operating Cylinder Replacement Components With Torque Specifications (5MT Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
