Propeller Shaft
WARNING: This page is about a different car, the 2007 Subaru Outback and 2007 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

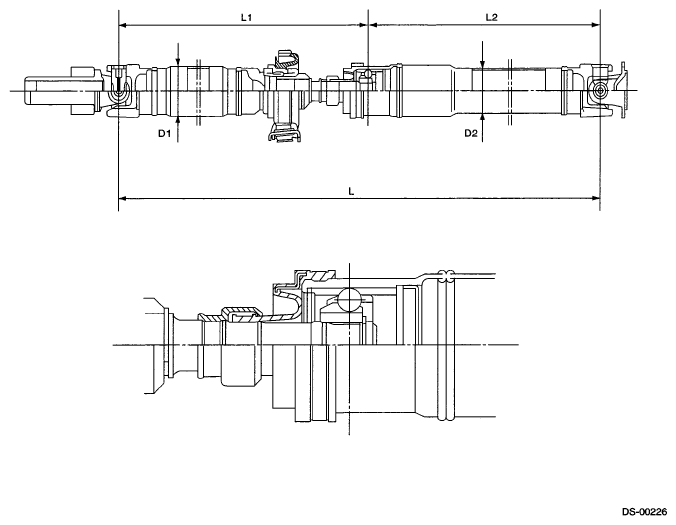

GENERAL SPECIFICATIONS
| Model | 5MT | 6MT | 4AT | 5AT | ||
|---|---|---|---|---|---|---|
| Propeller shaft type | EDJ | |||||
| Propeller shaft length: L | mm (in) | 1,483 (58.39) | 1,423 (56.02) | 1,423 (56.02) | 1,310 (51.57) | |
| Front propeller shaft Joint-to-joint length: L1 | mm (in) | 735 (28.9) | 675 (26.6) | 675 (26.6) | 562 (22.1) | |
| Rear propeller shaft Joint-to-Joint length: L2 | mm (in) | 748 (29.4) | ||||
| Outer diameter of tube: | mm (in) | D1 | 63.5 (2.50) | |||
| D2 | 57.5 (2.26) | |||||
