Combination Meter: Disassembly: Notes

WARNING: This page is about a different car, the 2007 Subaru Outback and 2007 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.
Be careful not to apply excessive force to the trip knob.
Be sure not to touch the meter indicator needle.

Disengage claw (A), and remove the meter glass assembly (B) and meter panel assembly (C) from the meter case assembly (D).

Except for meter with multi information

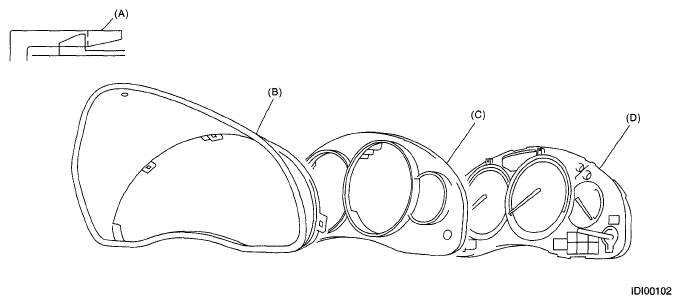

Fig 1: Identifying Claw, Meter Glass Assembly And Meter Panel Assembly From Meter Case Assembly
Courtesy of SUBARU OF AMERICA, INC.
Meter with multi information

Fig 2: Identifying Claw And Meter Glass Assembly From Meter Case Assembly
Courtesy of SUBARU OF AMERICA, INC.
