Master Cylinder

WARNING: This page is about a different variant/trim than selected.

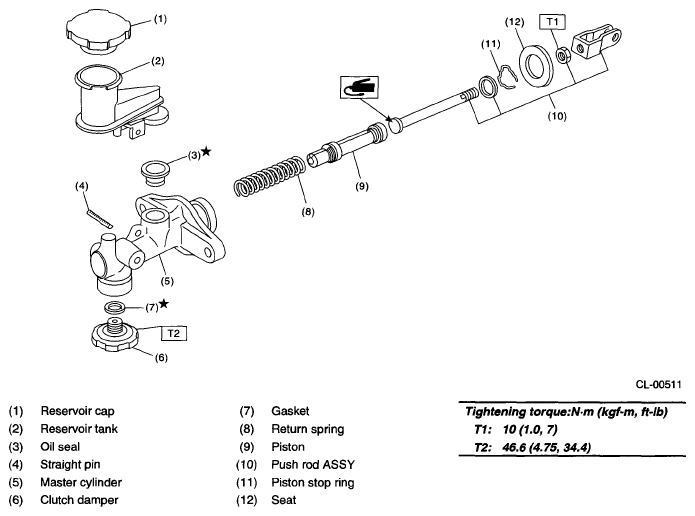

Fig 1: Master Cylinder Replacement Components With Torque Specifications
G05669699Courtesy of SUBARU OF AMERICA, INC.
