3.0 L Model

  1. Replace the belts if cracks, fraying or wear are found.
  2. Check that the V-belt automatic belt tensioner indicator (A) is within the range (D).

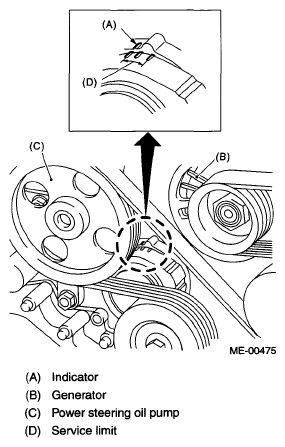

    Fig 1: Identifying V-Belt Automatic Belt Tensioner Indicator Range
    G05664857Courtesy of SUBARU OF AMERICA, INC.
