Torque Converter And Case

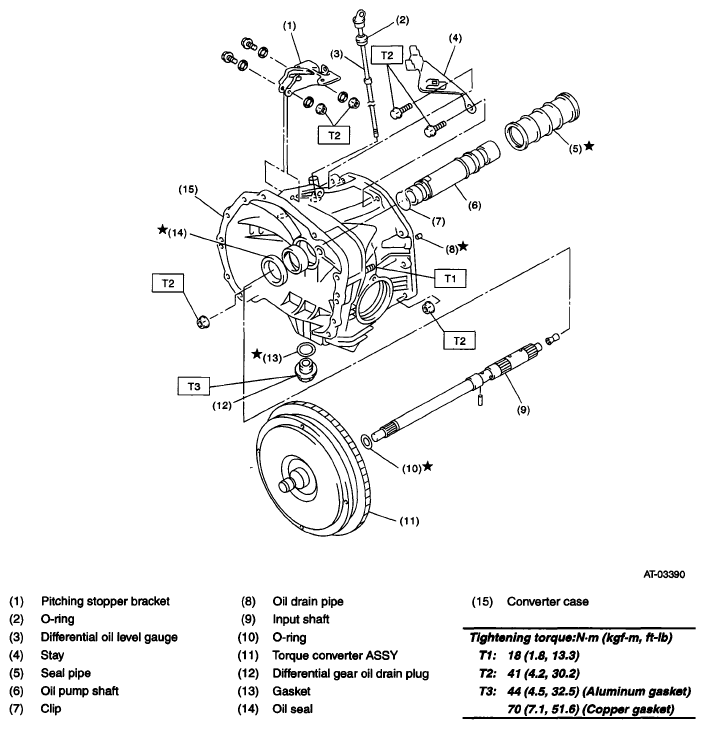

Fig 1: Torque Converter And Case Replacement Components With Torque Specifications
G05668187Courtesy of SUBARU OF AMERICA, INC.
