MP-T model

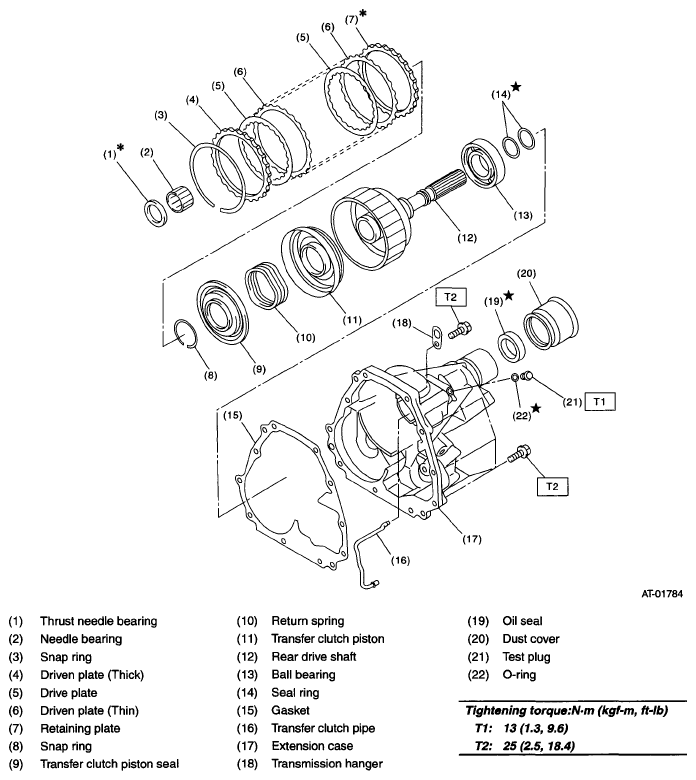

Fig 1: Transfer And Extension Case Replacement Components With Torque Specifications - MP-T Model
G05668197Courtesy of SUBARU OF AMERICA, INC.
