VTD model

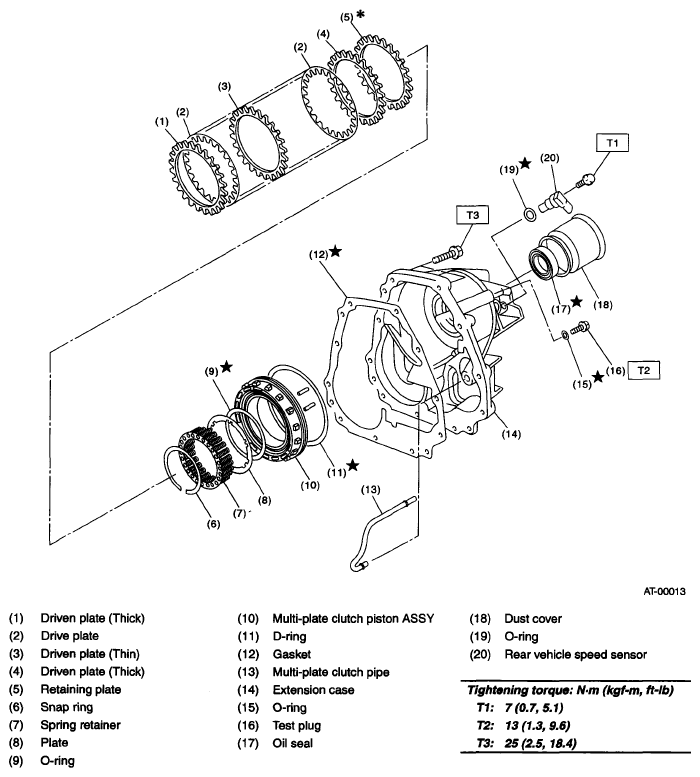

Fig 1: Transfer And Extension Case Replacement Components With Torque Specifications - VTD Model
G05668198Courtesy of SUBARU OF AMERICA, INC.
