AWD Transfer System: Construction

The transfer clutch drum and rear drive shaft are joined to each other by welding. The rear drive shaft is provided with oil passages for transfer clutch control.

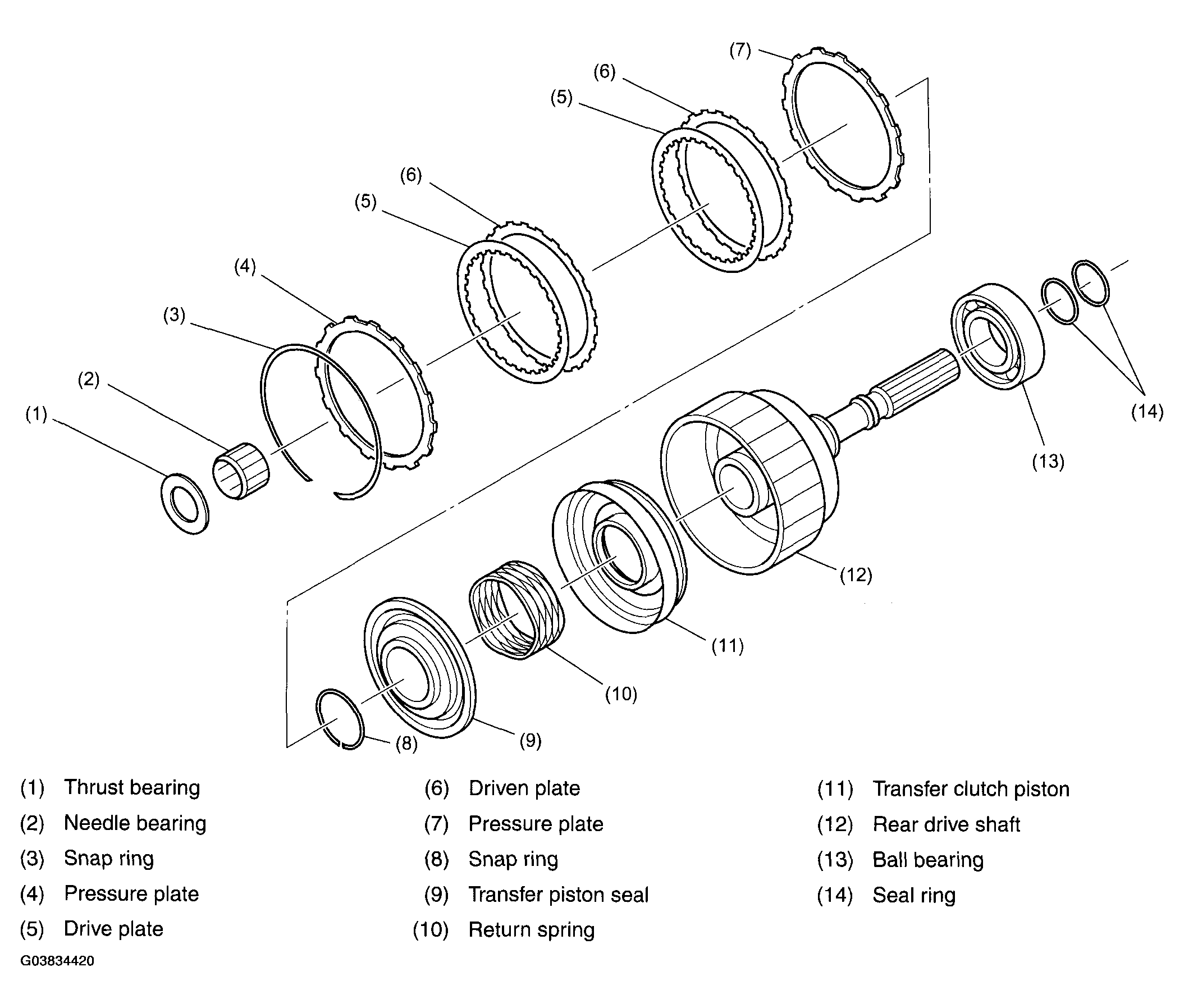

Fig 1: Exploded View Of AWD Transfer System
