Rear Vehicle Speed Sensor

This vehicle speed sensor (output shaft speed sensor) is a Hall element type sensor and is externally mounted on the extension case. It detects the rear drive shaft speed in terms of the peripheral speed of the transfer clutch drum and sends pulse signals (30 pulses per rotation) to the TCM.

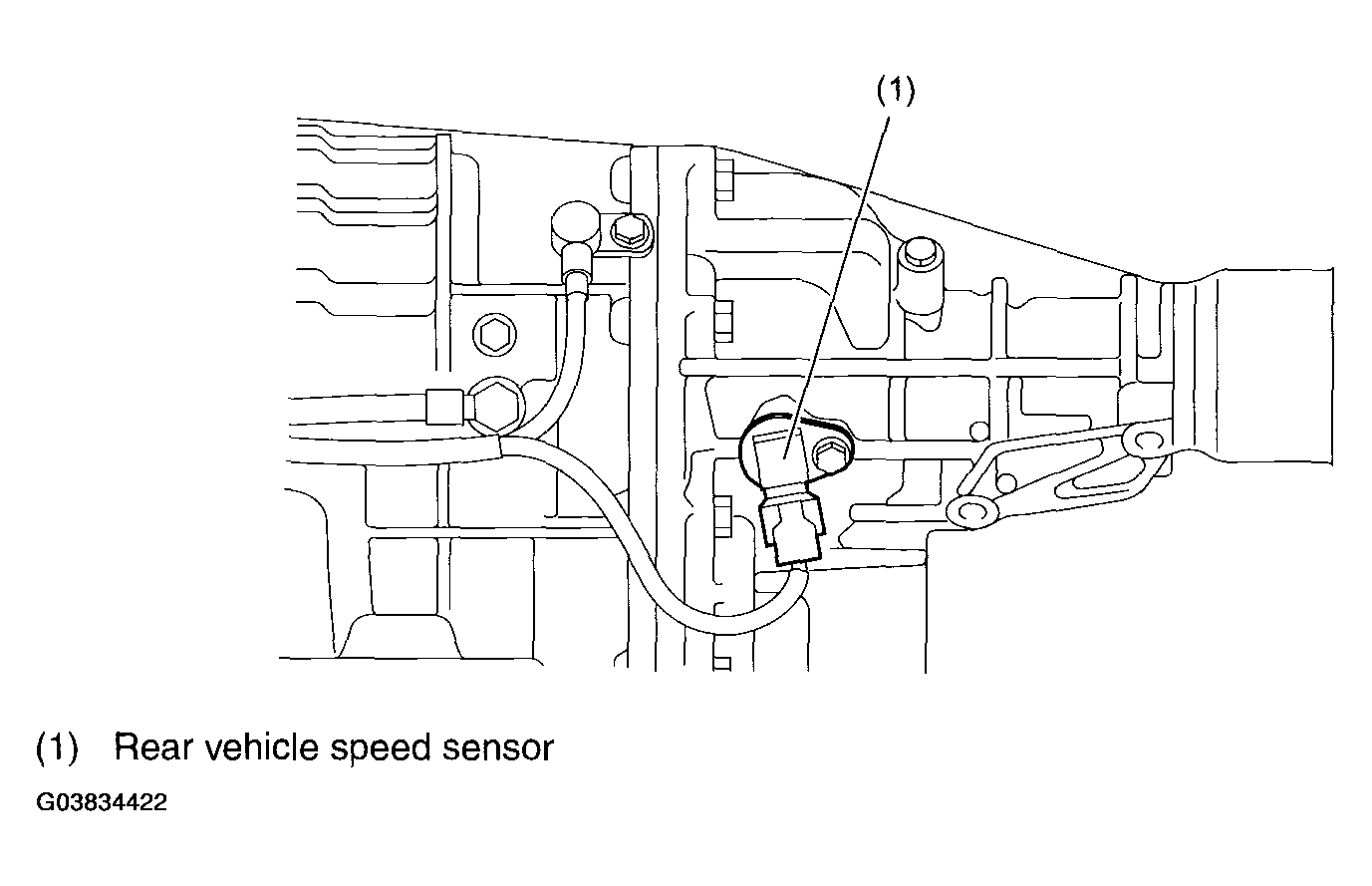

Fig 1: Identifying Rear Vehicle Speed Sensor

Courtesy of SUBARU OF AMERICA, INC.
