Schematic Diagram

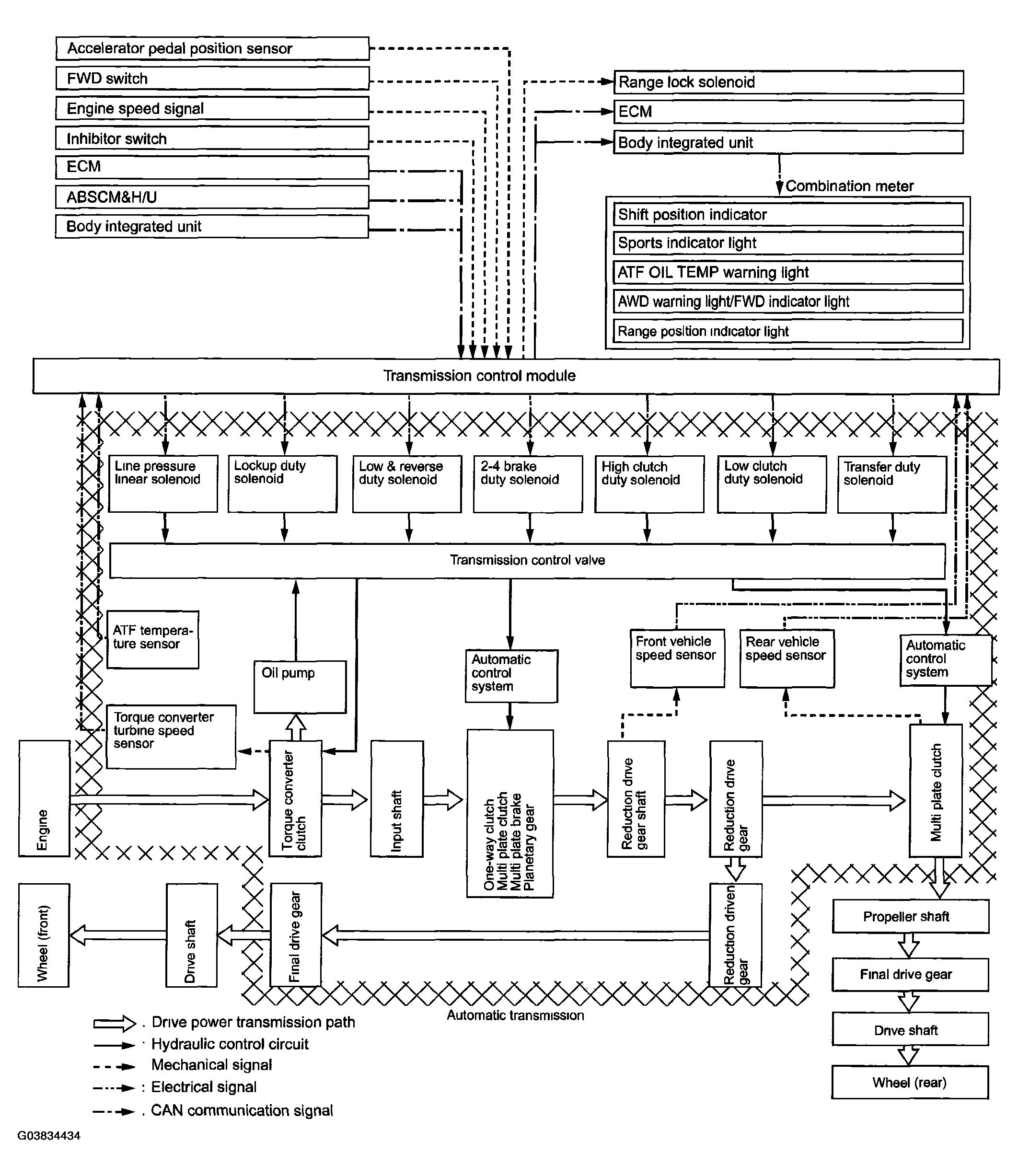

Fig 1: Schematic Diagram Of Transmission Control Module (TCM)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
