Cross Sectional View

WARNING: This page is about a different variant/trim than selected.

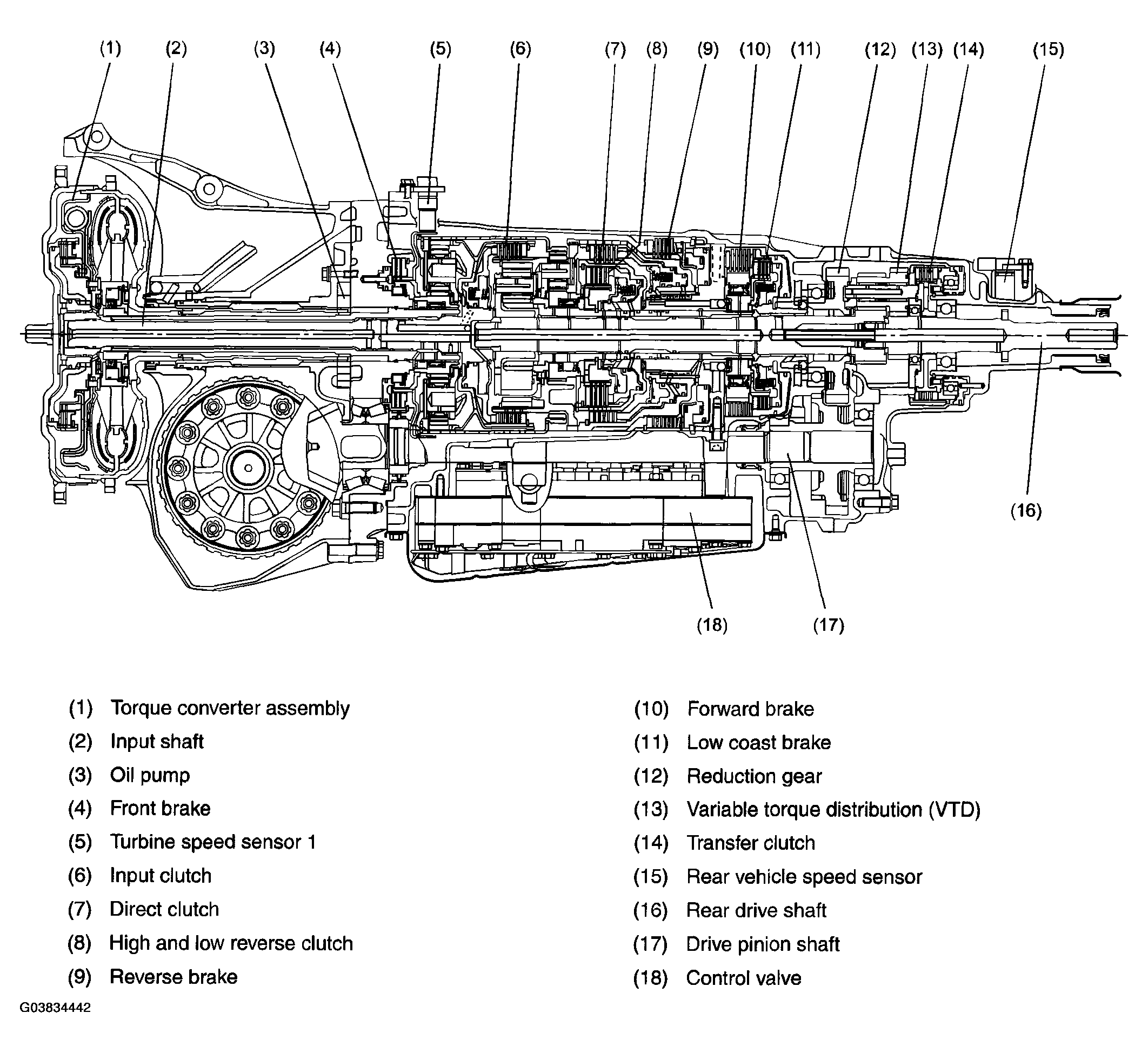

Fig 1: Cross Sectional View Of Automatic Transmission
G03834442Courtesy of SUBARU OF AMERICA, INC.
