Starter Motor: Testing and Inspection

STARTER MOTOR CIRCUIT

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode Clear Memory Mode and Inspection Mode

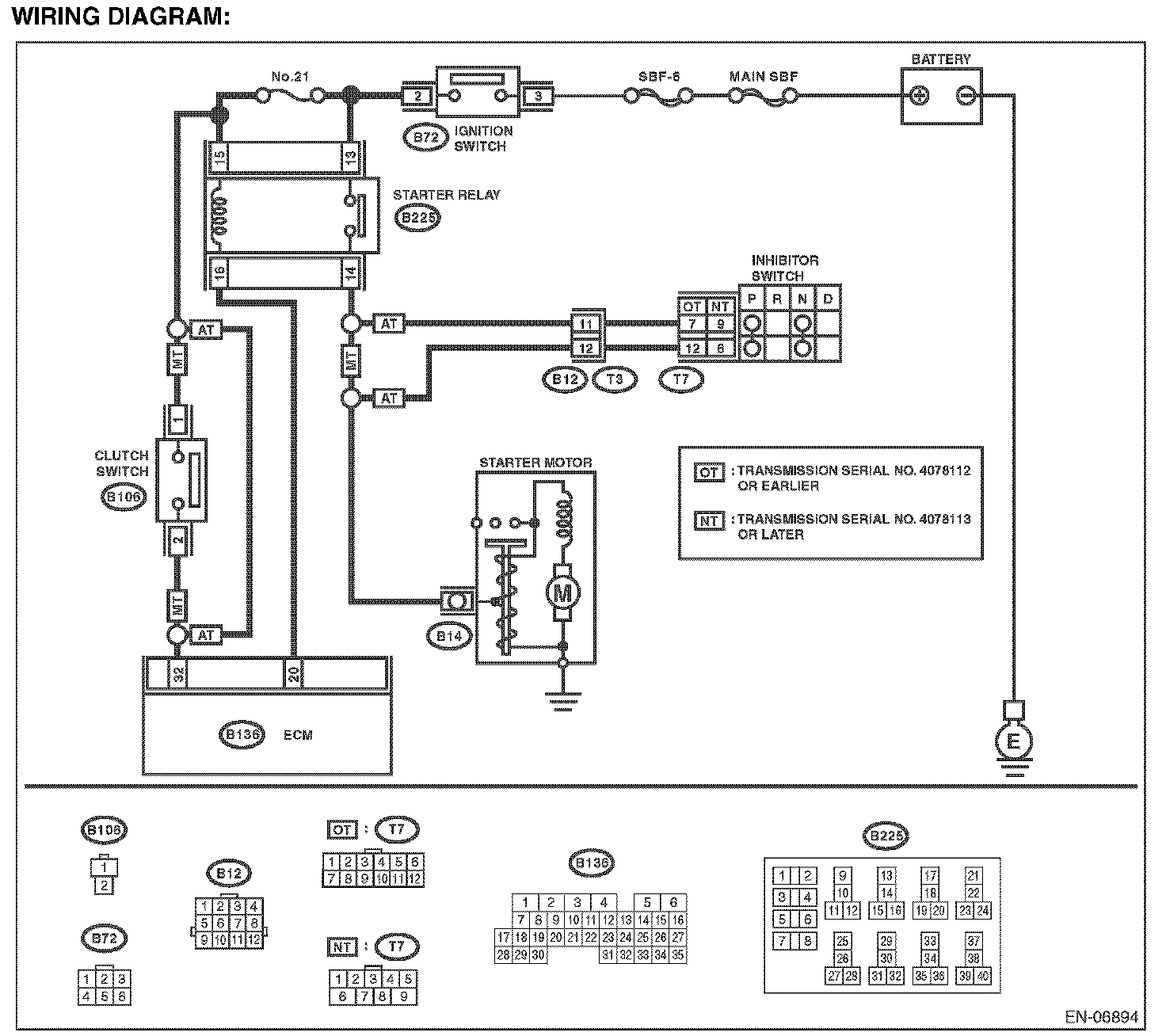

Wiring Diagram:

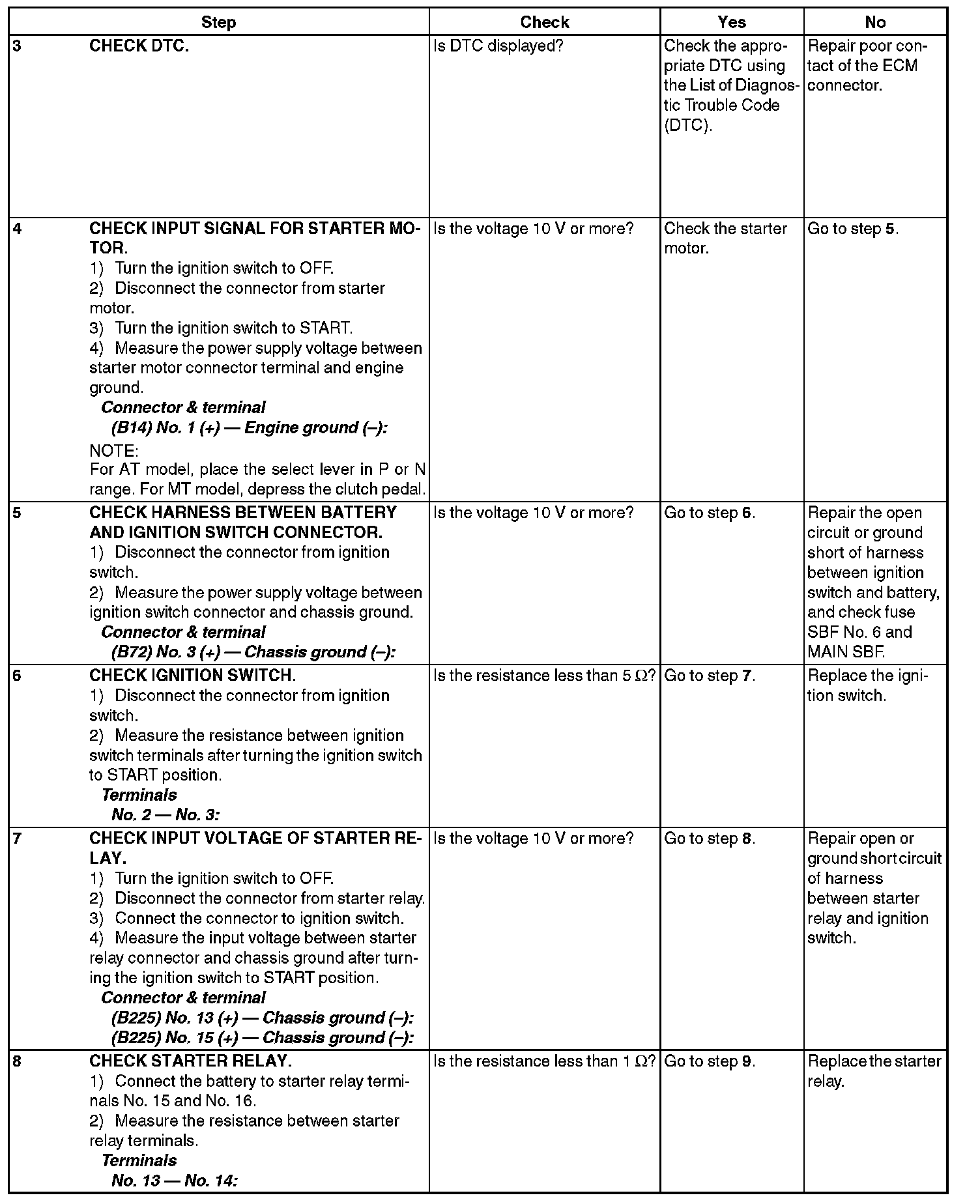

Step 1-2:




Step 3-8:

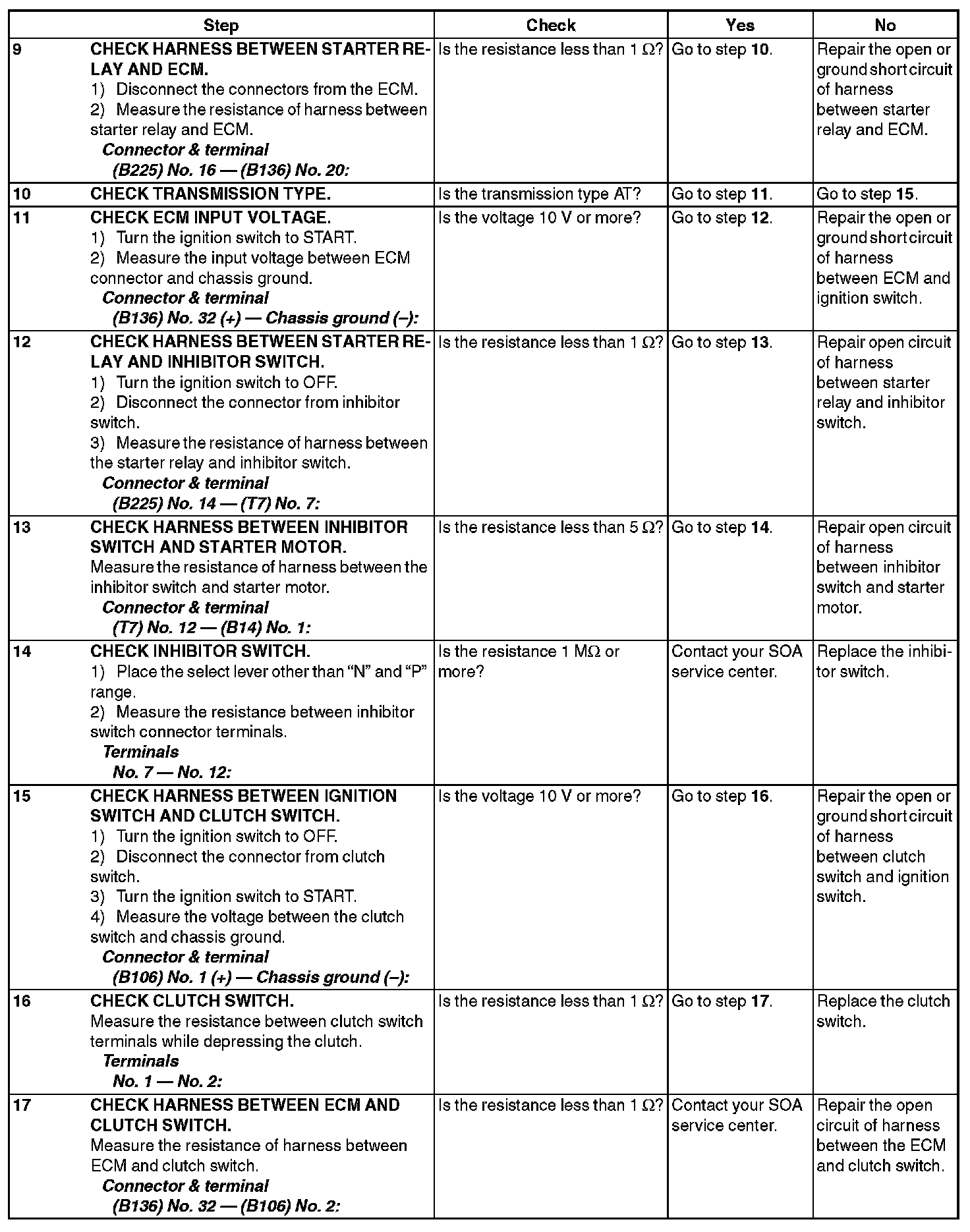

Step 9-17:
