Engine Controls - Engine (Diagnostics) (H4DOTC): Electrical Component Location: Location: Engine

Control module

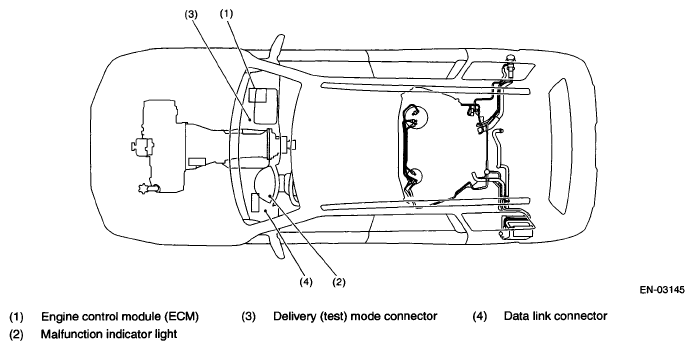

Fig 1: Identifying Engine Control Module Location (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

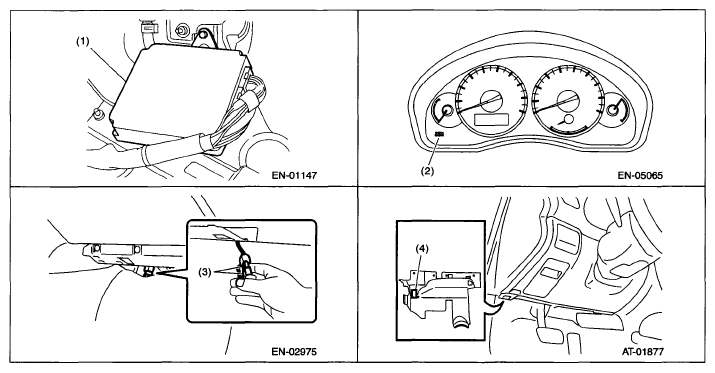

Fig 2: Identifying Engine Control Module Location (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

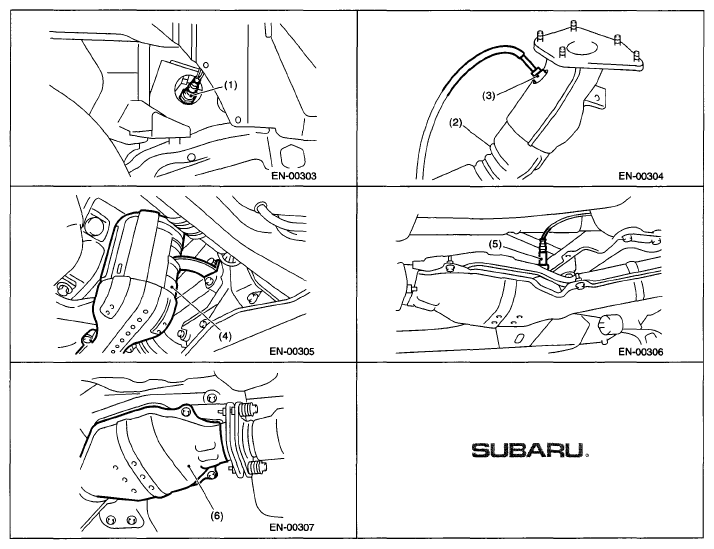

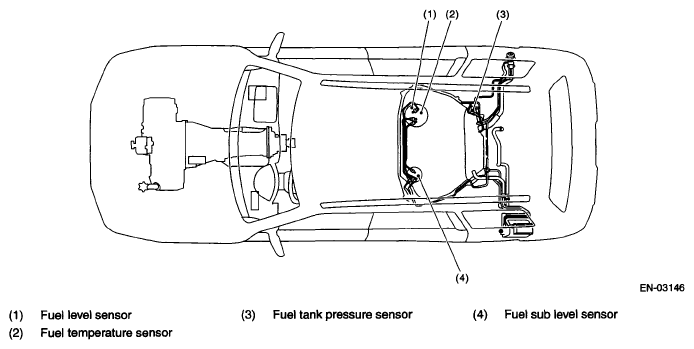

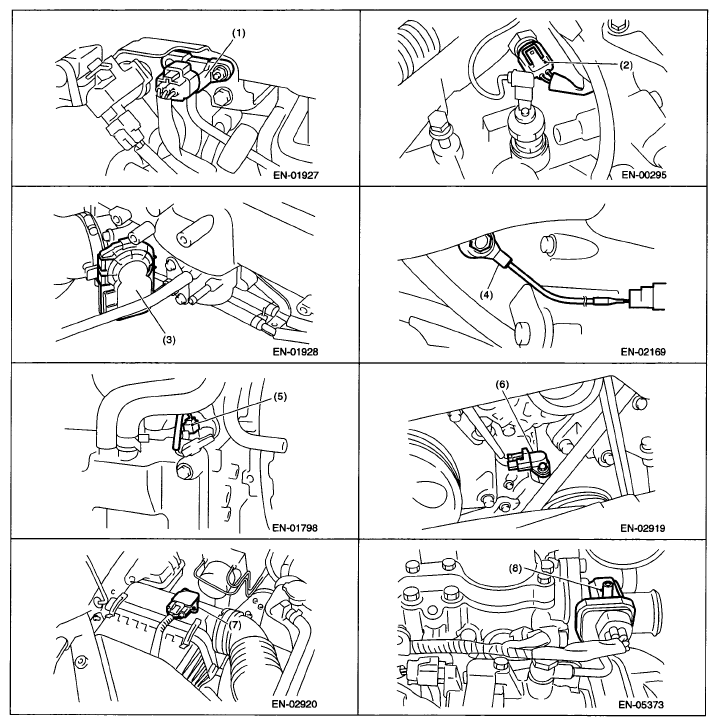

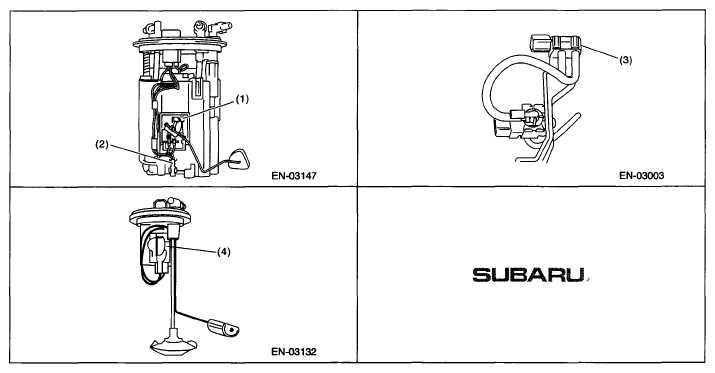

Sensor

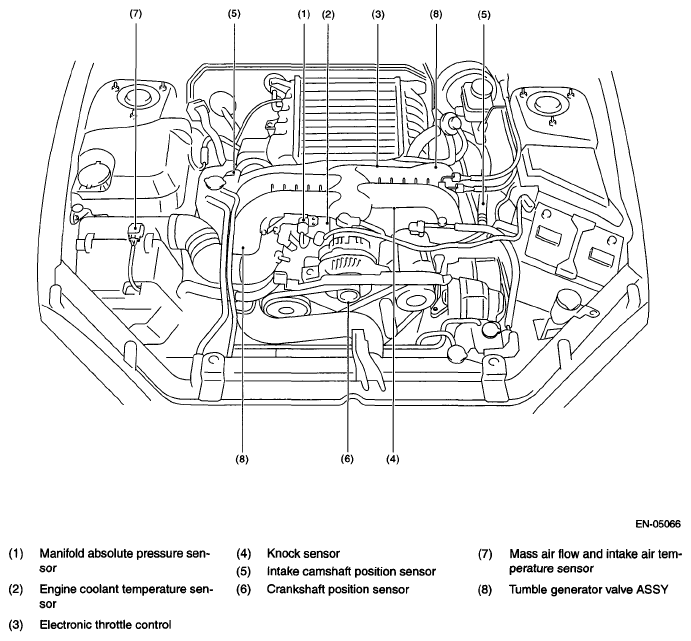

Fig 3: Identifying Engine Sensor Location (1 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

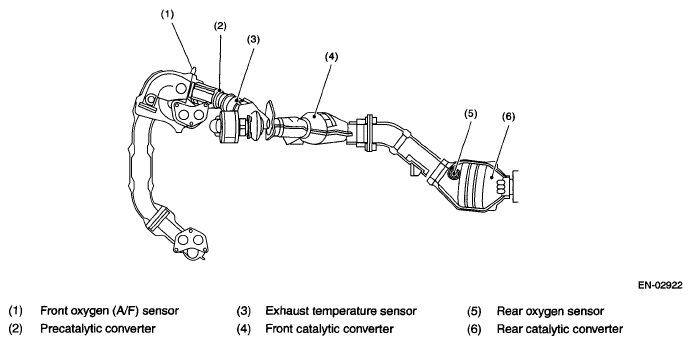

Fig 4: Identifying Engine Sensor Location (2 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Engine Sensor Location (3 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying Engine Sensor Location (4 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Identifying Engine Sensor Location (5 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Engine Sensor Location (6 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

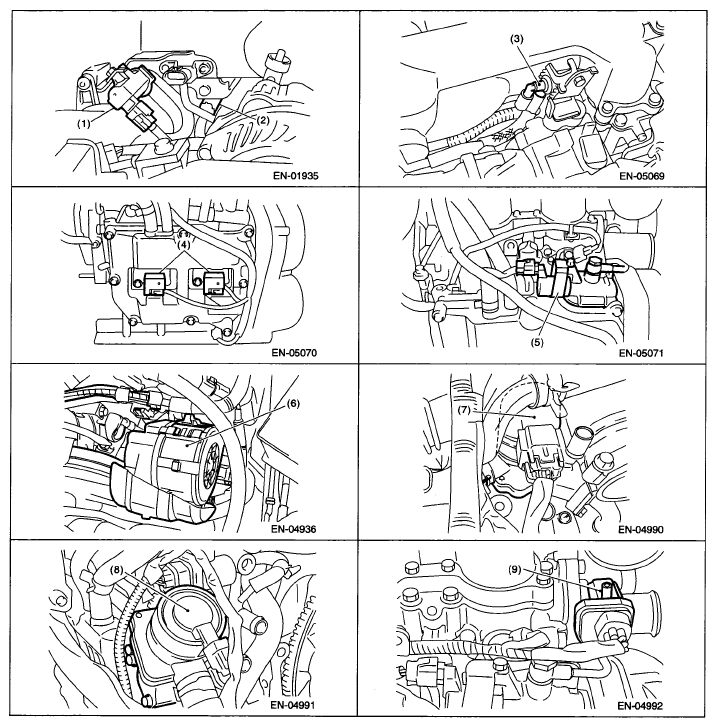

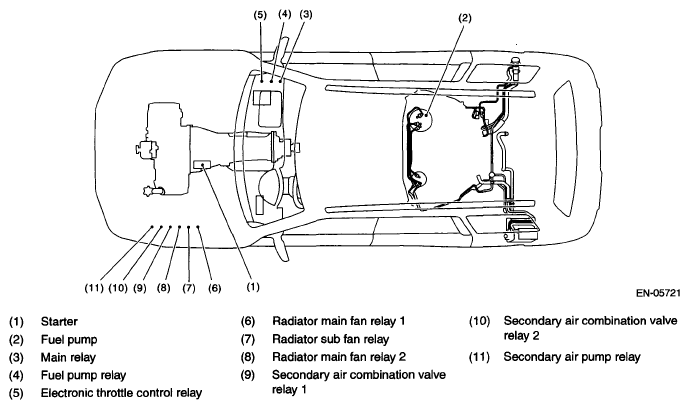

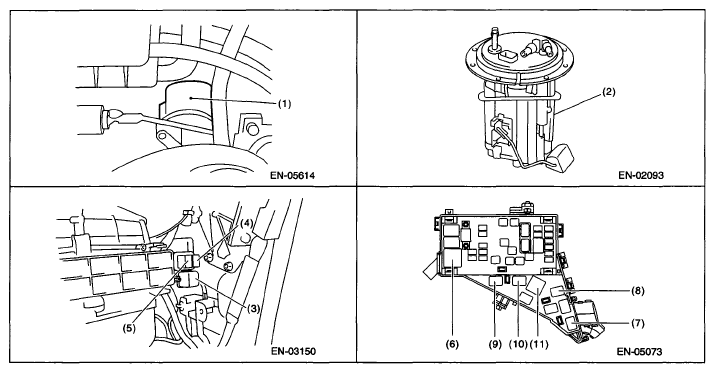

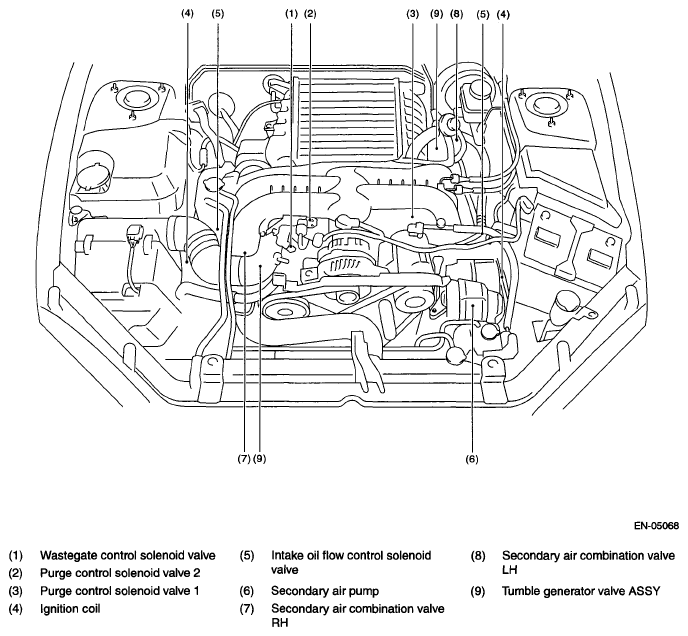

Solenoid valve, actuator, emission control system parts and ignition system parts

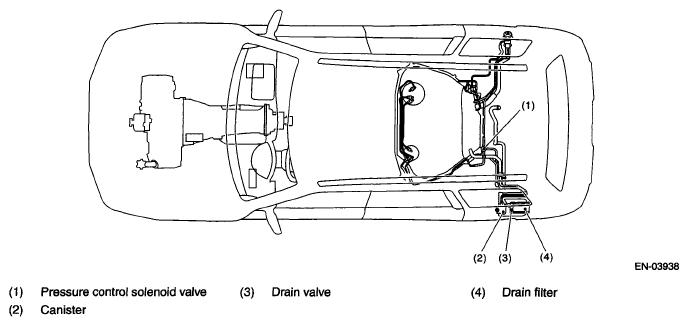

Fig 9: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Parts Locations (1 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Parts Locations (2 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Parts Locations (3 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 12: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Parts Locations (4 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 13: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Parts Locations (5 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 14: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Parts Locations (6 Of 6)
Courtesy of SUBARU OF AMERICA, INC.
