DTC P0133 O2 Sensor Circuit Slow Response (Bank 1 Sensor 1): Wiring Diagram

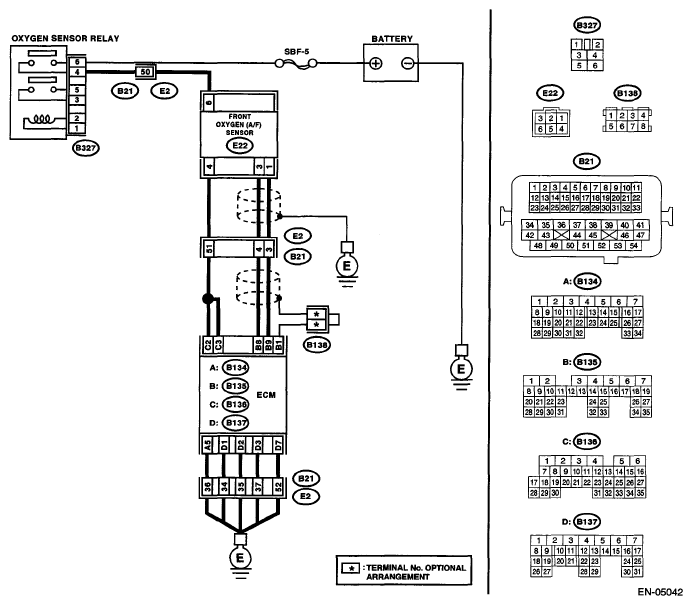

Fig 1: O2 Sensor Circuit Slow Response (Bank 1 Sensor 1) - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE CHART

Step	Check	Yes	No
1 CHECK EXHAUST SYSTEM. NOTE: Check the following items. Loose installation of front portion of exhaust pipe onto cylinder heads Loose connection between front exhaust pipe and front catalytic converter Damage of exhaust pipe resulting in a hole	Is there any fault in exhaust system?	Repair the exhaust system.	Replace the front oxygen (A/F) sensor. <Ref. to FRONT OXYGEN (A/F) SENSOR . >
